What voltage configurations does the CSS8004 support?

The 5-watt multi-tap transformer supports 100V, 70V, and 25V distributed loudspeaker lines without requiring separate impedance matching adapters. Maximum insertion loss is 1.5 dB.

Is this speaker suitable for high-fidelity music listening or studio monitoring?

No. The CSS8004 is optimized for speech intelligibility and efficient commercial paging and background music distribution. Its tone profile is speech-optimized with compact low end; it is not designed for studio monitoring or high-fidelity music listening.

How easy is installation in a drop ceiling?

Very straightforward. The speaker features a pre-assembled grille and transformer attached to the driver, and its 3.7-inch installation depth fits standard suspended ceiling cavities, minimizing on-site assembly and labor.

What coverage pattern does it provide?

A 175° coverage pattern ensures consistent sound distribution throughout typical room layouts, eliminating dead zones and excessive spillover in rectangular and open spaces.

What is the frequency response range?

85 Hz to 18 kHz, with 90 dB sensitivity for efficient output in distributed audio systems.

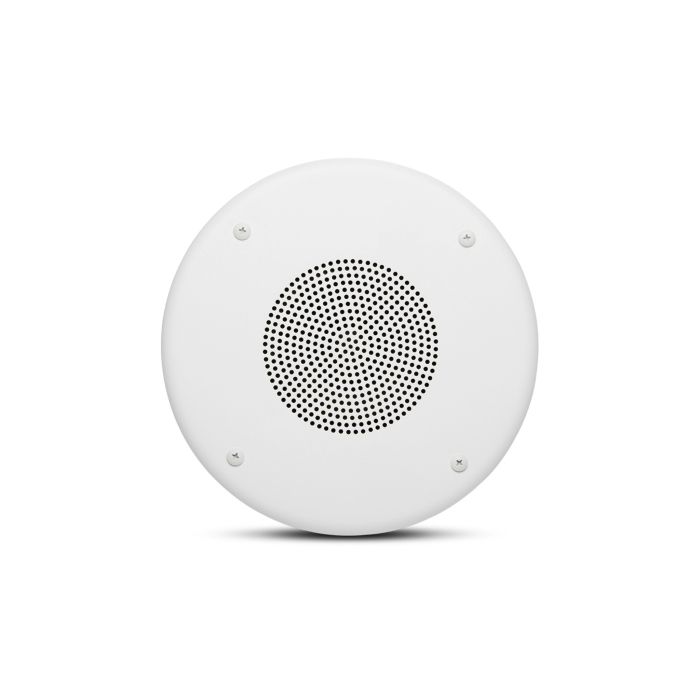

JBL CSS8004 4" Ceiling Speaker

The JBL CSS8004 is a compact ceiling-mounted speaker designed for distributed audio systems in commercial and institutional installations. Its flush-mount form factor and pre-assembled construction make it straightforward to integrate into drop-ceiling environments without requiring extensive on-site assembly or calibration.

Audio Performance

With a 4-inch dual-cone driver delivering 90 dB sensitivity and a frequency response spanning 85 Hz to 18 kHz, this speaker reproduces speech and music intelligibly across occupied spaces. The 175° coverage pattern ensures consistent sound distribution throughout typical room layouts without dead zones or excessive spillover.

Design & Build

The speaker features a 5-watt multi-tap transformer that accommodates 100V, 70V, and 25V distributed loudspeaker lines, eliminating the need for separate impedance matching hardware. Its zinc-plated, cold-rolled steel grille, 25 mm voice coil with Kapton coil-former, and 3.7-inch installation depth combine durability with low-profile ceiling integration, while the pre-assembled design minimizes field labor.

Key Features

4-inch (100 mm) dual-cone driver rated for continuous operation up to 15 watts
90 dB sensitivity for efficient output in distributed audio systems
5-watt multi-tap transformer with 1.5 dB maximum insertion loss
Supports 100V, 70V, and 25V line configurations without additional adapters
Frequency response: 85 Hz – 18 kHz
175° coverage pattern for even dispersion in rectangular and open spaces
25 mm voice coil with Kapton former and high-temperature wire for thermal stability
Zinc-plated, cold-rolled steel grille resists corrosion in humid or institutional environments
3.7-inch installation depth fits standard suspended ceiling cavities
Pre-assembled grille and transformer attached to driver for quick deployment
Lightweight 1 lb construction simplifies handling and ceiling mounting

The CSS8004 delivers reliable, cost-effective coverage for background music, paging, and foreground audio in offices, retail spaces, schools, and hospitality venues.
