JBL Control Hst 5.25" Wide Coverage On-wall Speaker, Blk

JBL Control HST 5.25" Wide Coverage On-Wall Speaker, Black

The JBL Control HST is a compact, high-output on-wall speaker engineered for recording studios and production spaces where wide monitoring coverage and consistent acoustic transparency are critical. Its horizontal splayed tweeter design and ceramic metal matrix woofer deliver articulate midrange and extended treble across a generous 180° horizontal pattern, making it ideal for overdub rooms, control rooms, and tracking spaces where strategic wall placement provides flexible monitoring solutions without consuming floor or console real estate.

Coverage & Acoustic Performance

The dual 0.75" horizontally-splayed tweeters and 5.25" CMMD woofer produce 88 dB sensitivity with a maximum SPL of 108 dB at 1 meter (peaks reaching 114 dB), delivering accurate speech and music reproduction across a 180° horizontal by 160° vertical coverage pattern. The 1.6 kHz crossover and 50 Hz to 20 kHz frequency response ensure smooth tonal balance without the coloration that compromises critical listening and mixing tasks.

Studio Integration & System Flexibility

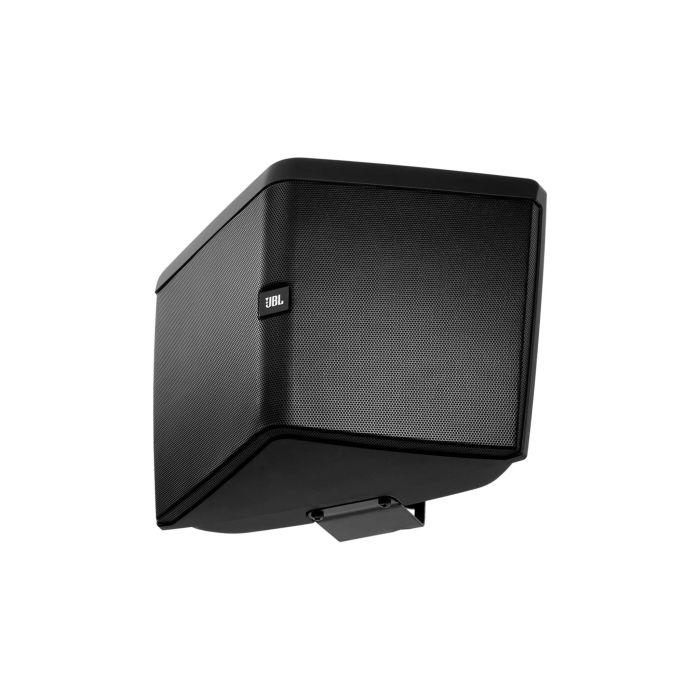

Built into a compact 362 x 256 x 184 mm ABS enclosure with an aluminum grille, the Control HST mounts securely to walls using the included color-matched U-bracket, freeing up console and floor space in compact session rooms. The integrated 60W transformer with 70/100V and 8-ohm configurations streamlines connection to multi-room monitoring matrices and larger tracking setups, while 100W power handling and removable locking euro-block connectors accommodate both standalone and networked studio installations.

Key Features

• 5.25" woofer with CMMD ceramic metal matrix diaphragm
• Dual 0.75" fluid-cooled tweeters, horizontally splayed
• 100W power handling capability
• Integrated 60W multi-tap transformer with 70/100V and 8-ohm system configurations
• 88 dB sensitivity (Ave. 80 Hz – 20 kHz)
• Maximum SPL 108 dB at 1m direct 8Ω (peaks 114 dB)
• Frequency response 50 Hz to 20 kHz (–10 dB)
• 180° H x 160° V coverage angle at 1–2 kHz
• 1.6 kHz crossover, 3rd order high-pass / 2nd order low-pass
• IP54 and Mil-Std-810 environmental ratings for water and humidity resistance
• Removable locking euro-block 4-pin connectors with screw-down terminals
• Includes color-matched wall-mounting U-bracket

The Control HST combines rugged construction, flexible system integration, and genuinely wide coverage to deliver reliable monitoring performance in professional recording and production environments.
