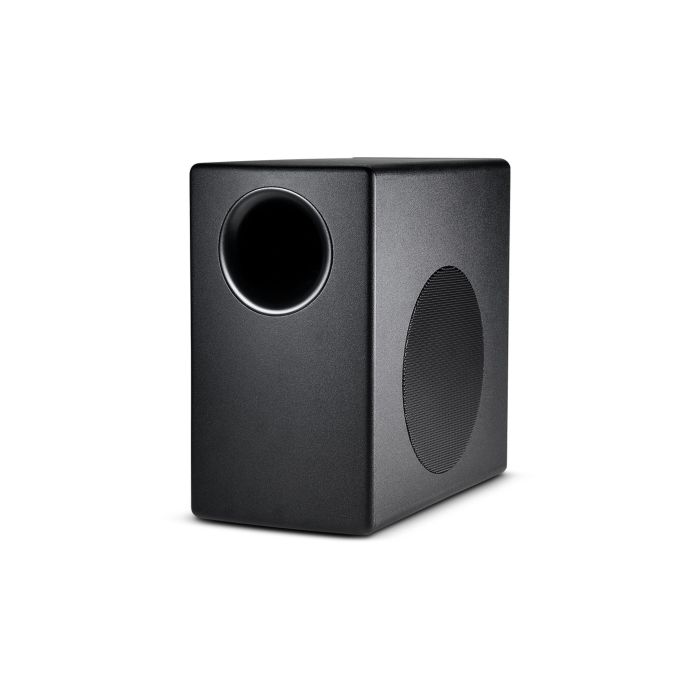

JBL Control 50S/T 8" Surface-mount Subwoofer, Blk

JBL Control 50S/T 8" Surface-mount Subwoofer, Black

The Control 50S/T is a compact, surface-mount subwoofer engineered to anchor low-frequency content in recording studios, post-production facilities, and project spaces. Its low-profile wall-bracket design and integrated crossover network integrate seamlessly into existing monitoring setups without requiring extensive acoustic treatment or room modifications, making it practical for tracking rooms, control rooms, and overdub spaces.

Recording & Monitoring Performance

This subwoofer delivers controlled low-frequency extension from 32 Hz to 20 kHz with a 200 mm (8 inch) high-power, long-excursion driver featuring a high-mass polypropylene cone and 4-layer copper voice coil. Peak output reaches 121 dB SPL near corner placement, providing sufficient headroom to translate bass detail, kick drum articulation, and sub-bass information across mix sessions in medium-sized studio environments.

Setup & Signal Flow

The included two-piece wall bracket system with zinc-plated, painted cold-rolled steel components and multi-point fastening simplifies mounting to standard drywall or finished surfaces. The built-in crossover network with four satellite output connectors and Loop Out connector enable seamless integration with JBL Control Series satellites or routing to downstream monitoring chains, while selectable 70V/100V distributed-line or low-impedance operation accommodates flexible studio wiring and hybrid monitoring topologies.

Key Features

• 150 Watts continuous, 600 Watts peak power; 300 Watts continuous program power (2 hrs)
• 200 mm (8 inch) high-power, long-excursion driver with high-mass polypropylene cone
• 38 mm (1.5 in) 4-layer copper voice coil with aluminum former and rubber half roll surround
• Full bandwidth 32 Hz – 20 kHz frequency response
• Nominal sensitivity 95 dB (near corner), 89 dB (center of wall)
• Rated maximum SPL: 115 dB average, 121 dB peak (near corner); 109 dB average, 115 dB peak (center of wall)
• Built-in crossover network with four satellite output connectors
• Loop Out connector for signal routing to additional loudspeakers or systems
• Selectable 70V/100V distributed-line or low-impedance operation
• Mono configuration
• Cabinet dimensions: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 inches)
• Two-piece easy-mount wall bracket with multi-point fastening and self-guiding speaker-mounted bracket

The Control 50S/T combines straightforward installation, flexible connectivity, and robust low-frequency performance in a compact form factor suited to studio monitoring and recording applications.
