JBL Control 447HC 6.5 IN PREMIUM HC CEILING SPKR

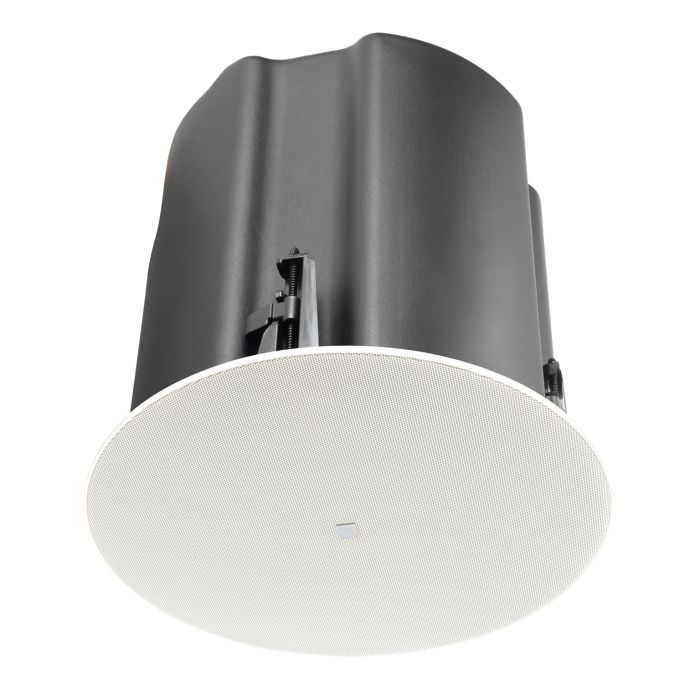

JBL Control 447HC 6.5" Premium High-Coaxial Ceiling Speaker

The Control 447HC is a professional-grade ceiling speaker engineered for even coverage and consistent intelligibility in recording studios, post-production facilities, and acoustically treated spaces. Its coaxial design integrates a 6.5" woofer and 1" tweeter into a compact form factor that mounts flush with standard ceiling dimensions, delivering controlled directional output across medium-to-large rooms without occupying visible real estate or interfering with studio geometry.

Acoustic Performance & Monitoring Accuracy

This speaker achieves 93 dB sensitivity with a rated maximum SPL of 113.5 dB continuous and 119.5 dB peak at 1 meter, enabling clean, detailed reproduction during tracking, overdubs, and mastering sessions. The 85° conical coverage angle and RBI™ (Radiation Boundary Integrator) technology ensure predictable, uniform sound dispersion that minimizes phase issues and dead zones, critical for accurate monitoring in ceiling-mounted or distributed studio configurations.

Flexible Integration into Studio Signal Chains

The speaker accommodates both 70V and 100V constant-voltage transformer taps (60W, 30W, 15W, and 7.5W options), eliminating the need for separate transformers and simplifying multi-room monitoring or satellite speaker setups. The zinc-plated C-ring, tile rails, and 307 mm cutout specification allow rapid installation into standard T-bar or drywall ceilings, while the paintable magnetic grille integrates seamlessly with studio finishes and acoustic treatments.

Key Features

• 6.5" (165mm) treated paper woofer with 1" (25mm) soft-dome tweeter
• Copper-clad aluminum voice coils and neodymium magnet assembly
• Conical RBI™ (Radiation Boundary Integrator) coaxial design
• Frequency Response (±3 dB): 72 Hz – 14 kHz
• Frequency Range (−10 dB): 55 Hz – 20 kHz
• 93 dB sensitivity; 113.5 dB SPL continuous / 119.5 dB peak
• 224 W continuous program power capacity (2 hrs.)
• 85° conical coverage angle for uniform dispersion
• 70V/100V transformer taps: 60W, 30W, 15W, 7.5W options
• 8Ω nominal impedance
• 351mm (H) × 342mm diameter; 307mm ceiling cutout
• UL 1480A and UL 2043 listed; IP33 rated per EN/IEC 60529

The Control 447HC combines JBL's coaxial engineering with practical installation features and voltage flexibility, making it a trusted choice for reference monitoring, multiroom tracking, and mixing applications in studios, production suites, and acoustically critical environments.
