JBL Control 321CT 12" Coaxial 2-WAY Ceiling Spk W Transformer
Description

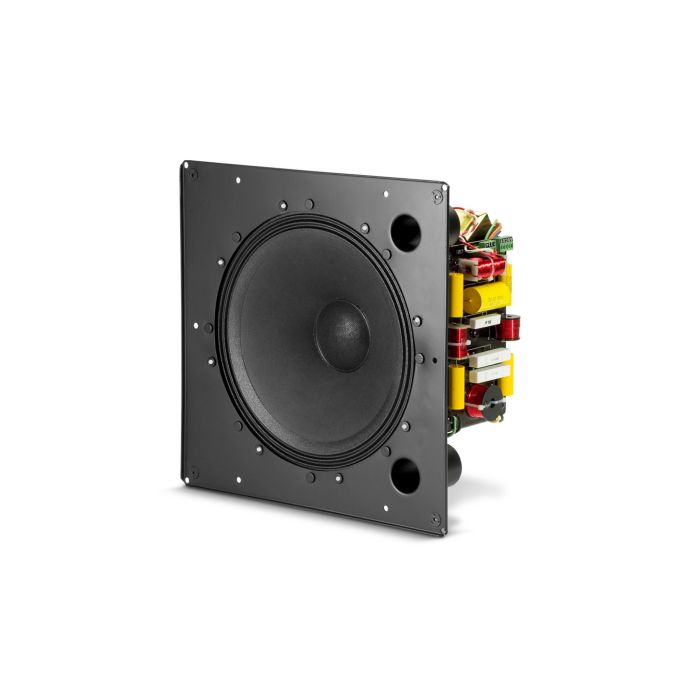

JBL Control 321CT 12" Coaxial 2-Way Ceiling Speaker with Transformer
The Control 321CT is a professional-grade coaxial ceiling speaker engineered for studio monitoring and production spaces where consistent coverage and clarity matter. Its compact 14.4" footprint mounts flush into standard ceiling cavities, delivering controlled dispersion across the room without acoustic coloration. Built for permanent installation in control rooms, mastering suites, post-production facilities, and collaborative studio environments, this speaker combines robust construction with straightforward 70V/100V amplifier compatibility for flexible gain staging and integration into existing studio infrastructure.
Sonic Character & Monitoring Capability
The dual-driver coaxial design pairs a 12" Kevlar-reinforced woofer with a titanium-diaphragm compression driver, tuned through a 1.8 kHz 3rd order crossover for seamless midrange integration that translates well across multiple playback systems. Frequency response extends from 47 Hz to 16 kHz (±3 dB), with maximum SPL reaching 118 dB at 1 meter—sufficient for critical listening and mix evaluation across medium to large control rooms. The 90° conical constant-directivity pattern ensures uniform tonal balance throughout the listening area, eliminating room nulls and acoustic anomalies that compromise mixing decisions.
Integration & Signal Flow
The integrated 70V/100V step-down transformer offers four selectable taps (68W, 34W, 17W, 8.5W), allowing precise level matching without external components—simply wire to the monitor amplifier and set the tap for your desired output. With 250W continuous power capacity and 1000W peak handling, the speaker accommodates both nearfield reference applications and larger studio monitoring setups. The metal baffle and ported enclosure design provide extended low-end response for mix translation while the pre-mounted driver assembly simplifies installation into the standard 378 x 378 mm (14.9 x 14.9 in) ceiling opening.
Key Features
- 12" Kevlar-reinforced low-frequency driver
- Titanium-diaphragm compression driver for high frequencies
- Frequency response ±3 dB: 47 Hz – 16 kHz
- Extended range (-10 dB): 34 Hz – 18 kHz
- Maximum SPL: 118 dB at 1 meter
- Power capacity: 250W long-term / 1000W peak
- 1.8 kHz 3rd order crossover with conjugate networks
- 90° conical constant-directivity coverage pattern
- Integrated 70V/100V transformer with four selectable taps (68W, 34W, 17W, 8.5W)
- Compact ceiling-mount form factor: 14.4" H x 14.4" W x 9.5" D
- Metal baffle with ported enclosure design
- Sensitivity: 94 dB (1 kHz - 16 kHz)
The Control 321CT delivers the reliability and acoustic precision expected in professional studio installations, backed by JBL's proven engineering for critical monitoring applications.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Control 321CT works as a reference or utility playback monitor in studio control rooms and tracking spaces where ceiling-mounted, line-source monitoring suits your workflow—its flat frequency response (47 Hz–16 kHz ±3 dB) and controlled dispersion eliminate acoustic surprises, and the 70V/100V transformer compatibility makes it ideal for routing through a studio amplifier or multi-zone system. Best suited for engineers and producers who need professional-grade accuracy in ceiling-mounted applications rather than desk or stand monitors.
Who This Is For
Great for
- ✓ Commercial installation
- ✓ Background music
- ✓ Speech intelligibility
- ✓ Office and retail environments
Not the best pick for
- – Live music performance
- – High-impact bass-heavy music
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What is 70V/100V transformer compatibility, and why does this speaker have it?
The integrated step-down transformer allows you to wire the speaker directly to a 70V or 100V line-level amplifier output without external equipment. Four selectable taps (68W, 34W, 17W, 8.5W) let you match the speaker's load to your amplifier's output, simplifying installation and level control across multiple ceiling speakers in commercial systems.
Will this speaker fit standard ceiling cavities?
Yes. The Control 321CT has a compact 14.4-inch footprint and mounts into the standard 378 x 378 mm (14.9 x 14.9 inch) ceiling opening with the pre-mounted driver assembly, simplifying installation into drywall or drop-ceiling grids.
Is this speaker suitable for live music performance or bass-heavy music?
No. The Control 321CT is engineered for commercial speech intelligibility and background music in offices and retail environments; it is not rated for live sound reinforcement or high-impact bass-heavy applications.
What's the maximum SPL, and can it cover a large space?
The speaker reaches 118 dB SPL at 1 meter with 250W continuous/1000W peak power capacity. The 90° conical constant-directivity pattern ensures uniform coverage across medium to large spaces without hot spots or dead zones.
What drivers does it use, and how do they work together?
A 12-inch Kevlar-reinforced woofer handles low and midrange frequencies, paired with a titanium-diaphragm compression driver for highs. A 1.8 kHz third-order crossover with conjugate networks blends them seamlessly, delivering balanced tone across the 47 Hz to 16 kHz frequency range.
