JBL Control 312CS 12" High Output In-ceiling Subwoofer

JBL Control 312CS 12" High Output In-ceiling Subwoofer

The Control 312CS is a purpose-built in-ceiling subwoofer engineered for studio and control-room environments where low-frequency extension and output capability are essential. Its compact footprint and high sensitivity make it practical for retrofit installations in existing spaces while delivering the bass response and SPL required for accurate monitoring and mixing in medium to large rooms.

Driver & Power Handling

A Kevlar-reinforced 300 mm (12 inch) woofer with 75 mm voice coil handles 400 Watts of power with a well-damped surround and extended excursion design that minimizes distortion across the bass spectrum. The high-temperature voice coil and saturated-gap magnet geometry ensure reliable performance during extended mixing and mastering sessions.

Output & Frequency Response

With sensitivity ratings of 99 dB (near corner) to 93 dB (ceiling center), this subwoofer achieves maximum SPL of 125 dB at 1 meter (131 dB peak), integrating effectively with studio monitor systems in medium to large control rooms. The frequency response of 34 Hz to 3.5 kHz (±3 dB) provides tight, articulate bass without masking midrange detail—critical for accurate mix translation and decision-making.

Key Features

• Kevlar-reinforced 12-inch subwoofer driver with 75 mm voice coil
• 400 Watts power handling with high sensitivity output
• Frequency response ±3 dB: 34 Hz – 3.5 kHz
• Extended frequency response (–10 dB): 30 Hz – 4.5 kHz
• Maximum SPL: 125 dB at 1 meter (131 dB peak, center of ceiling)
• Sensitivity: 99 dB in ceiling near corner, 93 dB in center of ceiling
• 8 ohm impedance

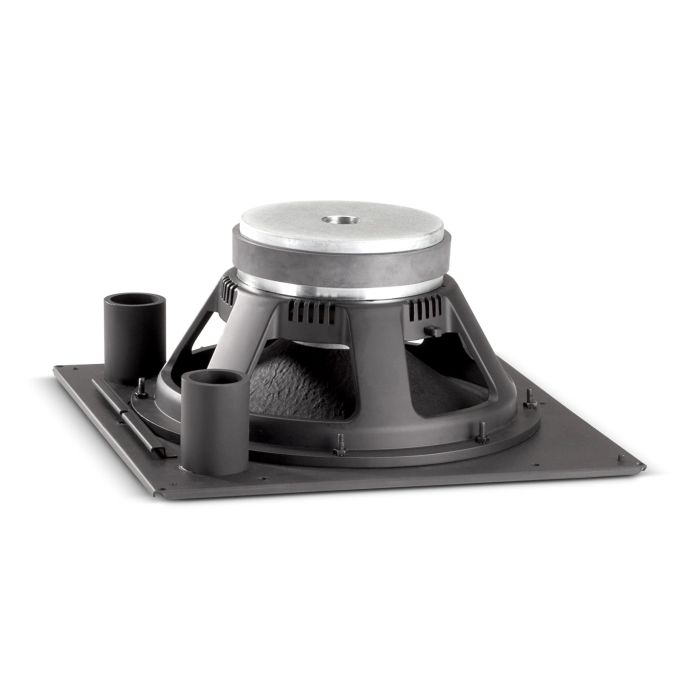

• 14.4" square ported metal baffle with pre-mounted driver
• 14.9" x 14.9" ceiling cutout size
• 6.3" installation depth
• Well-damped surround with extended excursion capability
• Screw locking barrier strip input connectors

The Control 312CS combines discreet in-ceiling integration with the output and low-frequency extension needed for professional recording and mixing, making it a reliable choice for studio monitoring systems where accurate bass reproduction cannot be compromised.
