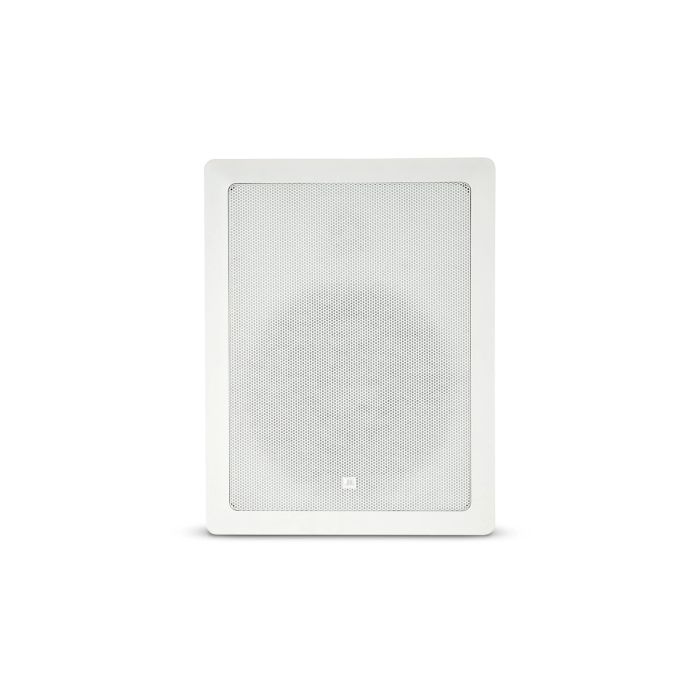

JBL Control 128W 8" In-wall Speaker

JBL Control 128W 8" In-Wall Speaker

The JBL Control 128W is a compact in-wall loudspeaker engineered for seamless integration into home studios and control room environments where space constraints demand a low-profile solution without compromising audio clarity. Its recessed mounting design and modest 4.3-inch depth allow installation into standard wall cavities, making it ideal for distributed monitoring systems, multi-room studio setups, and overhead or mid-wall placement in tracking or mixing spaces. The speaker delivers balanced midrange performance and controlled dispersion suitable for moderate-sized rooms and nearfield or mid-field listening applications.

Audio Performance & Coverage

The dual-driver configuration pairs a 200 mm (8 in) polymer-coated aluminum-cone woofer with a 25 mm pure-titanium dome tweeter and employs a 2nd order high-slope crossover that ensures natural midrange transition and clean separation across the frequency spectrum. Coverage of 180°H x 160°V provides wide horizontal dispersion with the aimable titanium tweeter, allowing vertical angle adjustment for optimal listening zones; the 30 Hz–20 kHz frequency response and 120W program power capacity (240W peak) deliver sufficient output for accurate monitoring and reference listening in rooms up to moderate size. The extended low-end reach supports clarity in bass-critical mixing and tracking scenarios.

Installation & Technical Specifications

Designed for recessed mounting, the speaker requires an optimum air cavity of 40–80 liters (1.4–2.8 cu ft) behind the wall surface and measures 334 x 257 x 110 mm with a 102 mm front-to-back depth, allowing fit within standard wall frames. Connection is made via Euroblock-type screw-down terminals accepting wire up to 14 AWG, and the 8-ohm nominal impedance integrates reliably into multi-speaker studio monitoring systems using standard low-voltage amplifiers and audio interfaces.

Key Features

• 200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround
• 25 mm (1 in) pure-titanium dome low-diffraction swivel aimable tweeter
• High-slope 2nd order crossover network (Low Pass to woofer, High Pass to tweeter)
• Frequency response: 30 Hz to 20 kHz
• Program power capacity: 120W (240W peak)
• 8-ohm nominal impedance
• Coverage pattern: 180°H x 160°V at 1 kHz–8 kHz
• Dimensions: 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in) with 102 mm wall depth
• Optimum air cavity: 40–80 liters (1.4–2.8 cu ft)
• Euroblock-type connector; maximum wire gauge 14 AWG (1.5 mm²)
• Weight: 5.5 lbs per unit

The Control 128W remains a dependable choice for home studio installations and distributed monitoring systems requiring compact in-wall speakers with balanced tonal character, wide dispersion coverage, and reliable session-to-session performance.
