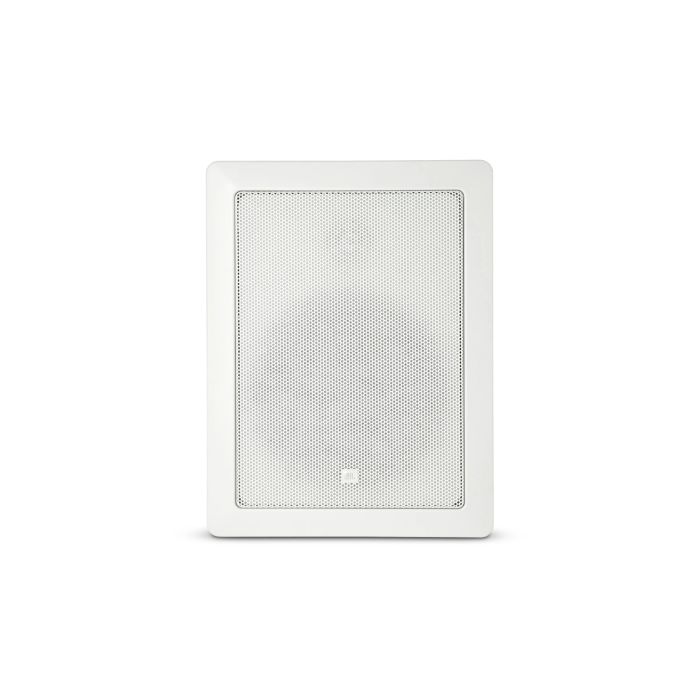

JBL Control 126W 6.5" In-wall Speaker

JBL Control 126W 6.5" In-Wall Speaker

The Control 126W delivers professional-grade acoustic performance in a discreet in-wall format, engineered for studio monitoring applications and critical listening environments where spatial constraints demand embedded speaker solutions. Its compact profile and aimable tweeter enable precise stereo imaging and consistent tonal balance across the listening plane, making it ideal for tracking rooms, mixing suites, and acoustically treated control spaces where traditional speaker stands aren't feasible.

Acoustic Design & Coverage

This two-way system combines a 6.5-inch polymer-coated aluminum-cone woofer with a 1-inch pure-titanium dome tweeter, engineered for smooth, extended response from 38 Hz to 20 kHz. The high-slope 3rd-order crossover (18 dB/octave on both drivers) ensures natural midrange integration and 180° horizontal by 160° vertical coverage, allowing consistent sound across wider listening areas than typical fixed-angle designs, critical for capturing accurate mix decisions across different mixing positions.

Power Handling & Installation Specifications

Rated for 50 W continuous, 100 W program, and 200 W peak power at 8 ohms impedance, the Control 126W integrates seamlessly into both compact audio interfaces and dedicated studio amplifiers without difficulty. Wall cutout dimensions of 246 x 181 mm (9.7 x 7.2 inches) fit standard in-wall cavities, and the recommended 20 to 40-liter air cavity ensures proper bass loading for the woofer's extended low-frequency performance, essential for accurate low-end reproduction in tracking and mixing workflows.

Key Features

• 165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround
• 25 mm (1 in) pure-titanium dome low-diffraction swivel aimable tweeter
• Frequency response: 38 Hz – 20 kHz
• Sensitivity: 88 dB SPL
• Coverage pattern: 180°H x 160°V (average 1 kHz – 8 kHz)
• Power handling: 50 W continuous / 100 W program / 200 W peak
• Impedance: 8 ohms
• 3rd-order (18 dB/octave) high-slope crossover design
• Dimensions: 11" H x 8.5" W x 4.1" D (3.8" front-to-back)
• Optimum air cavity: 20 to 40 liters (0.7 to 1.4 cubic feet)
• Screw-down Euroblock connectors with 14 AWG maximum wire size
• Wall cutout: 246 x 181 mm (9.7 x 7.2 inches)

The Control 126W combines professional crossover engineering with practical installation features, making it a dependable choice for recording and mixing systems requiring balanced tone, flexible mounting, and accurate frequency response in confined spaces.
