JBL Commercial CSS8018 8" Ceiling Spk, 10W
Description

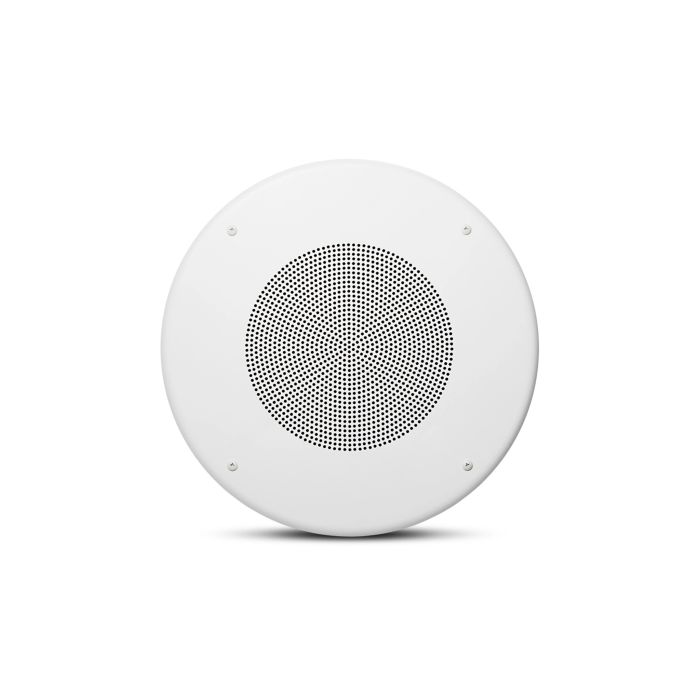

JBL Commercial CSS8018 8" Ceiling Speaker, 10W
The CSS8018 is a compact ceiling-mounted speaker engineered for studio monitoring and distributed audio applications where consistent, reliable coverage is required. Its pre-assembled design and straightforward mounting make it practical for integrating into control room environments, reference setups, or multi-zone session spaces.
Audio Performance & Coverage
This dual-cone 8-inch driver delivers 97 dB sensitivity and a 110° conical coverage angle, providing even sound dispersion across typical control rooms and live recording spaces. The 50 Hz – 17 kHz frequency range captures intelligible dialogue, vocals, and instrument detail without excessive low-end coloration, making it suitable for tracking, mixing, mastering, and podcast production environments.
Transformer & Installation
The integrated 10W multi-tap transformer supports 100V, 70V, and 25V distributed audio lines with selectable taps at 10W, 5W, 2.5W, and 1.3W, allowing flexible gain staging and system integration across recording chains. Driver, grille, and transformer arrive pre-assembled and mount with included M4 x 40 mm sheet metal screws to a standard 11.25-inch bolt circle, streamlining installation in ceiling treatments and isolation booth builds.
Key Features
- 200 mm (8 inch) dual-cone driver
- 97 dB sensitivity
- 20 watts continuous power handling
- Frequency range: 50 Hz – 17 kHz (−10 dB)
- 10W multi-tap transformer for 100V, 70V, and 25V lines
- Transformer taps: 10W, 5W, 2.5W, 1.3W
- Transformer insertion loss: 1.5 dB maximum
- 1-inch (25 mm) voice coil with Kapton former and high-temperature wire
- 110° conical coverage angle
- 11.25-inch bolt mounting circle; 12.9-inch grille diameter
- Pre-assembled driver, grille, and transformer
- Includes 4 pcs M4 x 40 mm mounting screws
The CSS8018 combines straightforward engineering with field-proven reliability, making it a dependable foundation for multi-zone studio and recording monitoring systems.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL Commercial CSS8018 is a practical ceiling speaker for small-to-medium recording studios, content creation spaces, and production facilities that need clean paging, background music, or reference monitoring across multiple zones. Its neutral midrange response and even 110° dispersion keep dialogue and speech intelligible during overdubs or live-to-tape sessions, while the integrated multi-tap transformer simplifies wiring across studio suite installations. Use it for low-cost, no-fuss multi-room coverage that won't color your mix or introduce unwanted bass bloat into your monitoring chain.
Who This Is For
Great for
- ✓ Commercial Installation
- ✓ Retail Audio
- ✓ Office Paging
- ✓ Educational Facilities
Not the best pick for
- – Live Performance
- – High-Fidelity Music
- – Bass-Heavy Content
Skill level: Beginner · Intermediate
Frequently Asked Questions
What voltage options does this speaker support?
The CSS8018 includes a 10W multi-tap transformer with selectable taps for 100V, 70V, and 25V distributed audio lines. Individual taps are available at 10W, 5W, 2.5W, and 1.3W, allowing flexible load balancing and system design across multiple zones.
What's the frequency response and coverage angle?
The 8-inch dual-cone driver delivers 50 Hz to 17 kHz (−10 dB) with a neutral midrange profile optimized for intelligible speech and background music. The 110° conical coverage angle provides even dispersion across typical commercial rooms without hot spots or dead zones.
Is this speaker suitable for high-fidelity music or live performance?
No. The CSS8018 is engineered for commercial paging, speech clarity, and background music in offices, retail, and educational settings. Its frequency response is not designed for bass-heavy content, live performance, or critical listening environments.
What mounting hardware and installation support is included?
The driver, grille, and transformer arrive pre-assembled and mount to a standard 11.25-inch bolt circle using 4 included M4 x 40 mm sheet metal screws. This minimizes labor during retrofits or new distributed audio system buildouts.
How much continuous power can this speaker handle?
The CSS8018 has a 20W continuous power handling rating and delivers 97 dB sensitivity, with a maximum transformer insertion loss of 1.5 dB across all voltage taps.
