JBL Commercial CSS8008 8" Ceiling Spk, 5W
Description

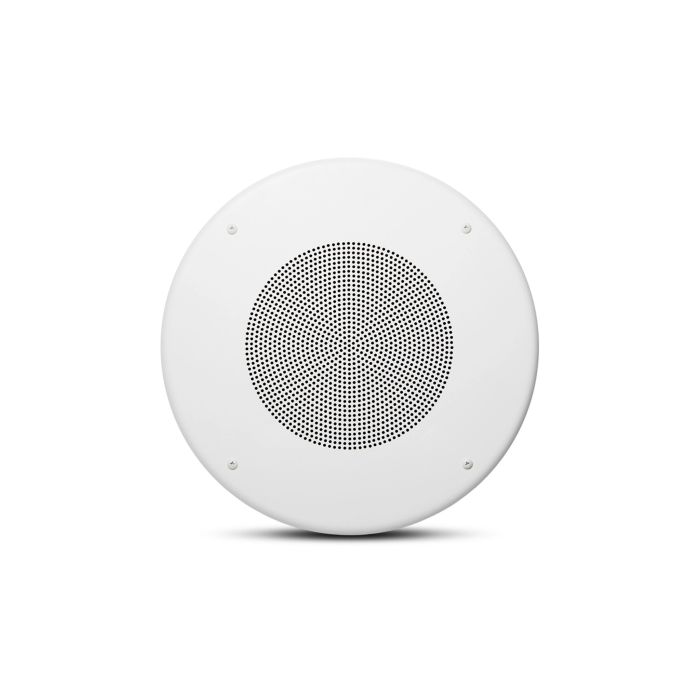

JBL Commercial CSS8008 8" Ceiling Speaker
The CSS8008 is a purpose-built ceiling speaker engineered for distributed studio monitoring and multi-room recording applications requiring consistent coverage and reliable audio distribution. Its compact 2.9-inch profile allows for seamless integration into drop ceilings without compromising acoustic performance. This model excels in control rooms, live tracking spaces, and post-production suites where distributed audio systems demand professional-grade components.
Coverage & Sonic Character
The 8" dual-cone driver delivers 96 dB sensitivity with a wide 120° conical coverage pattern suited to typical studio and tracking spaces. Frequency response spans 55 Hz to 16 kHz (standard grille configuration) or 100 Hz to 16 kHz with an optional backcan, providing adequate clarity for critical listening, reference monitoring, and cue mixing in distributed line systems.
Studio Integration & Flexibility
Built for 100V, 70V, and 25V distributed audio lines, the integrated 5W multi-tap transformer simplifies wiring and level matching across multi-zone session setups with 1.5 dB maximum insertion loss. The speaker mounts via 11.25-inch bolt pattern with a 12.9-inch grille diameter, and zinc-plated steel backcan options are available for compliance with UL standards in air handling spaces.
Key Features
- 8" dual-cone driver with 15W continuous power handling
- 96 dB sensitivity
- 120° conical coverage pattern
- 5W multi-tap transformer for 100V, 70V, and 25V lines
- Frequency range: 55 Hz to 16 kHz (with grille) / 100 Hz to 16 kHz (with backcan)
- 1-inch diameter voice coil with Kapton coil-former and high-temperature wire
- Transformer insertion loss: 1.5 dB maximum
- 11.25-inch bolt-mounting diameter
- 2.9-inch depth behind grille
- 2.8 lbs weight
- 12.9-inch grille diameter
- UL1480, UL2043, NFPA 90 & NFPA 70 compliance with matching backcan
The CSS8008 combines straightforward installation, transformer-based flexibility, and solid acoustic output for recording and monitoring applications requiring consistent, maintenance-free performance across studio workflows.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL CSS8008 is a purpose-built ceiling speaker for commercial installations, offices, and hospitality spaces where background music and announcements need clear, even coverage without specialized studio equipment. Its 8-inch dual-cone driver and wide 120° coverage pattern ensure smooth midrange response and speech intelligibility across a room, with frequency response from 55 Hz to 16 kHz that handles voice and background tracks cleanly. It's ideal when you're designing a distributed audio system for a non-critical environment and need dependable, maintenance-free performance at a budget-friendly price point.
Who This Is For
Great for
- ✓ Commercial installation
- ✓ Retail audio distribution
- ✓ Office background music
- ✓ Hospitality venues
Not the best pick for
- – Live performance
- – High-fidelity music reproduction
- – Extended low-frequency applications
Skill level: Beginner · Intermediate
Frequently Asked Questions
What's the difference between this speaker and models like the Bose FreeSpace 3S or Yamaha VXC1W?
The CSS8008 is designed for cost-effective commercial installations with transformer-based 70V/100V distribution, making it simpler to wire across large spaces without a traditional amplifier. It excels in retail and hospitality but is not rated for high-fidelity music or live performance; the Bose and Yamaha models offer higher sound quality and extended frequency response if those are priorities.
Will this work in my office or retail space without extensive wiring?
Yes—the built-in 5W multi-tap transformer connects directly to 100V, 70V, or 25V distributed lines, and the compact 2.9-inch profile fits into standard drop ceilings. Installation is straightforward with an 11.25-inch bolt-mounting pattern and minimal insertion loss (1.5 dB maximum).
What frequency range does it cover, and is it good for speech and background music?
Frequency response is 55 Hz to 16 kHz with the grille, or 100 Hz to 16 kHz with an optional backcan. It's optimized for clear midrange and speech intelligibility, making it ideal for announcements and background music in commercial spaces; it is not designed for extended bass or high-fidelity music reproduction.
How much coverage does the speaker provide in a room?
The 8-inch dual-cone driver delivers 96 dB sensitivity with a 120° conical coverage pattern, providing consistent audio distribution across typical commercial spaces like retail stores, offices, and hospitality venues.
Is this speaker compliant with building codes for commercial installation?
Yes—the CSS8008 meets UL1480, UL2043, NFPA 90, and NFPA 70 standards, and zinc-plated steel backcan options are available for compliance in air handling spaces.
