JBL Commercial CSR-V-WHT

JBL Commercial CSR-V-WHT

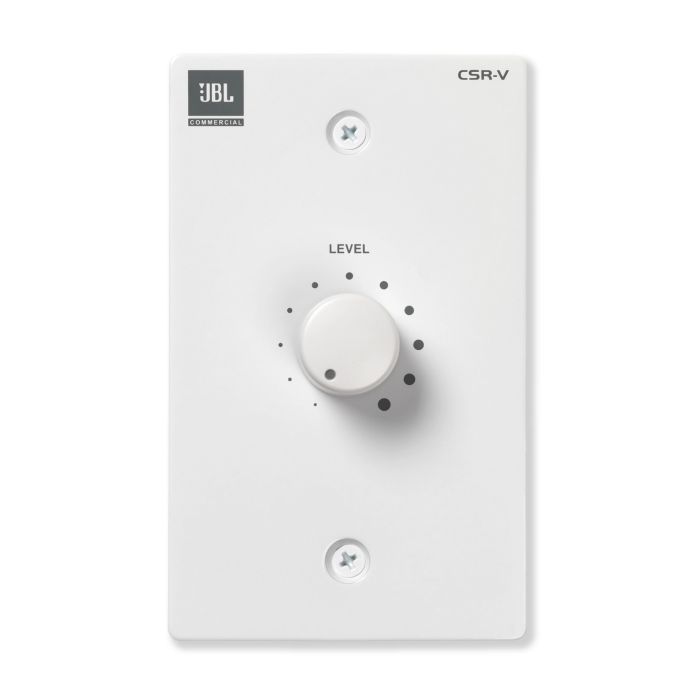

The CSR-V-WHT is a wall-mounted remote control designed for distributed mixer control in multi-room or large-format recording and production facilities. This single-gang form factor unit integrates seamlessly into standard US electrical boxes, enabling remote volume management across tracking rooms, control rooms, or monitoring zones without requiring additional infrastructure.

Remote Mixer Control & Connectivity

This remote operates the JBL CSM-21 and CSM-32 mixers via analog DC voltage logic signaling. The dual RJ45 connectors and support for extended Cat 5 cable runs up to 1000 feet (305 m) allow remote operation from isolated monitoring positions or secondary control zones, making it ideal for large-format studios, multi-room facilities, or split-room recording setups where independent volume management enhances session workflow.

Installation & Operation

The single active LED indicator provides real-time visual feedback on control status, helping engineers confirm connectivity and function at a glance during sessions. The white finish integrates cleanly into standard wall environments, and the straightforward electrical interface requires no special mounting hardware beyond standard wall box preparation.

Key Features

• Wall-mounted remote control for JBL CSM-21 and CSM-32 mixers
• Analog DC voltage logic control
• Dual RJ45 connectors for redundancy and reliability
• Cat 5 cable compatible with RJ-45 connectors
• Cable run support up to 1000 feet (305 m)
• Remote volume control of mixer-selected sources
• Single-gang US form factor for standard electrical box mounting
• Available in white or black finish
• Single active LED indicator for operational status

The CSR-V-WHT delivers reliable, long-distance mixer control for multi-room and complex studio installations requiring distributed volume management to streamline session control and facility logistics.
