JBL C25AV-LS 5.25" 2-WAY Surface-mt Spk, Av Version W EN54-24, Blk
Description

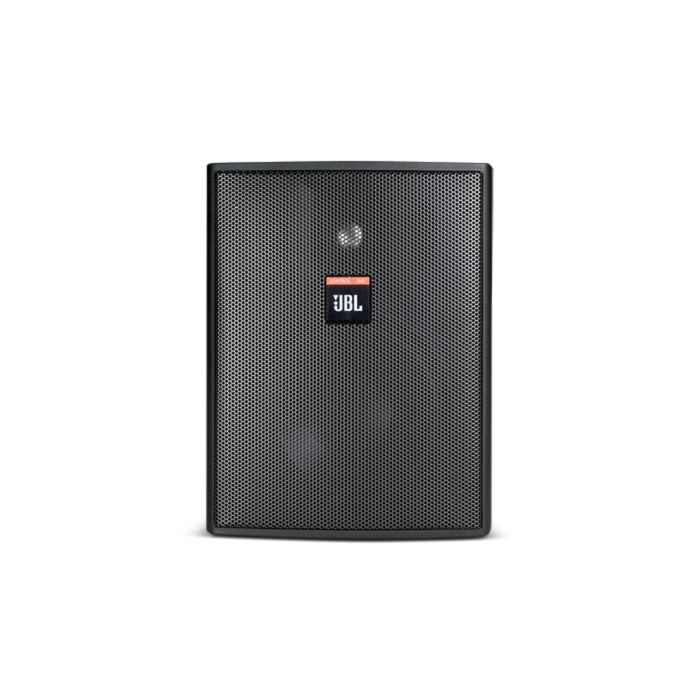

JBL C25AV-LS 5.25" 2-Way Surface-Mount Speaker, AV Version with EN54-24, Black
The JBL C25AV-LS is a compact, surface-mounted loudspeaker engineered for recording studios, post-production facilities, and audio production environments where consistent monitoring and reliable speech reproduction are critical. Its compact footprint and lightweight aluminum grille mount directly to walls or ceilings, delivering professional-grade output without requiring recessed installation infrastructure—ideal for retrofitting existing control rooms or field recording setups.
Directional Coverage & Mix Translation
With a controlled 100 x 85-degree coverage pattern, this speaker maintains consistent sound pressure across your monitoring sweet spot while minimizing room reflections and acoustic coloration that can muddy critical mixing decisions. The tight polar response prevents stray acoustic energy from contaminating your signal path, making it easier to trust your mixes across playback systems.
Sonic Architecture
The 130 mm polypropylene-coated woofer reproduces midrange and low-frequency content with transparency, while the 10 mm titanium-coated horn-loaded tweeter delivers articulate presence essential for dialogue tracking, voiceover production, and mix verification. A 60W transformer integrates seamlessly into both 70V and 100V distributed audio lines with an 8-ohm bypass option for direct amplifier connectivity in compact studio setups.
Key Features
- 5.25-inch polypropylene-coated woofer
- 0.75-inch titanium-coated horn-loaded tweeter
- 60W transformer for 70V/100V lines with 8-ohm bypass
- 100 x 85-degree coverage pattern
- Aluminum grille with polyester powder coating
- Liquid-tight MTC-PC2 terminal covers
- InvisiBall® mounting hardware included
- Captive screw-down terminals (accepts up to 9 mm outside/4 mm inside lugs, bare wire up to 12 AWG)
- UL1480-UUMW Listed
- EN54-24:2008 certified for emergency voice communication
- NFPA90, NFPA70A, IEC60849/EN60849 compliant
Built for session work and production applications where monitoring accuracy and regulatory compliance matter, the JBL C25AV-LS combines certified performance, durability, and predictable frequency response in a form factor that integrates cleanly into any studio or production facility.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL C25AV-LS is a speech-optimized fixed-install speaker engineered for institutional and emergency audio applications, not music production or high-fidelity recording. Its controlled directional response and articulate midrange and treble make it useful as a reference or testing tool in studios that also track voice-over, speech, or documentary content, but it is not designed for capturing or mixing music. Consider it only if your workflow involves monitoring speech intelligibility or testing audio in simulated live/institutional environments.
Who This Is For
Great for
- ✓ Emergency voice communication
- ✓ Commercial installations
- ✓ Speech intelligibility
- ✓ Fixed institutional audio
Not the best pick for
- – Music playback
- – High-fidelity listening
- – Bass-heavy applications
Skill level: Beginner · Intermediate · Advanced · Professional
Frequently Asked Questions
What does EN54-24 certification mean, and is this speaker suitable for emergency voice systems?
EN54-24:2008 certification confirms this speaker meets European standards for emergency voice communication systems. It is also UL1480 listed and compliant with NFPA90, NFPA70A, and IEC60849/EN60849, making it approved for life-safety and commercial audio installations requiring regulatory compliance.
Can this speaker work on both 70V and 100V distributed audio systems?
Yes. The built-in 60W transformer supports both 70V and 100V lines, and includes an 8-ohm bypass option for low-impedance installations. Captive screw-down terminals accept up to 12 AWG bare wire or lugs up to 9 mm outside diameter.
What is the coverage pattern, and where does this speaker work best?
The 100 x 85-degree controlled directional pattern maintains consistent sound pressure in defined listening areas while minimizing spillover and feedback. It is ideal for corridors, stairwells, perimeter zones, and other institutional spaces where acoustic precision and coverage control are important.
Does this speaker require in-wall or recessed installation?
No. The JBL C25AV-LS is a surface-mount design that attaches directly to walls or ceilings using included InvisiBall mounting hardware. Its compact lightweight form factor does not require recessed installation infrastructure.
Is this speaker suitable for music playback or high-fidelity listening?
No. The C25AV-LS is optimized for speech intelligibility and institutional audio. It is not designed for music playback or high-fidelity applications and should be used only for voice communication, emergency systems, and fixed commercial installations.
