JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker with 15 LF Bl
In stock
- SKU
- AWC159-BK
Description
JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF (Black)
The AWC159 is a rugged, professionally engineered loudspeaker designed for permanent installation in demanding studio and location recording environments. Its compact footprint and coaxial design deliver consistent, phase-coherent coverage and high output from a single enclosure, making it ideal for field recording, live tracking sessions, and architectural installations where weather resistance and sonic reliability are non-negotiable.
Design & Build Quality

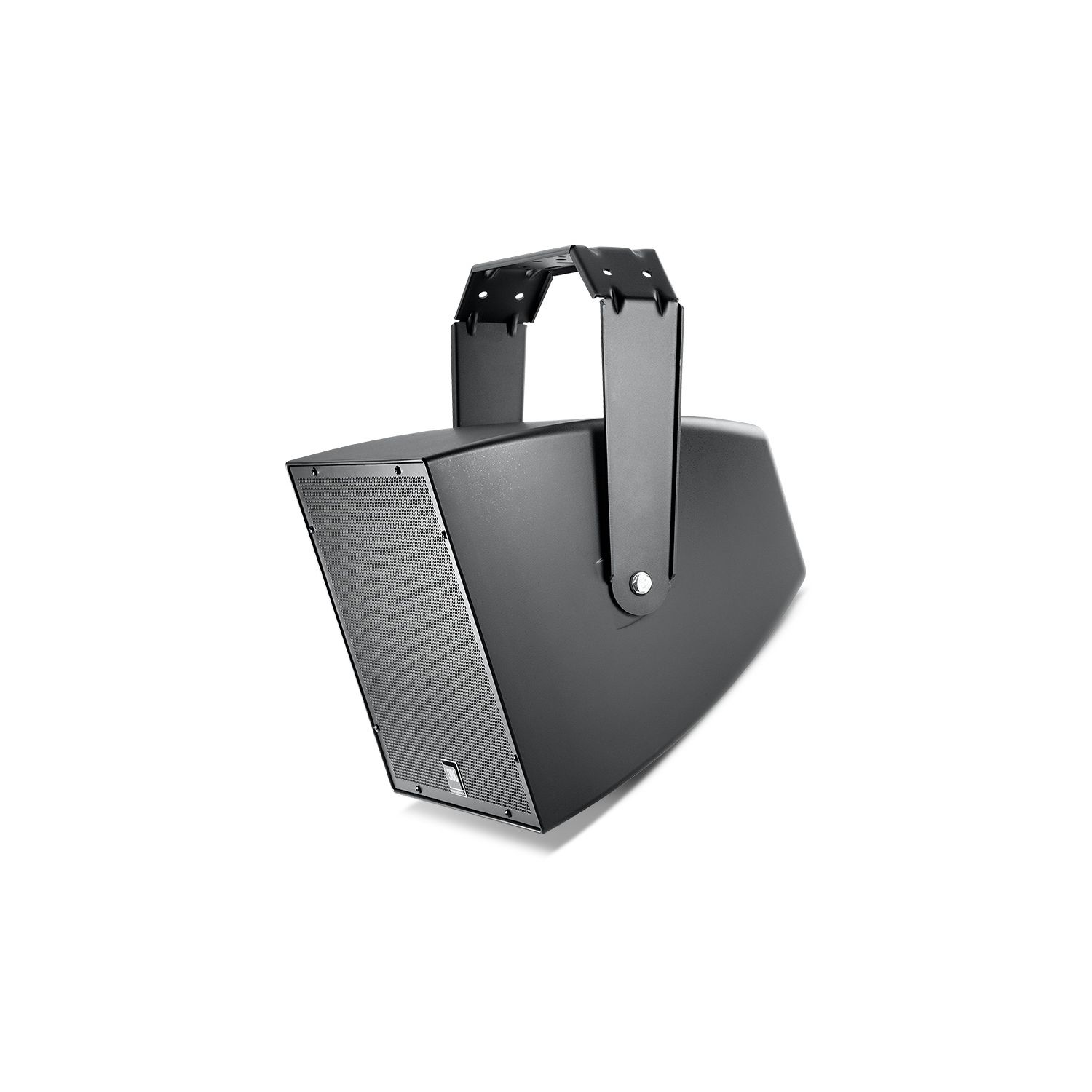

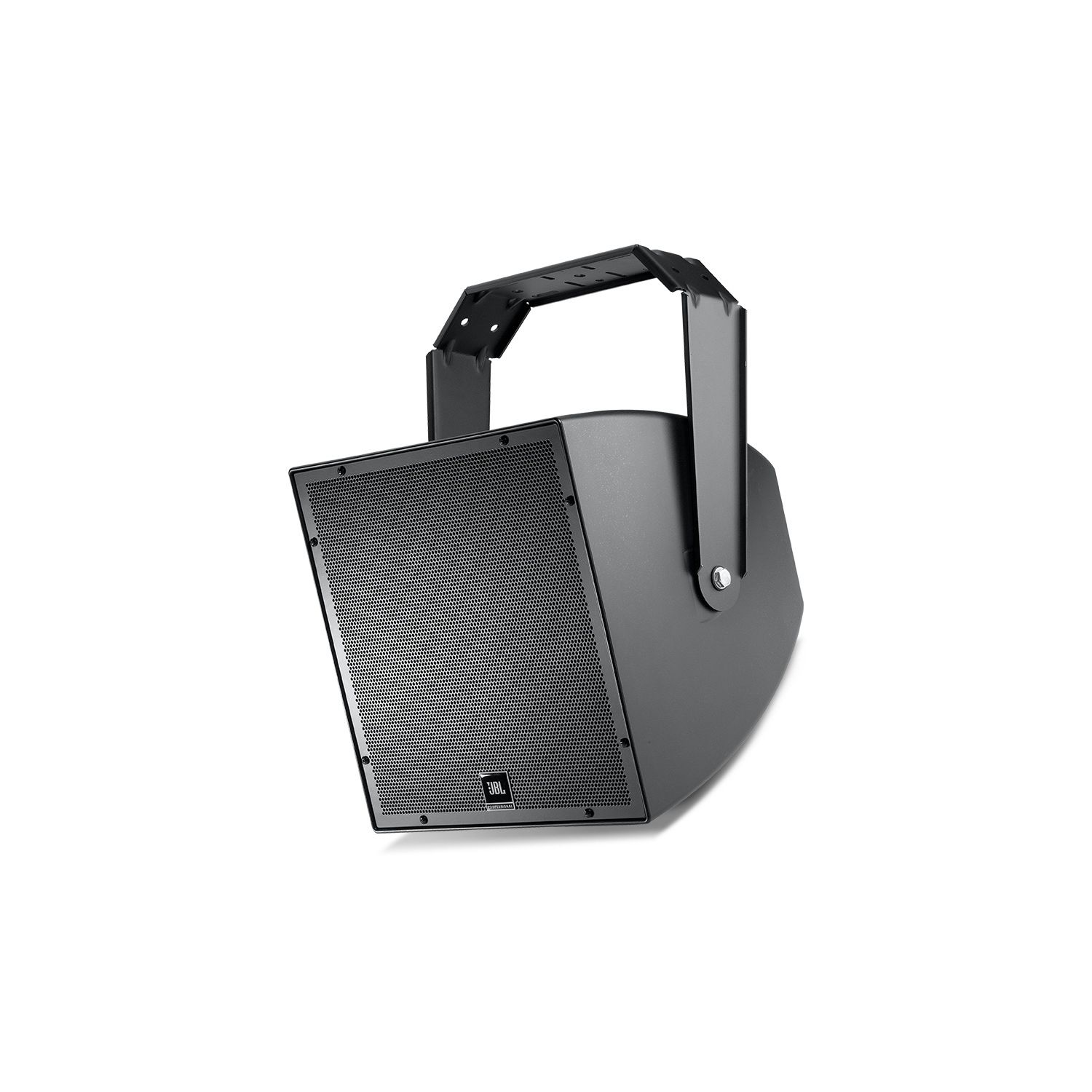

Constructed from ABS plus fiberglass with heavy internal bracing, this speaker meets IP56 environmental protection standards and withstands sustained exposure during outdoor and mobile recording setups. The 486 × 486 × 479 mm cabinet (20.6 kg) accepts standard barrier terminal wiring up to 12 AWG and mounts securely with included bracket hardware for flexible studio and location deployment.
Recording & Mix Integration

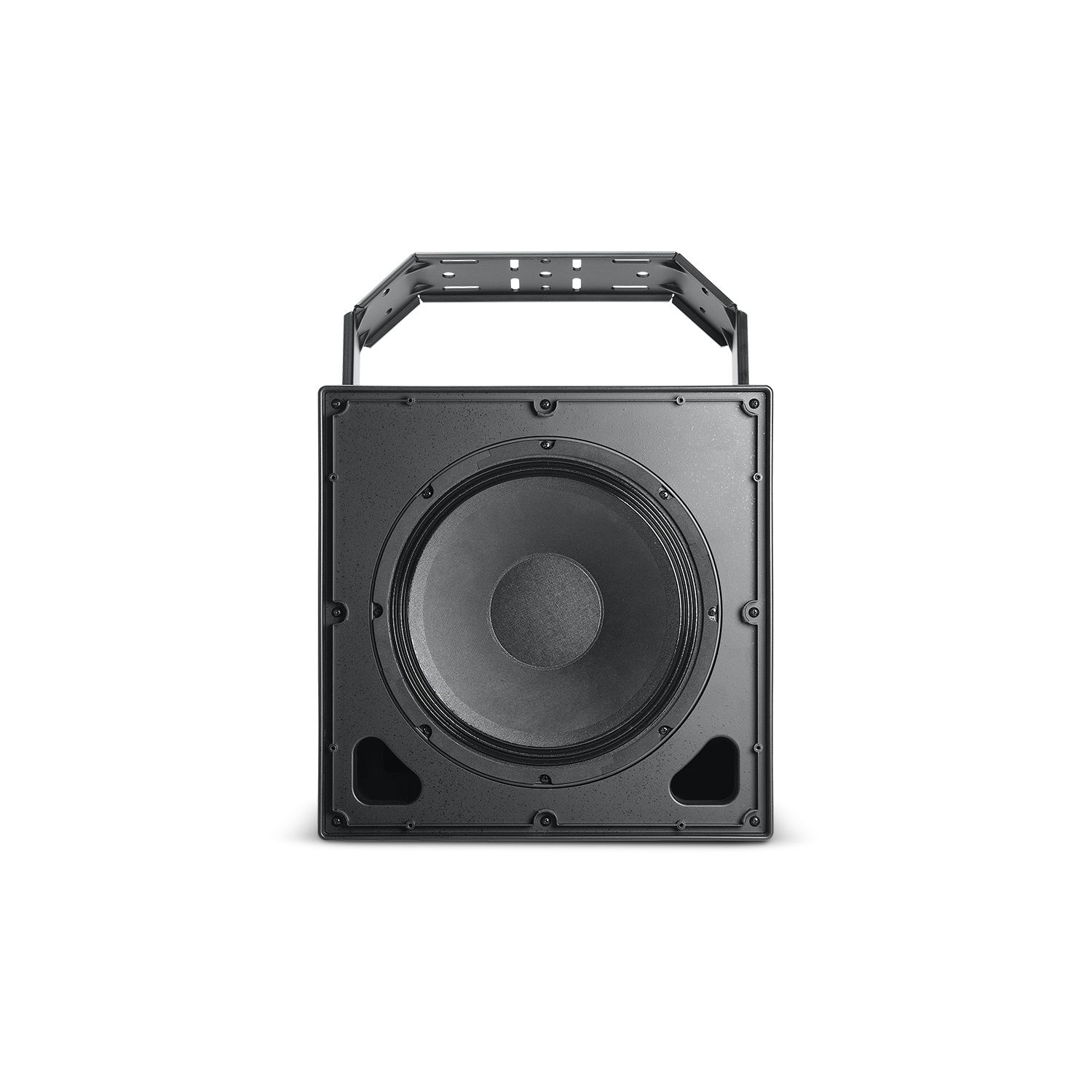

The 380 mm woofer with Kevlar-reinforced cone pairs with a 38 mm compression driver in a coaxial configuration, producing 98 dB sensitivity and peak SPL of 131 dB at 1 meter. Selectable 70V/100V multi-tap transformer or direct 8Ω operation accommodates both distributed session setups and dedicated amplifier configurations, while the 1.5 kHz crossover ensures seamless driver integration across the 80 Hz–20 kHz response range for accurate monitoring and reference.
Key Features
- 380 mm (15 in) Kevlar-reinforced woofer with 75 mm voice coil
- 38 mm (1.5 in) compression driver with high-temperature polymer diaphragm
- 300 W 70V/100V multi-tap transformer or 8Ω direct operation
- 500 W system power rating (2000 W peak); 300 W / 100 hrs continuous
- Frequency response ±3 dB: 80 Hz–20 kHz; −10 dB range 52 Hz–20 kHz
- 98 dB sensitivity (2.83V @ 1m averaged 80 Hz–20 kHz)
- Maximum SPL: 125 dB direct 8Ω (131 dB peak)
- 90° × 90° coverage pattern with 1.5 kHz, 4th-order crossover
- IP56 environmental protection rating per IEC 529
- ABS plus fiberglass enclosure with heavy internal bracing
- Barrier terminals accept 12 AWG wire, #6 or #8 open lugs, and 2.5 mm² spade connectors
- Dimensions: 486 × 486 × 479 mm; depth 546 mm with bracket; net weight 20.6 kg (45.5 lbs)
The AWC159 combines professional-grade components, all-weather durability, and flexible amplifier compatibility into a compact loudspeaker engineered for location recording, remote sessions, and mobile studio deployments.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The JBL AWC159 is a weather-resistant, professionally engineered 2-way loudspeaker designed for outdoor recording environments, live broadcast, and permanent installation where equipment must survive sustained moisture and UV exposure. Its coaxial driver arrangement and 1.5 kHz crossover deliver smooth, extended frequency response from 80 Hz–20 kHz, while dual amplifier modes (70V/100V transformer or direct 8Ω) integrate seamlessly into distributed or dedicated studio audio chains. Pick this if you need monitor or main PA coverage in outdoor session spaces, mobile recording setups, or fixed installations where traditional studio speakers cannot survive the environment.
Frequently Asked Questions
What does IP56 protection mean, and will this speaker survive outdoor weather?
IP56 is an international environmental protection rating that certifies dust and water resistance suitable for sustained outdoor exposure. The AWC159 is constructed from ABS plus fiberglass with heavy internal bracing, designed specifically for permanent outdoor installation in venues, stadiums, and architectural applications.
Can I use this with my existing PA amplifier, and what are the wiring options?
Yes. The AWC159 accepts either 70V/100V multi-tap transformer operation (for distributed systems) or direct 8Ω connection (for dedicated amplifiers). Barrier terminals accommodate 12 AWG wire, #6 or #8 open lugs, and 2.5 mm spade connectors, and the speaker is rated for 300 W continuous (500 W peak, 2000 W system rating).
What kind of coverage pattern and frequency response does it provide?
The AWC159 delivers 90° × 90° coverage with a 1.5 kHz, 4th-order crossover, covering 80 Hz–20 kHz (±3 dB) and extending to 52 Hz–20 kHz at −10 dB. Its 98 dB sensitivity and coaxial 15-inch woofer plus compression driver design ensure consistent sound across that wide dispersion.
How large is the cabinet, and what mounting options are available?
The enclosure measures 486 × 486 × 479 mm (depth 546 mm with bracket) and weighs 20.6 kg (45.5 lbs). Bracket hardware is included for secure permanent installation on poles, walls, or other standard mounting structures.
What makes the coaxial design better for outdoor venues than separate woofer and tweeter?
Coaxial alignment places the compression driver at the acoustic center of the woofer, delivering seamless integration across the crossover region and consistent coverage from a compact, single-enclosure design—ideal when space is limited and weather resistance requires minimizing exposed seams and connectors.
