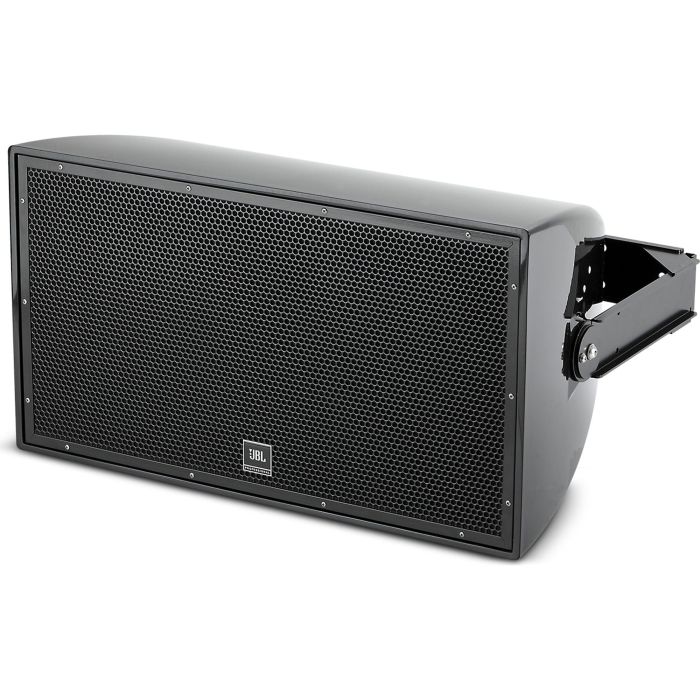

JBL AW595-LS-BK 15" HI-PWR ALL-WEATHER SPK W EN54-24, 90x50, BLK

JBL AW595-LS-BK 15" High-Power All-Weather Speaker with EN54-24 Compliance

The AW595-LS-BK is a professionally engineered all-weather loudspeaker engineered for studio-based recording, remote location capture, and live session work where consistent output and reliability are non-negotiable. Its robust fiberglass construction and stainless steel components deliver performance in demanding environments, while the rotatable waveguide accommodates both horizontal and vertical monitoring scenarios without acoustic compromise.

Recording & Monitoring Performance

This system produces 127 dB-SPL continuous average output with peak capability reaching 133 dB, powered by a 15" low-frequency driver with Differential Drive dual voice coil and high-frequency compression driver with 38 mm exit. The 90° x 50° coverage pattern and Large format Progressive Transition waveguide establish consistent response across the listening area, with 100 dB SPL system sensitivity at 1W/1m and frequency response spanning 41 Hz – 20 kHz (−10 dB), delivering transparent playback for critical listening and mix verification.

Construction & Signal Integration

The enclosure features a multilayer glass composite construction with heavy internal bracing and 14-gauge stainless steel grille with open cell foam backing, meeting IP55C weatherproof rating for uncompromised durability across studio environments and field recording scenarios. A corrosion-resistant extra-thick zinc-plated powder-coated U-type mounting bracket is included, and the speaker operates via 400W transformer for 70/100V applications or as an 8-ohm device, streamlining integration into existing studio console and amplifier chains.

Key Features

• 15" (380 mm) low-frequency driver with Differential Drive dual voice coil and dual magnetic gap
• High-frequency compression driver with 38 mm (1.5") exit and 75 mm (3") voice coil
• Maximum SPL: 127 dB continuous average, 133 dB peak
• System Sensitivity: 100 dB SPL at 1W @ 1m
• Frequency Range: 41 Hz – 20 kHz (−10 dB); ±3 dB response: 88 Hz – 19 kHz
• 90° x 50° rotatable coverage pattern
• 400W transformer for 70/100V distributed audio or 8-ohm direct operation
• All-fiberglass weather-resistant multilayer glass composite enclosure
• Stainless steel grille with open cell foam and mesh backing
• EN54-24 compliant with IP55C weatherproof rating
• Corrosion-resistant zinc-plated mounting bracket included
• Large format Progressive Transition waveguide

The AW595-LS-BK delivers the output, protection, and flexibility required for studio monitoring, location recording, and live session applications where environmental exposure and high-SPL demands are the standard.
