JBL AW566 High Power 2-Way All Weather Loudspeaker with 1 x 15 LF & Ro

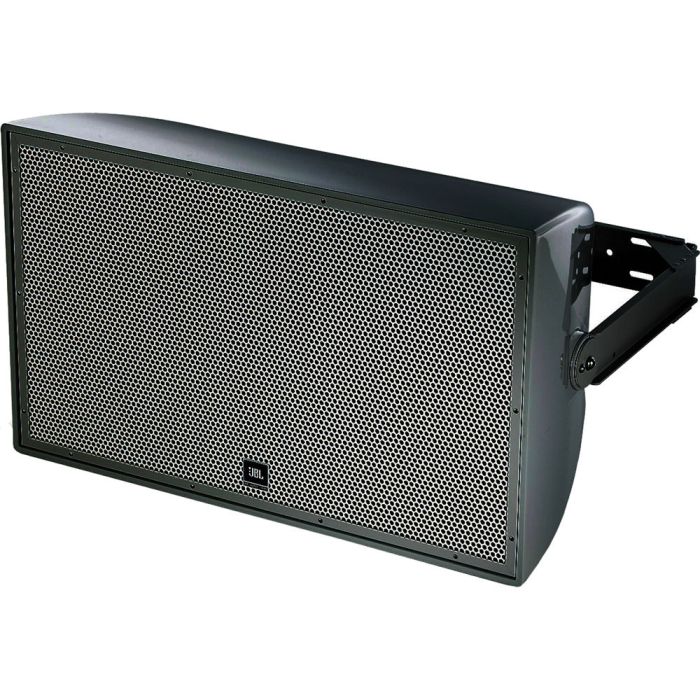

The AW566 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW566 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Frequency Range (-10 dB) 35 Hz – 20 kHz
Frequency Response (±3 dB) 54 Hz – 18 kHz
Coverage Pattern 60° x 60°
Directivity Factor (Q) 15.8
Directivity Index (DI) 12 dB
Crossover Frequency 1.1 kHz
Long-Term System Power Rating (IEC) 600 W (2400 W peak), 100 hrs
Maximum SPL 128 dB-SPL cont avg (134 dB peak)
System Sensitivity (1W @ 1m) 100 dB SPL
70V/100V Transformer Taps 70V: 400 W, 200 W, 100W
100V: 400W, 200W
Low Frequency Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
LFD Nominal Impedance 8 ohms
LFD Sensitivity (1W @ 1m, within operational band) 98 dB SPL
High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
HFD Nominal Impedance 8 ohms
Sensitivity (1W @ 1m) 113 dB SPL
Enclosure Hand-Laminated Fiberglass, gray gelcoat (black available)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications IP56 per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in)
Net Weight 28.3 kg (62.5 lb)
|Country of Manufacture||Mexico|
