JBL AM7315/64 3-WAY Full-range Loudspeaker Sys
Description

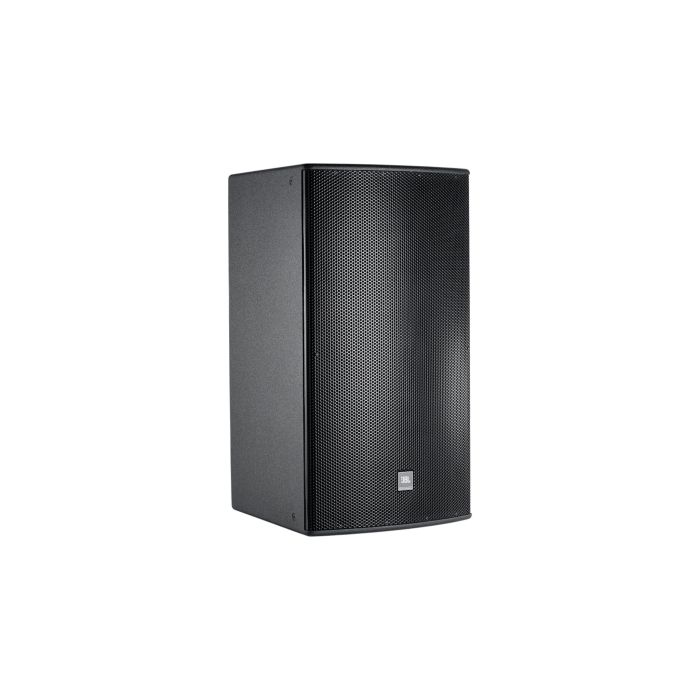

JBL AM7315/64 3-Way Full-Range Loudspeaker System
The JBL AM7315/64 is a professional-grade three-way loudspeaker engineered for studio monitoring, mixing reference, and tracking applications where accurate coverage and high headroom are essential. This system delivers controlled directivity with switchable tri-amp and bi-amp modes, making it adaptable to various room sizes and acoustic treatments. Built for critical listening tasks, it combines robust power handling with precise frequency management across the full spectrum.
Acoustic Performance & Flat Response
The system achieves a frequency response of ±3 dB from 45 Hz to 18 kHz, with extended reach down to 38 Hz at –10 dB, covering the full audible spectrum with minimal coloration ideal for mixing and mastering work. Its 60° × 40° rotatable waveguide with a directivity factor of 20 (13 dB directivity index) provides focused, controlled dispersion that minimizes room reflections and ensures consistent translation across the stereo field, while maximum SPL ratings reach 135 dB continuous average in the high-frequency range, providing ample headroom for dynamic tracking and mix engineering in medium to large control rooms.
Driver Configuration & Power Headroom
The three-way design employs a 380 mm (15-inch) Differential Drive low-frequency driver, 200 mm (8-inch) CMCD cone midrange compression driver, and 38 mm (1.5-inch) exit compression driver with a 75 mm voice coil, each engineered for maximum efficiency and precision. Power specifications provide substantial headroom: 1000 W (4000 W peak) for low frequencies, 350 W (1400 W peak) for midrange, and 100 W (400 W peak) for high frequencies, with switchable tri-amp/bi-amp crossover modes at 300 Hz and 2.3 kHz for flexible studio integration and session versatility.
Key Features
- One 380 mm (15 in) Differential Drive low-frequency driver
- One 200 mm (8 in) CMCD Cone Midrange Compression Driver
- One 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil HF compression driver
- Frequency Range (–10 dB): 38 Hz – 20 kHz
- Frequency Response (±3 dB): 45 Hz – 18 kHz
- 60° × 40° rotatable waveguide with directivity factor Q of 20
- Tri-amp/Bi-amp switchable modes with crossover frequencies at 300 Hz and 2.3 kHz
- LF: 1000 W (4000 W peak, 2 hrs) / 750 W (3000 W peak, 100 hrs); MF: 350 W (1400 W peak, 2 hrs); HF: 100 W (400 W peak, 2 hrs)
- Maximum SPL: LF 127 dB-SPL continuous (133 dB peak); MF/HF 135 dB-SPL continuous (141 dB peak)
- Dimensions: 967 × 561 × 657 mm (38.1 × 22.1 × 25.9 in) in vertical orientation
- M10 threaded suspension points for flying or mounting
- Environmental rating: Mil-Std 810; IP-x3 per IEC529 for outdoor durability
The AM7315/64 combines proven JBL professional driver technology with flexible operational modes and robust construction, making it a dependable reference tool for producers, engineers, and studios requiring accurate full-range monitoring and translatability across sessions.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7315/64 is a full-range three-way system designed for live recording capture and large-scale sound reinforcement where extended frequency response and controlled dispersion matter. Its precise frequency management (45 Hz–18 kHz ±3 dB) and low coloration make it ideal for tracking live performances or monitoring mixes in tracking rooms and studios that need true main-system reference capability. Select this if you're recording or mixing in a space that demands professional-grade directivity control and transparent, uncolored sound reproduction across the full spectrum.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Large venue reinforcement
- ✓ Festival sound systems
Not the best pick for
- – Home Recording
- – Small intimate venues
- – Practice spaces
Skill level: Professional
Frequently Asked Questions
What does tri-amp/bi-amp switchable mode mean?
The AM7315/64 can operate in either tri-amp mode (separate amplifiers for lows, mids, and highs with crossovers at 300 Hz and 2.3 kHz) or bi-amp mode (two amps handling frequency bands differently), allowing you to optimize amplifier layout and crossover strategy for your specific venue and amplifier setup.
Is this suitable for outdoor festivals and touring?
Yes. The system meets Mil-Std 810 environmental standards and IP-x3 rating per IEC 529 for outdoor durability, with M10 threaded suspension points for flying or permanent mounting, making it road-hardened and venue-ready.
What kind of maximum SPL does it produce?
The midrange and high-frequency sections deliver 135 dB SPL continuous (141 dB peak), while the low-frequency driver reaches 127 dB SPL continuous (133 dB peak), enabling high-impact reinforcement in large halls, festivals, and outdoor venues.
How much space does the AM7315/64 take up?
In vertical orientation, it measures 967 × 561 × 657 mm (38.1 × 22.1 × 25.9 inches), with M10 flying points for suspension or ground stacking in touring or installed configurations.
Will this color my sound or add room reflections?
The 60° × 40° rotatable waveguide with a directivity factor of 20 (13 dB directivity index) provides focused, controlled dispersion that minimizes room reflections and coloration, delivering precise frequency management across the full spectrum with ±3 dB consistency from 45 Hz to 18 kHz.
