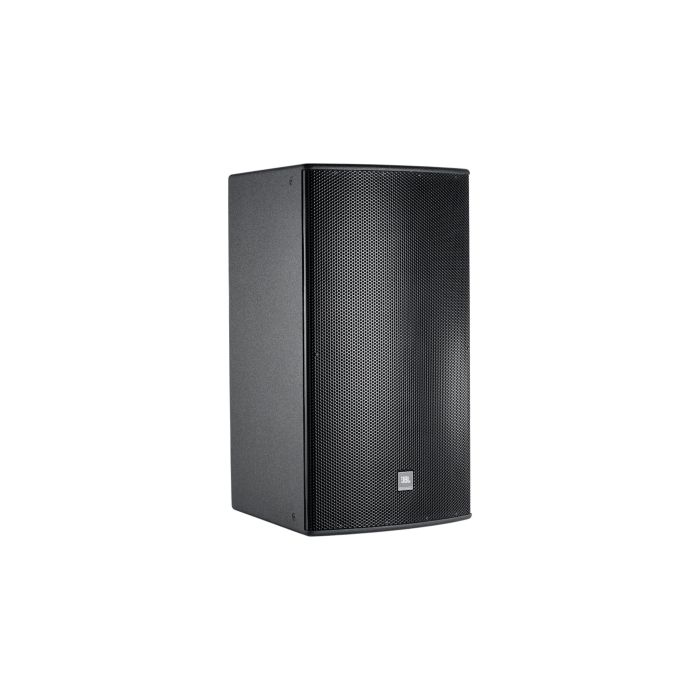

JBL AM7315/64 3-Way Full-Range Loudspeaker System

The AM7315/64 is a professional-grade three-way loudspeaker engineered for studio monitoring, post-production facilities, and critical listening environments where consistent accuracy and controlled output are essential. This system delivers precise directivity across a broad frequency spectrum, making it ideal for mastering rooms, mixing suites, broadcast facilities, and large tracking spaces. The rotatable waveguide and tri-amp/bi-amp flexibility allow engineers to adapt the speaker to diverse room acoustics without sacrificing fidelity or translation.

Acoustic Performance & Monitoring Capabilities

The AM7315/64 combines a 15-inch low-frequency driver with an 8-inch midrange compression driver and a 1.5-inch high-frequency compression driver, yielding a frequency response of 45 Hz to 18 kHz (±3 dB) with extended reach down to 38 Hz at –10 dB. Maximum SPL ratings of 127 dB continuous for the low end, 133 dB for the midrange, and 135 dB for the highs provide adequate headroom for mixing at reference levels, with peak capabilities reaching 141 dB in the treble for dynamic material assessment.

Cabinet Construction & Studio Isolation

Built from 16 mm exterior-grade Finnish birch plywood with DuraFlex finish and protected by a 14-gauge perforated steel grille with acoustically transparent foam, this cabinet resists resonance and cabinet coloration for accurate session monitoring. Thirteen M10 threaded suspension points enable secure isolation mounting, while Mil-Std 810 and IP-x3 environmental ratings confirm durability across different studio climates and conditions.

Key Features

• 1× 380 mm (15 in) Differential Drive low-frequency driver
• 1× 200 mm (8 in) CMCD Cone Midrange Compression Driver
• 1× 38 mm (1.5 in) exit / 75 mm (3 in) voice-coil HF compression driver
• Frequency Response (±3 dB): 45 Hz – 18 kHz
• Frequency Range (–10 dB): 38 Hz – 20 kHz
• Coverage Pattern: 60° × 40° with rotatable waveguide
• Directivity Index: 13 dB; Directivity Factor (Q): 20
• Tri-amp/Bi-amp switchable crossover at 300 Hz and 2.3 kHz
• LF Power Rating: 1000 W AES (4000 W peak, 2 hrs) / 750 W (3000 W peak, 100 hrs)
• MF Power Rating: 350 W AES (1400 W peak, 2 hrs)
• HF Power Rating: 100 W AES (400 W peak, 2 hrs)
• Cabinet: 967 × 561 × 657 mm (H × W × D); 16 mm Finnish birch plywood with DuraFlex finish

The AM7315/64 stands as a robust, full-range solution for professional studios demanding accuracy, extended monitoring bandwidth, and long-term reliability.
