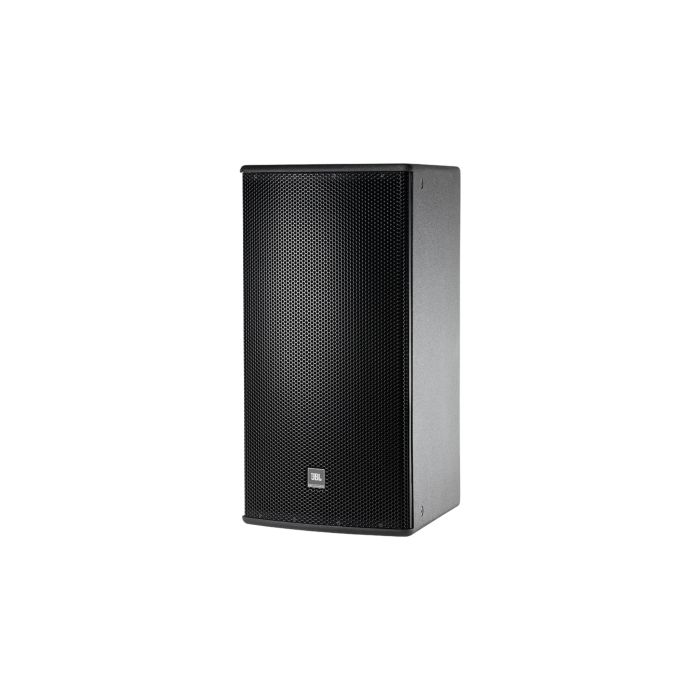

JBL AM7215/64 Two-way full range loudspeaker

JBL AM7215/64 Two-Way Full Range Loudspeaker

The AM7215/64 is a versatile mid-to-large format monitor and main system speaker engineered for accurate, articulate reproduction across studio tracking, mixing, and live tracking applications. Its trapezoid cabinet and rotatable waveguide afford flexible placement and phase alignment in session rooms and tracking spaces, while the dual-voice-coil woofer and compression driver deliver transparent presence with minimal coloration—essential for critical listening and recording decisions.

Sonic Performance & Studio Headroom

This system achieves 96 dB SPL sensitivity at 1W/1m in passive mode, yielding 124 dB continuous average SPL with 130 dB peak capability—sufficient headroom for tracking and mixing in mid-sized studios without dynamic compression or fatigue. The 60° × 40° rotatable waveguide and directivity index of 12.6 dB provide controlled, consistent coverage that minimizes room reflections and acoustic coloration, critical for accurate monitoring during session work.

Driver Design & Engineering

The JBL 2265H 380mm differential-drive woofer with dual voice coil and magnetic gap captures extended low-end detail from 34 Hz (at −10 dB), while the JBL 2432H compression driver with 75mm voice coil and 38mm exit renders midrange and treble with minimal distortion—preserving transient clarity and harmonic fidelity essential for tracking and mix validation. Heavy internal bracing, multi-ply birch construction, and the durable DuraFlex finish ensure consistent performance and longevity through intensive studio use.

Key Features

• Frequency Range (−10 dB): 34 Hz – 20 kHz
• Frequency Response (±3 dB): 40 Hz – 18 kHz
• System Sensitivity: 96 dB SPL (1W @ 1m, passive mode)
• Maximum SPL: 124 dB continuous average / 130 dB peak
• Low-Frequency Driver: JBL 2265H 380mm dual voice coil, differential drive
• High-Frequency Driver: JBL 2432H compression driver, 75mm voice coil, 38mm exit
• Coverage Pattern: 60° × 40°, rotatable waveguide
• Passive Crossover Frequency: 1.8 kHz
• Directivity Index: 12.6 dB
• Enclosure: Multi-ply birch with DuraFlex finish, 14-gauge steel grille, fifteen M10 threaded attachment points
• Operating Modes: Bi-amp/passive switchable

The AM7215/64 combines proven JBL component engineering with robust construction, making it an ideal choice for studios and tracking rooms demanding accurate, transparent monitoring and reliable high-output performance across the full audio spectrum.
