JBL AM7215/26 High Power 2-Way Loudspeaker with 1 x 15 LF & Rotatable
In stock
- SKU
- AM7215/26
Description

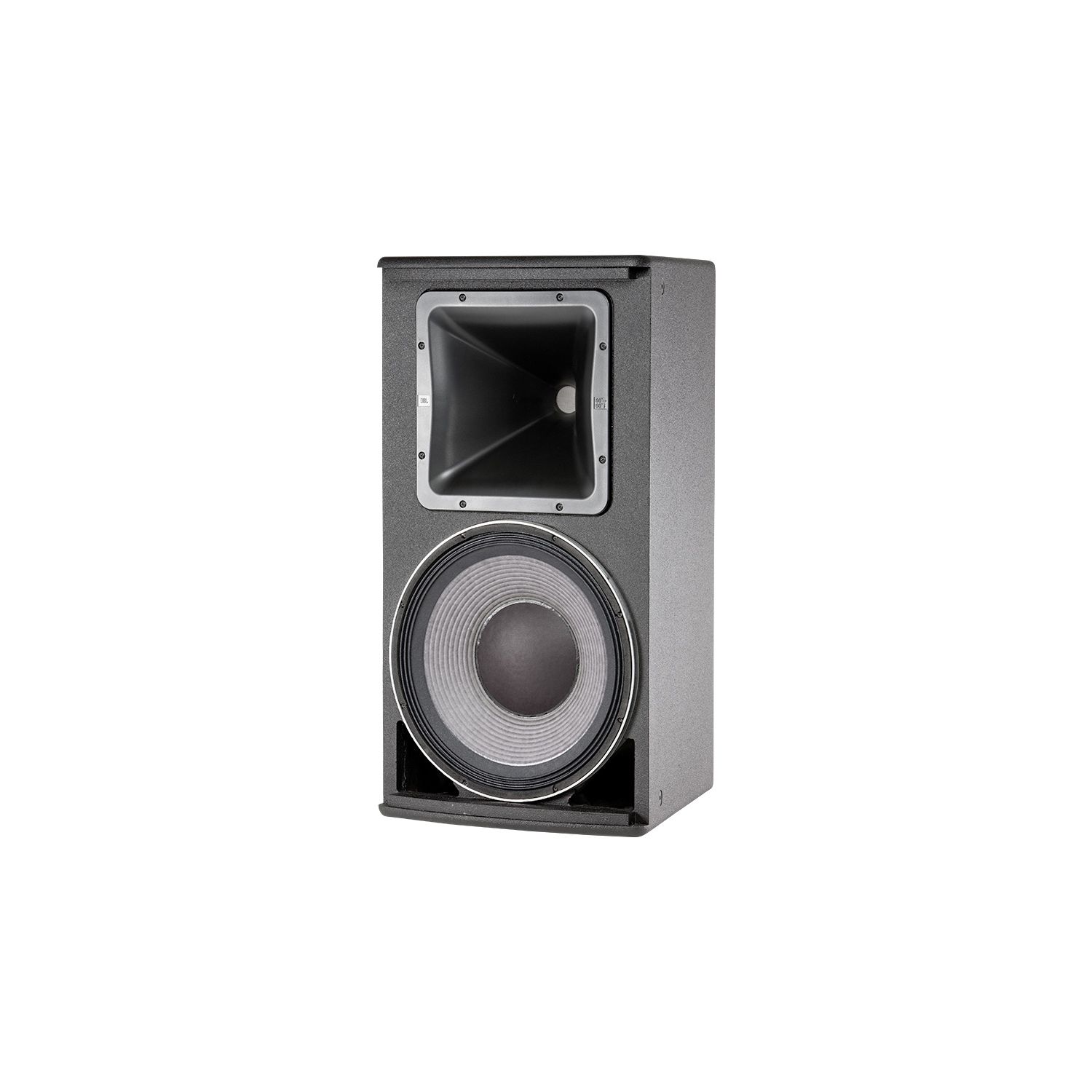

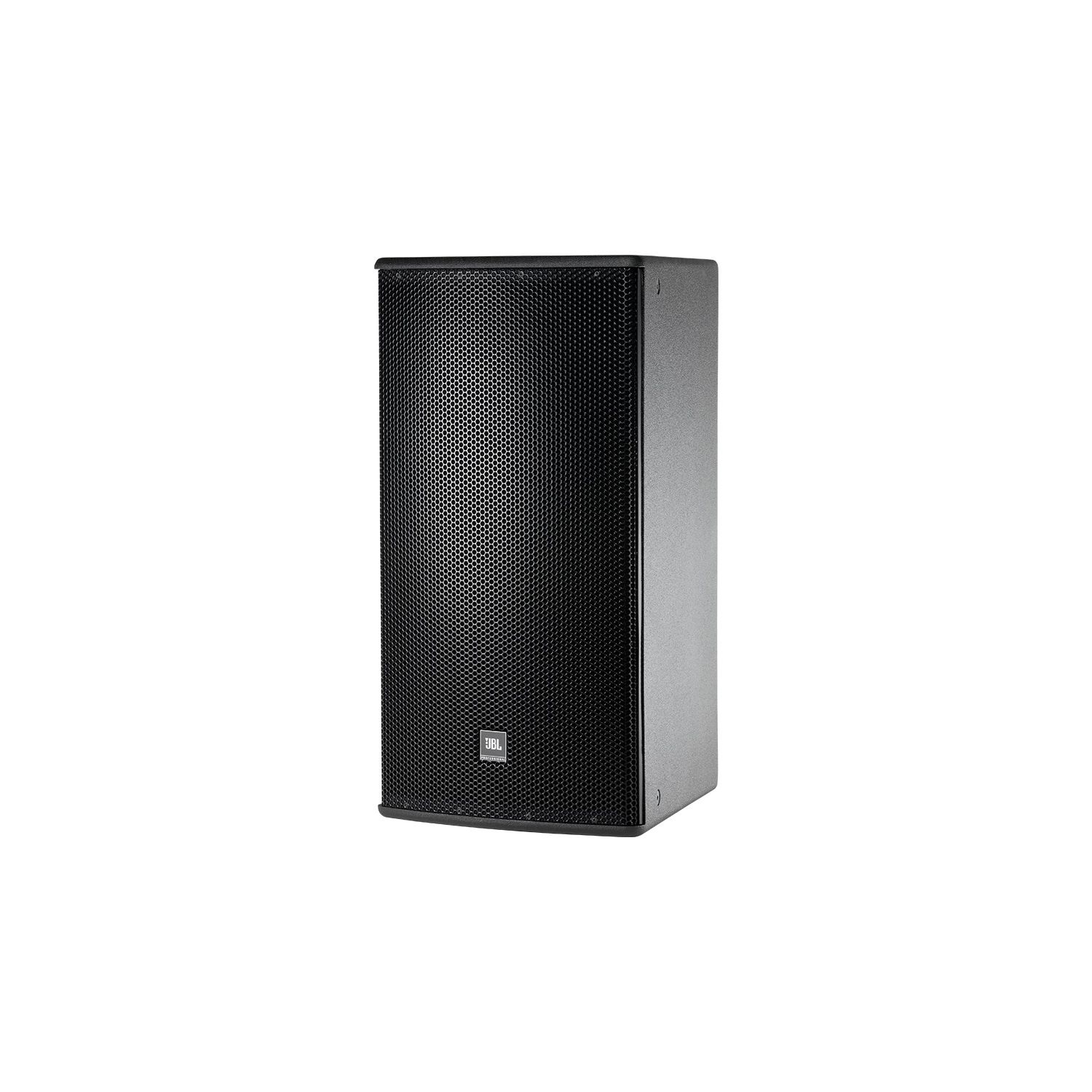

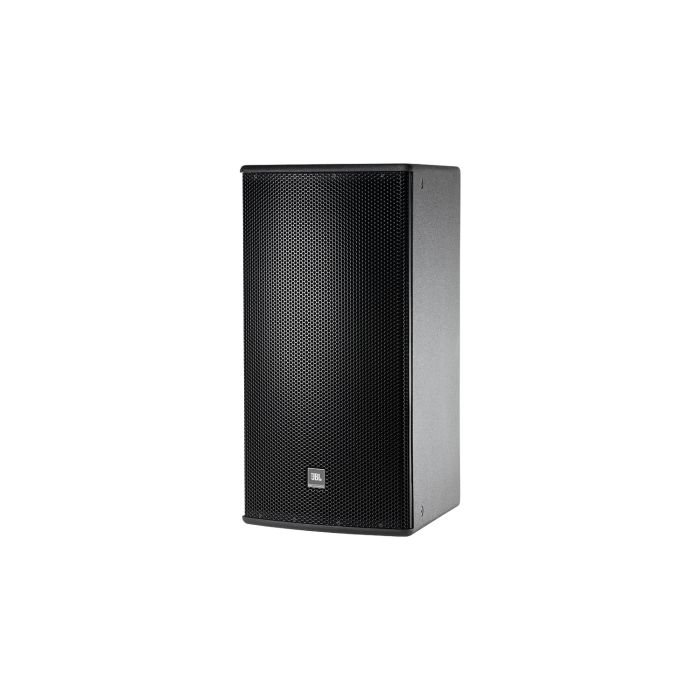

JBL AM7215/26 High Power 2-Way Loudspeaker with 1 x 15 LF & Rotatable Horn
The AM7215/26 is a professional-grade 2-way system engineered to deliver commanding lows and articulate highs with impressive immediacy and clarity. The 15-inch woofer provides a deep, room-filling foundation that captures bass frequencies with tangible presence and definition, while the rotatable horn lets you optimize high-frequency dispersion to match your room acoustics and monitoring placement. This is the kind of dependable loudspeaker designed for studio tracking rooms, live tracking environments, theater installations, and larger spaces where articulate sound reinforcement and accurate monitoring are essential to the recording process.
Audio Performance & Coverage
The AM7215/26 delivers 124 dB SPL continuous average (130 dB peak) in passive mode, with capability to reach 128 dB SPL continuous average (134 dB peak) in bi-amp mode for the low-frequency driver. A 120° x 60° coverage pattern with rotatable waveguide ensures even sound distribution throughout your space, while the 96 dB system sensitivity (1W @ 1m) provides efficient power conversion for extended dynamic range and headroom during extended sessions.
Driver Design & Construction
The system pairs a 2265H 380 mm (15 in) low-frequency driver with JBL Differential Drive dual voice coil and dual magnetic gap architecture alongside a 2432H high-frequency compression driver (75 mm / 3 in voice coil, 38 mm / 1.5 in exit). The enclosure is constructed from multi-ply birch with JBL's rugged DuraFlex™ finish and fitted with fifteen M10 threaded attachment points for secure mounting and installation flexibility in any studio or venue configuration.
Key Features
- Frequency Range (-10 dB): 34 Hz – 20 kHz
- Frequency Response (±3 dB): 40 Hz – 18 kHz
- System Sensitivity: 96 dB SPL (1W @ 1m, passive mode)
- Maximum SPL (passive mode): 124 dB-SPL continuous average, 130 dB peak
- Maximum SPL (bi-amp mode): LF 128 dB-SPL continuous / 134 dB peak; HF 133 dB-SPL continuous / 139 dB peak
- 2265H 380 mm (15 in) low-frequency driver with dual voice coil and dual magnetic gap
- 2432H high-frequency compression driver (75 mm voice coil, 38 mm exit)
- 120° x 60° coverage pattern with rotatable waveguide
- Passive crossover at 1.4 kHz with bi-amp/passive switchable modes
- Long-term power rating (IEC, passive): 600 W (2400 W peak), 100 hrs
- Multi-ply birch enclosure with DuraFlex™ finish and 14-gauge steel grille
- Fifteen M10 threaded attachment points for rigging and mounting
The AM7215/26 combines robust engineering, controlled directivity, and professional-grade power handling into a system that captures and reproduces transparent, dependable sound across tracking, mixing, and installed monitoring applications.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AM7215/26 is a high-output 2-way reference speaker suited for large control rooms, mastering labs, and live recording environments where you need transparent monitoring and honest bass reproduction across extended sessions. Its 15-inch woofer delivers a deep, articulate foundation from 40 Hz to 18 kHz (±3 dB), while the rotatable compression driver lets you optimize listening position without relocating the cabinet. Passive or bi-amp operation, 96 dB sensitivity, and 600 W long-term power rating make it reliable for critical listening and mix verification in professional studios and broadcast facilities.
Who This Is For
Great for
- ✓ Live Sound Reinforcement
- ✓ DJ Sets
- ✓ Theater Productions
- ✓ Large Venue PA Systems
Not the best pick for
- – Home Listening
- – Personal Practice
Frequently Asked Questions
What does the rotatable horn do, and why would I need it?
The rotatable waveguide lets you adjust the high-frequency dispersion pattern (120° x 60° coverage) to match your venue layout without moving the speaker cabinet. This ensures consistent treble response whether the horn points across a wide room or down a narrow hallway, eliminating dead zones and feedback-prone spots.
Can I run this in passive or bi-amp mode?
Yes. In passive mode, the internal crossover handles both drivers from a single amplifier input (600 W @ 2400 W peak, 124 dB SPL continuous). In bi-amp mode, you split low and high frequencies between separate amps, pushing the LF driver to 128 dB SPL continuous (134 dB peak) for extra headroom in large venues.
How loud does it get, and will it handle outdoor use?
The AM7215/26 delivers 124 dB SPL continuous average (130 dB peak) in standard passive mode, or up to 128 dB continuous (134 dB peak LF) in bi-amp mode—plenty for medium to large venues and outdoor events. The multi-ply birch enclosure with DuraFlex finish is road-tough, though you should cover it or use protective elements if deploying outdoors long-term.
What's the frequency response, and does it sit well in a full PA rig?
Frequency response is 40 Hz to 18 kHz (±3 dB), with a -10 dB range down to 34 Hz, providing a deep, articulate foundation for rock, pop, electronic, and theater mixes. The passive 1.4 kHz crossover integrates seamlessly into existing speaker stacks and works with standard venue and touring PA configurations.
How do I rig and mount it?
The cabinet features fifteen M10 threaded attachment points engineered for secure flying rigging and floor stacking. Standard M10 eyebolts or brackets fit these points, and the rugged 14-gauge steel grille protects both drivers during transport and setup.
