JBL AM7212/95 Two-way full range loudspeaker
Description

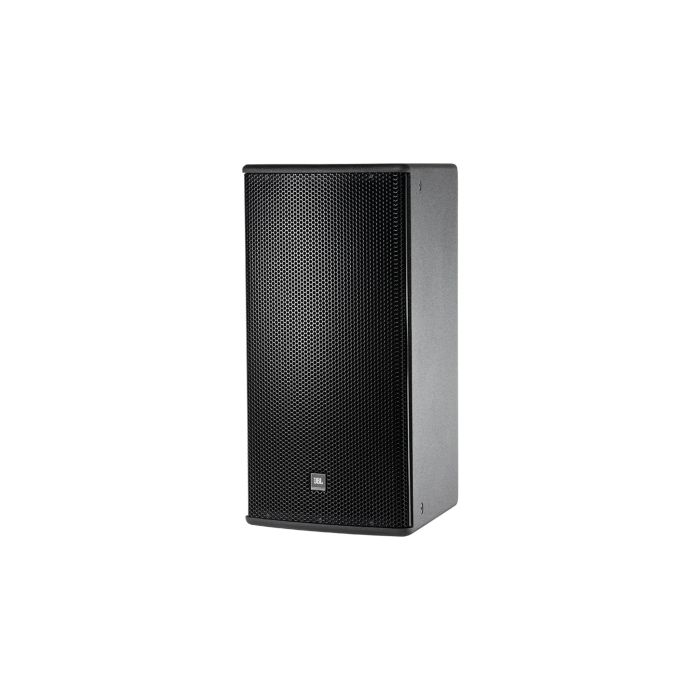

JBL AM7212/95 Two-way Full Range Loudspeaker
The AM7212/95 is a versatile full-range loudspeaker engineered for studio monitoring and live recording applications where consistent coverage and reliable output are non-negotiable. Its compact footprint and rotatable design enable flexible placement on stands or mounted positions, delivering controlled directional coverage without sacrificing SPL or tonal balance—critical for tracking rooms, control rooms, and overdub spaces.
Driver Configuration & Acoustic Design
This two-way system pairs a 2262H 12-inch low-frequency driver with dual voice coil and dual magnetic gap construction for extended bass response with a 2432H high-frequency compression driver featuring a 1.5-inch exit and 3-inch voice coil. The large-format Progressive Transition (PT) waveguide and high-slope passive networks minimize band overlap, ensuring smooth transitions across the frequency spectrum and controlled 90° x 50° coverage patterns that work well in medium to large tracking or mixing environments.
Construction & Studio-Grade Build
Heavy multi-ply birch enclosure with JBL's DuraFlex finish and extensive internal bracing provide rigid, resonance-controlled performance ideal for studio sessions. The 14-gauge steel grille lined with acoustically transparent foam protects components while maintaining clarity and sonic accuracy, and fifteen M10 threaded attachment points with a rotatable waveguide allow rapid repositioning between vertical and horizontal orientations for optimal room placement and mic-to-speaker geometry.
Key Features
- 2262H 12-inch dual voice coil, dual magnetic gap low-frequency driver
- 2432H compression driver with 1.5-inch exit and 3-inch voice coil
- 600W passive power rating
- 90° x 50° acoustic coverage pattern
- Large-format Progressive Transition (PT) waveguide
- High-slope passive crossover networks minimize band overlap
- Multi-ply birch enclosure with JBL DuraFlex finish
- Heavily braced internal construction
- 14-gauge steel grille with acoustically transparent foam lining
- Fifteen M10 threaded attachment points for installation flexibility
- Rotatable waveguide for vertical or horizontal mounting
The AM7212/95 combines robust engineering with practical mounting flexibility, making it a reliable choice for recording studios, broadcast facilities, and production spaces requiring consistent coverage and professional audio performance.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AM7212/95 is a professional installation loudspeaker optimized for live sound reinforcement and venue PA applications, not a studio monitoring or recording tool. Its controlled directional coverage, smooth frequency transitions, and extended bass response make it ideal for sound-reinforcement engineers and venue technicians managing large-scale live events, but it's not designed for home studio mixing or tracking.
Who This Is For
Great for
- ✓ Live Performance
- ✓ House of Worship
- ✓ Commercial Installation
- ✓ Large Venue PA
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What is the coverage pattern and how does it perform in large venues?
The AM7212/95 delivers a controlled 90° x 50° coverage pattern with a large-format Progressive Transition waveguide that minimizes band overlap and ensures smooth frequency transitions across the full range. Its 600W passive power rating and extended bass response from the dual voice coil, dual magnetic gap 12-inch driver provide consistent high SPL output suitable for large venue PA, houses of worship, and commercial installations.
Can it be mounted in different orientations?
Yes. The rotatable waveguide and fifteen M10 threaded attachment points allow rapid repositioning between vertical and horizontal orientations, making it equally at home mounted high on a wall or positioned horizontally depending on venue layout and coverage needs.
What makes the construction durable for touring and permanent installations?
The multi-ply birch enclosure features JBL's DuraFlex finish, extensive internal bracing for rigid performance, and a 14-gauge steel grille lined with acoustically transparent foam that protects components while maintaining clarity in demanding environments.
Is this suitable for home recording or studio monitoring?
No. The AM7212/95 is engineered for live sound reinforcement and professional venue installation; it is not designed for home recording, studio mixing, or practice applications.
What drivers does it use and how do they work together?
It pairs a 2262H 12-inch low-frequency driver with dual voice coil and dual magnetic gap construction for extended bass response with a 2432H compression driver featuring a 1.5-inch exit and 3-inch voice coil. High-slope passive crossover networks ensure smooth transitions and minimize band overlap across the frequency spectrum.
