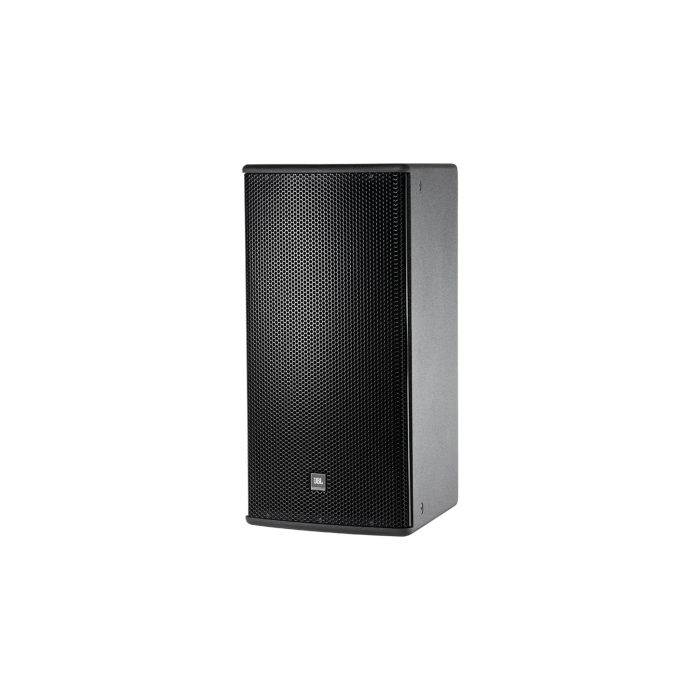

JBL AM7212/66 Two-way full range loudspeaker
Description
JBL AM7212/66 Two-Way Full Range Loudspeaker
The AM7212/66 is a professional two-way speaker engineered for consistent performance in mid-sized studio control rooms, live room monitoring, and portable session applications. Its compact footprint and rotatable waveguide design adapt to different room layouts and acoustic treatments, while the heavily braced birch enclosure delivers the structural rigidity needed to maintain coherent output at extended mixing levels without resonance coloration.
Acoustic Performance
With a frequency response of 42 Hz–20 kHz (±3 dB) and system sensitivity of 95 dB SPL @ 1 watt/1 meter, this speaker maintains transparent reproduction across the full mix spectrum without demanding excessive amplifier headroom. The 1.6 kHz passive crossover cleanly divides duties between the 300 mm dual voice coil woofer and 38 mm compression driver, ensuring seamless tonal integration for accurate mix translation and reliable maximum SPL capabilities of 126 dB continuous (LF) and 134 dB continuous (HF).
Design & Build Quality
The 60 × 60° PT (Progressive Transition) waveguide rotates for vertical or horizontal placement, accommodating studio shelving configurations and nearfield or midfield monitoring positions. Multi-ply birch construction with DuraFlex finish resists wear in active studio and tracking room environments, while the dual NL4 speakON connectors and 8 Ohm nominal impedance integrate seamlessly into standard mixing console outputs and amplifier setups.
Key Features
- JBL Differential Drive 2262H 12-inch woofer with dual voice coil and dual magnetic gap
- 2432H compression driver with 1.5-inch exit and 75 mm voice coil
- Frequency response: 42 Hz–20 kHz (±3 dB)
- Extended range: 36 Hz–20 kHz (-10 dB)
- System sensitivity: 95 dB SPL @ 1 watt/1 meter
- Maximum SPL: 126 dB continuous/132 dB peak (LF), 134 dB continuous/140 dB peak (HF) in bi-amp mode
- Passive mode power handling: 600W continuous (2400W peak)
- 1.6 kHz passive crossover frequency
- 60 × 60° rotatable PT waveguide for flexible coverage patterns
- Nominal impedance: 8 Ohms
- Dual NL4 speakON connectors
- Dimensions: 28" × 16" × 14"; Weight: 50 lbs
The AM7212/66 combines proven JBL driver technology with practical studio flexibility, delivering reliable midfield monitoring and impressive output capability in a portable, mixable package.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7212/66 is a professional full-range monitor and recording-session loudspeaker that handles live tracking, playback, and mixing in studios and project rooms with full-spectrum clarity. Its 42 Hz–20 kHz response, 95 dB sensitivity, and rotatable waveguide let you position it flexibly for accurate stereo imaging and dependable monitoring during sessions. Choose it for transparent midfield coverage, smooth driver integration, and the SPL headroom to support serious recording work without coloration.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Studio Sessions
- ✓ Mid-sized venues
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What size woofer and compression driver does the AM7212/66 use?
It features a JBL Differential Drive 2262H 12-inch woofer with dual voice coil and dual magnetic gap, paired with a 2432H compression driver with a 1.5-inch exit and 75 mm voice coil. The 1.6 kHz passive crossover divides the frequency range cleanly between them.
What are the maximum SPL and power handling specs?
The speaker delivers 126 dB continuous (132 dB peak) low-frequency SPL and 134 dB continuous (140 dB peak) high-frequency SPL in bi-amp mode. In passive mode, it handles 600 W continuous (2400 W peak) and maintains 8 Ohm nominal impedance for standard pro audio systems.
Can the waveguide be repositioned, and how portable is this speaker?
Yes, the 60 × 60° PT (Progressive Transition) waveguide rotates to vertical or horizontal coverage, adapting to different room layouts and mounting needs. At 50 lbs with compact 28" × 16" × 14" dimensions, it is designed for touring and multi-venue use.
What frequency range does it cover, and how does it compare to other touring speakers?
The AM7212/66 covers 42 Hz–20 kHz (±3 dB) with extended response down to 36 Hz (–10 dB), placing it in the same class as the Electro-Voice ZLX, QSC K12.2, and Yamaha DXR12. Its 95 dB/watt sensitivity and 1.6 kHz crossover ensure efficient, smooth operation without excessive amplifier demand.
What connectors and build features support touring use?
Dual NL4 speakON connectors allow redundant signal and ground paths for live reliability. The heavily braced birch enclosure with DuraFlex finish resists road wear and venue damage while maintaining structural rigidity at high SPL.
