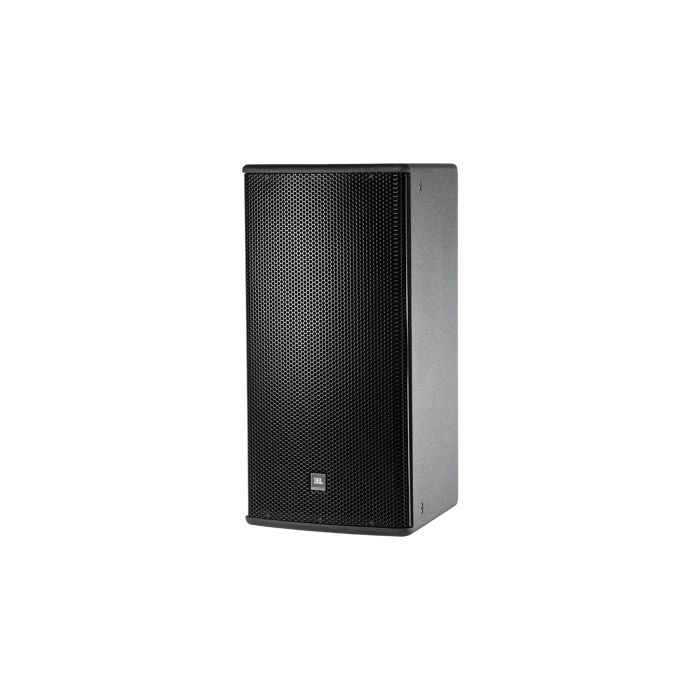

JBL AM7212/26 Two-way full range loudspeaker
Description
JBL AM7212/26 Two-way Full Range Loudspeaker
The JBL AM7212/26 is a versatile midfield monitor and main reinforcement speaker designed for studio monitoring, live recording, and installed sound work. Its robust birch enclosure and precision-engineered driver pairing produce punchy lows and crisp highs with minimal distortion, making it an excellent choice for capturing accurate reference sound, tracking sessions, and mixing environments where dependable, honest output is essential.
Audio Performance
This system achieves 95 dB SPL sensitivity (1W @ 1m) and reaches 133 dB-SPL continuous average in bi-amp mode, with HF peaks at 139 dB, ensuring clean headroom and dynamic range without compression artifacts. The 42 Hz – 18 kHz (±3 dB) frequency response and 120° x 60° coverage pattern deliver smooth, articulate sound across the stereo field, allowing engineers and producers to work confidently in medium-sized control rooms and tracking spaces without phase anomalies or frequency dead zones.
Design & Build
The enclosure features multi-ply birch construction with DuraFlex finish and heavy internal bracing, paired with a 14-gauge steel grille and acoustically transparent foam lining. Fifteen M10 threaded attachment points and a rotatable waveguide allow flexible positioning and orientation for vertical or horizontal deployment, adapting to studio layouts and room acoustics without compromising tonal balance.
Key Features
- JBL Differential Drive dual voice coil 2262H 300 mm (12 in) low-frequency driver
- 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver
- Frequency range (-10 dB): 36 Hz – 20 kHz
- Frequency response (±3 dB): 42 Hz – 18 kHz
- Coverage pattern: 120° x 60°
- System sensitivity: 95 dB SPL (1W @ 1m, passive mode)
- Maximum SPL (bi-amp mode): LF 126 dB-SPL continuous / 132 dB peak; HF 133 dB-SPL continuous / 139 dB peak
- Maximum SPL (passive mode): 123 dB-SPL continuous / 129 dB peak
- Bi-amp/passive switchable crossover modes with 1.5 kHz passive crossover frequency
- Directivity factor (Q): 8.2; directivity index (DI): 9.1 dB
- Trapezoid multi-ply birch enclosure with DuraFlex finish and heavy bracing
- Rotatable waveguide for vertical or horizontal orientation; fifteen M10 threaded rigging points
The AM7212/26 combines professional-grade components, efficient power handling, and rigid construction to deliver consistent, transparent reinforcement in studio recording, mixing, and production workflows.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7212/26 is a professional two-way loudspeaker designed for installed sound systems and location recording where full-range monitoring or main reinforcement capture is critical. Its wide 120° x 60° coverage, articulate frequency response (42 Hz–18 kHz ±3 dB), and 95 dB SPL sensitivity make it effective for mixing, playback reference, and multitrack session monitoring in larger rooms or portable setups. Its robust birch enclosure and switchable bi-amp/passive modes let you adapt quickly to different studio or on-location workflows without compromising sonic integrity.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ installed sound systems
Not the best pick for
- – home listening
- – intimate venues
- – practice spaces
Skill level: Professional
Frequently Asked Questions
What is the frequency response and coverage pattern?
The AM7212/26 covers 42 Hz to 18 kHz (±3 dB), with a 120° horizontal by 60° vertical coverage pattern. This wide coverage ensures smooth, articulate sound across multiple listening positions without weak zones or proximity issues.
What is the maximum SPL output?
In bi-amp mode, the system delivers 133 dB SPL continuous average with HF peaks at 139 dB, and 126 dB SPL LF continuous (132 dB peak). In passive mode, maximum SPL is 123 dB continuous (129 dB peak).
Can this speaker be rigged or oriented different ways?
Yes. The AM7212/26 features fifteen M10 threaded attachment points and a rotatable waveguide, allowing flexible rigging and vertical or horizontal deployment in any installed space or touring rig.
What drivers are inside, and how are they crossed over?
The speaker uses a JBL Differential Drive 12-inch (300 mm) low-frequency woofer and a 1.5-inch (38 mm) exit compression driver with a 75 mm voice coil. It includes a switchable 1.5 kHz passive crossover for bi-amp or passive operation.
What makes this speaker durable for touring and venues?
The enclosure is built from multi-ply birch with heavy internal bracing, DuraFlex finish, and a 14-gauge steel grille with acoustically transparent foam lining. This construction ensures consistent performance and protection in mobile and installed environments.
