JBL AM7212/00 S/m, AM7212/00
Description

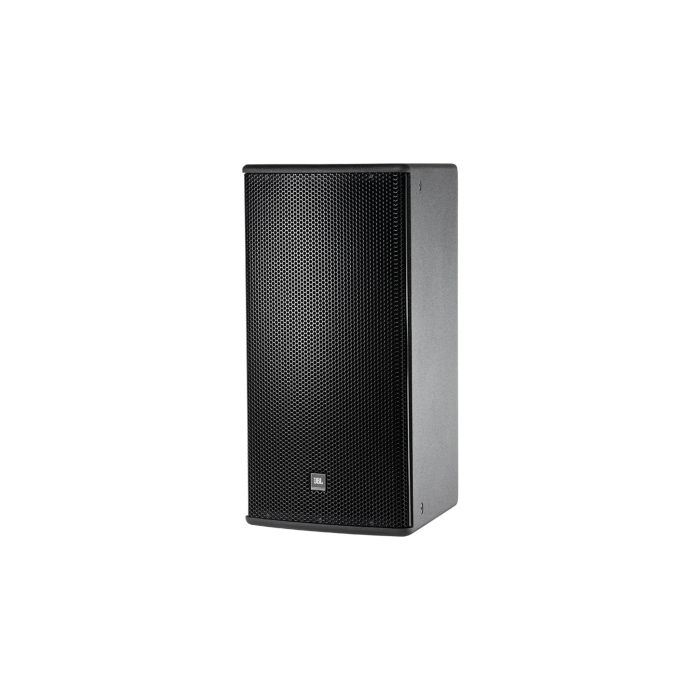

JBL AM7212/00 S/m 12" Two-Way Passive/Bi-Amp Speaker System
The JBL AM7212/00 is a versatile mid-size loudspeaker engineered for consistent, controlled coverage in studio monitoring and recording applications. Its compact footprint and flexible mounting options make it equally suited as a main reference monitor, secondary playback system, or portable mixing environment solution, delivering professional output without requiring extensive amplification infrastructure.
Sonic Performance & Frequency Response
This system combines a 12-inch low-frequency driver with a 1.5-inch compression driver on a rotatable waveguide, covering a 100° × 100° pattern that maintains coherent sound across its listening area and mixing sweet spot. Peak output reaches 132 dB-SPL (LF) and 137 dB-SPL (HF) in bi-amp mode, with 95 dB SPL sensitivity in passive mode, providing headroom for tracking and mixing sessions while remaining sonically transparent at moderate levels.
Construction & Monitoring Durability
The enclosure is constructed from braced multi-ply birch with JBL's DuraFlex finish, wrapped in a 14-gauge perforated steel grille lined with acoustically transparent foam for stability in mobile studio setups and long-term session work. The speaker features 15 M10 threaded suspension points and a rotatable waveguide for vertical or horizontal orientation, enabling flexible placement strategies within recording spaces and control rooms.
Key Features
- Frequency response ±3 dB: 42 Hz – 20 kHz
- Frequency range (-10 dB): 36 Hz – 20 kHz
- Coverage pattern: 100° × 100° with directivity index of 9.1 dB
- 2262H 300mm (12 in) low-frequency driver
- 2432H high-frequency compression driver, 38 mm exit / 75 mm voice-coil
- Passive crossover at 1.5 kHz with bi-amp/passive switchable modes
- Long-term power rating (IEC passive): 600 W continuous (2400 W peak) for 100 hours
- Low-frequency transducer: 1000 W AES (4000 W peak, 2 hrs); 700 W (2800 W peak, 100 hrs)
- High-frequency transducer: 100 W AES (400 W peak, 2 hrs)
- Nominal impedance: 8 Ohms
- 15 M10 threaded suspension points with rotatable waveguide
- Multi-ply birch enclosure with DuraFlex finish and heavy bracing
The AM7212/00 delivers accurate, controlled monitoring through a balanced design that prioritizes transparency, frequency response consistency, and straightforward integration into both temporary and permanent studio installations.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7212/00 is a passive/bi-amp two-way speaker optimized for live-sound reinforcement and installed applications, not a studio recording tool. Its 100° × 100° coverage pattern, balanced tone, and 600 W continuous power handling make it suited for capturing full-range reinforcement in performance spaces, but it is engineered for deployment and SPL output rather than studio monitoring or recording. If your workflow centers on recording or mixing in a control room, this is not the right choice.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Installed Sound
- ✓ Touring
- ✓ Stage Monitoring
Not the best pick for
- – Home Recording
- – Studio Sessions
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What is the AM7212/00 best suited for?
The AM7212/00 excels in live-sound reinforcement, touring, installed sound systems, and stage monitoring. Its 100° × 100° coverage pattern and 132–137 dB SPL output make it ideal for mid-sized venues where consistent, reliable coverage across the listening area is critical. It is not designed for studio recording or mixing.
Can this speaker work in passive or bi-amp mode?
Yes. The AM7212/00 includes a passive crossover at 1.5 kHz and can operate in either passive mode (95 dB SPL sensitivity, 600 W continuous rating) or bi-amp mode (132–137 dB SPL peak output), giving you flexibility to match your amplifier setup and venue demands.
How much space does it take up, and can I mount it different ways?
The AM7212/00 features a compact footprint with 15 M10 threaded suspension points and a rotatable waveguide, allowing vertical or horizontal mounting and flexible rigging in tight spaces. Its braced multi-ply birch construction and steel grille handle touring and permanent installations without damage.
What frequency range does it cover?
The AM7212/00 covers 42 Hz – 20 kHz at ±3 dB and extends to 36 Hz – 20 kHz at -10 dB, delivering balanced midrange articulation with controlled low-end and articulate highs suitable for full-range reinforcement in live and installed sound applications.
Is this speaker durable for touring and outdoor use?
Yes. The cabinet is constructed from braced multi-ply birch with JBL's DuraFlex finish and wrapped in a 14-gauge perforated steel grille lined with acoustically transparent foam, designed to withstand the rigors of touring and installed environments.
