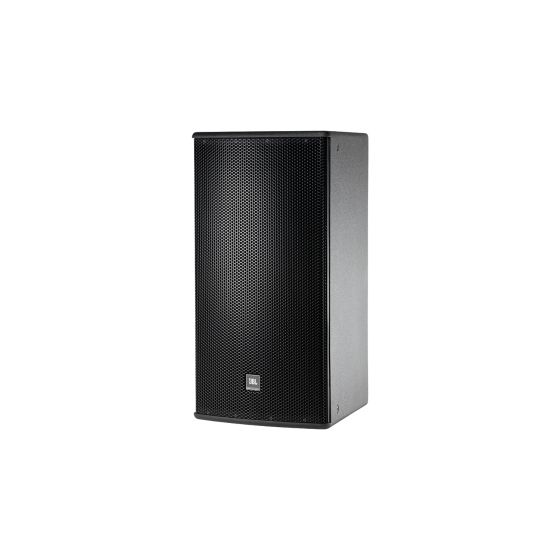

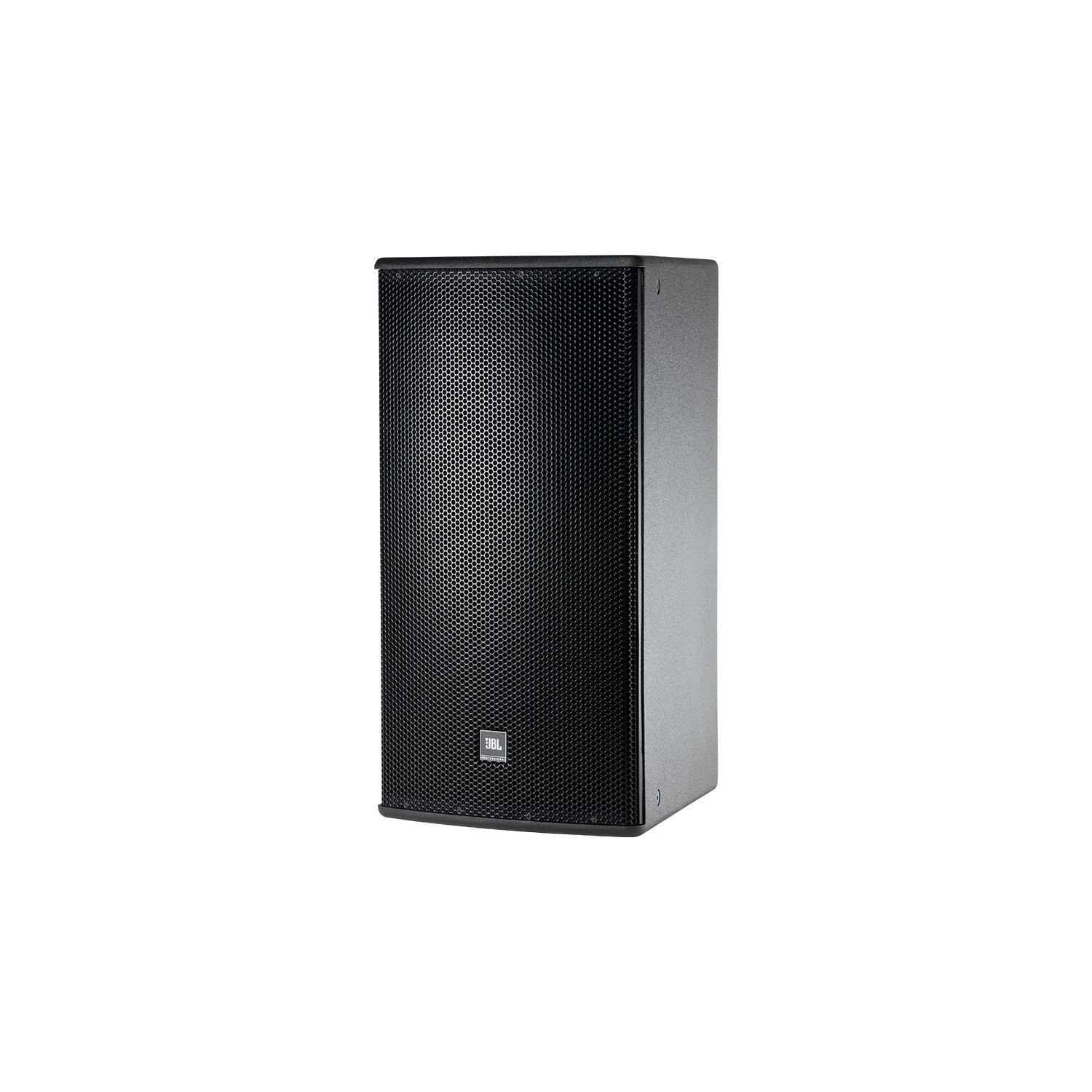

JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF
In stock
- SKU
- AM5215/66
Description
JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF
The AM5215/66 delivers powerful, articulate full-range performance in a compact format. The 15-inch woofer produces deep, controlled low-end that sits solidly in mixes, while the compression driver reproduces crisp highs with exceptional clarity and detail. Built on proven JBL engineering, this 2-way system excels across tracking sessions, live recording, broadcast, and installed monitoring applications. The heavily braced multiply birch enclosure and switchable bi-amp/passive configuration adapt to varied studio and venue setups while maintaining transparent, consistent sound reproduction.
Recording & Mix Performance
Maximum output reaches 130 dB-SPL peak in passive mode with the biamp configuration pushing 131 dB continuous from the LF driver and 136 dB peak from the HF driver, offering headroom for accurate mixing and monitoring without compression or distortion. The 2 kHz passive crossover frequency and 60° x 60° rotatable waveguide ensure smooth driver integration and well-controlled dispersion for accurate stereo imaging, while 98 dB sensitivity in passive mode means efficient operation across a wide range of power amplifiers and interface configurations.
Enclosure & Driver Engineering

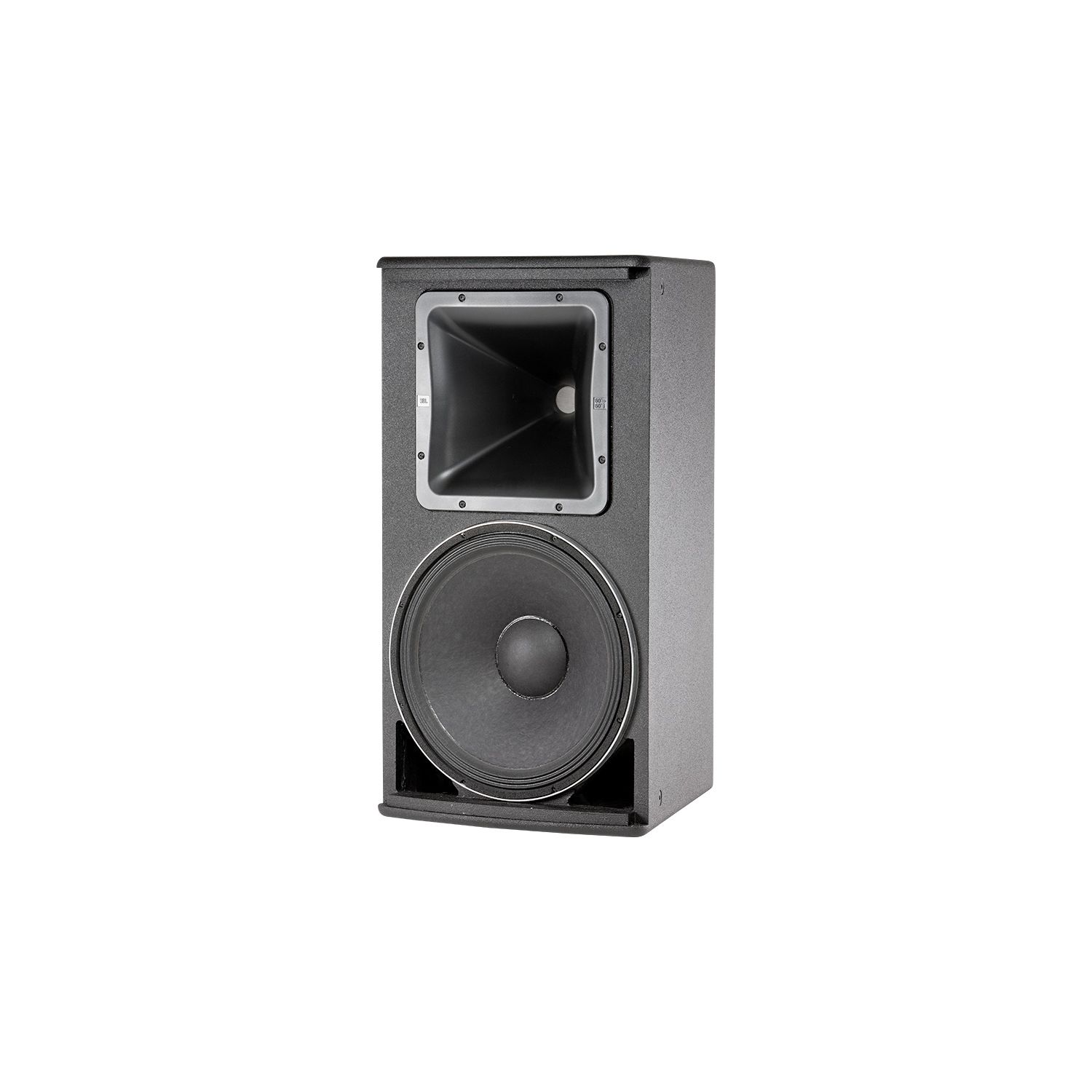

The enclosure measures 30.8" × 16.6" × 19.85" and weighs 55 lbs, striking a balance between acoustic mass for extended low-end response and practical size for studio placement and mobile rigs. Internal bracing and the DuraFlex™ finish on multiply birch construction minimize cabinet resonance and environmental sensitivity, while the dual voice coil, dual magnetic gap 265H-1 380 mm (15") LF driver and 2408H-1 compression driver with 38 mm voice coil and 1.5" exit deliver repeatable, accurate reproduction across long sessions.
Key Features
- Frequency Response: 35 Hz – 20 kHz (-10 dB); 41 Hz – 20 kHz (±3 dB)
- Coverage Pattern: 60° × 60° rotatable waveguide
- Bi-amp/Passive switchable crossover with 2 kHz passive crossover frequency
- 265H-1 380 mm (15") dual voice coil, dual magnetic gap low frequency driver
- 2408H-1 compression driver with 38 mm (1.5") voice coil and 1.5" exit
- Power Rating (AES): LF 500 W (2000 W peak, 2 hrs) / 350 W (1400 W peak, 100 hrs); HF 40 W (160 W peak, 2 hrs)
- Maximum SPL: Bi-amp 125 dB continuous LF / 130 dB continuous HF; Passive 124 dB continuous (130 dB peak)
- System Sensitivity: 98 dB SPL at 1W @ 1m (passive mode)
- NL4 Neutrik speakON and covered barrier strip terminal connectors
- Dimensions: 30.8" × 16.6" × 19.85" (783 × 422 × 504 mm)
- Weight: 55 lbs (25 kg)
- Multiply birch enclosure with DuraFlex™ finish and heavy internal bracing
The AM5215/66 combines substantial output capability, flexible amplification options, and precise driver engineering to serve as a dependable reference tool for recording, monitoring, and mixing applications.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The AM5215/66 is a reference-grade studio monitor and tracking speaker that pairs a 15-inch dual voice-coil woofer with a precision compression driver to deliver articulate, detailed midrange and treble alongside authoritative low-end extension down to 35 Hz. Its 98 dB passive sensitivity and flexible bi-amp/passive operation make it adapt to both compact control-room setups and larger tracking spaces where you need honest, full-spectrum feedback without coloration. High output and smooth driver integration across a 2 kHz crossover means your mix decisions translate accurately to other playback systems.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Gigging
Frequently Asked Questions
Can I use this speaker in both passive and powered configurations?
Yes. The AM5215/66 features a switchable bi-amp/passive crossover, so you can run it passively from a single amplifier channel or split the LF and HF signals to separate amplifiers for more precise control and output capability.
What kind of output levels does this speaker reach?
In passive mode, it hits 130 dB peak SPL; in bi-amp mode, the LF driver delivers 131 dB continuous and the HF driver reaches 136 dB peak. Sensitivity is 98 dB at 1W, making it efficient across a wide range of amplifier pairings.
How portable is a 55 lb speaker for touring?
At 55 lbs and 30.8" × 16.6" × 19.85", the cabinet balances substantial acoustic mass with one-person portability. The heavily braced multiply birch enclosure with DuraFlex finish is built to withstand road use and venue setups without degradation.
What frequency range does the AM5215/66 cover?
Frequency response is 35 Hz to 20 kHz at -10 dB, with a tighter ±3 dB range from 41 Hz to 20 kHz. The 60° × 60° rotatable waveguide and 2 kHz crossover ensure smooth integration across the entire spectrum.
What amplifier power do I need to drive this speaker?
The LF driver is rated for 500 W (2000 W peak short-term) and the HF for 40 W (160 W peak). With 98 dB sensitivity, modest amplifier power can achieve substantial output, though the speaker scales well with larger rigs for maximum SPL applications.
