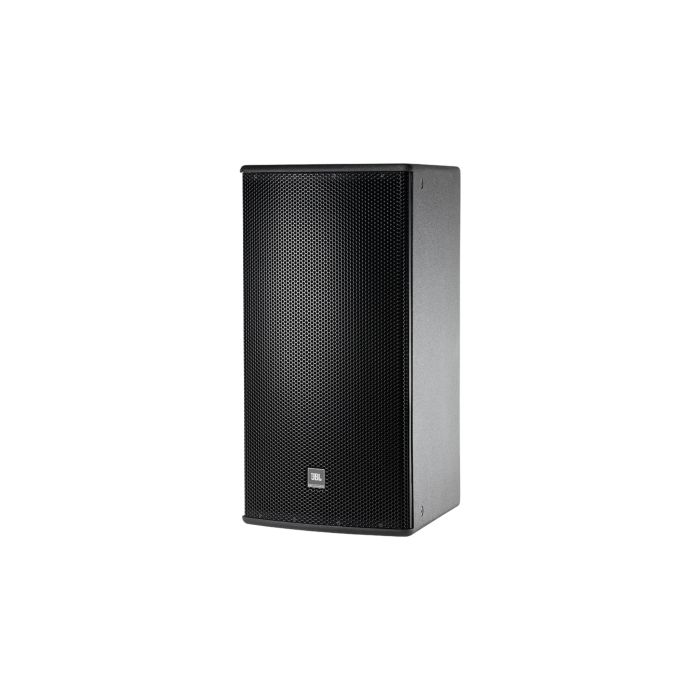

JBL AM5215/64 Two-way full range loudspeaker
Description
JBL AM5215/64 Two-way Full Range Loudspeaker
The AM5215/64 is a compact yet capable full-range system that excels in studio monitoring, small-to-medium venue reinforcement, and installed playback applications. Its lightweight 55 lb construction and rotatable waveguide make it manageable for repositioning within tight spaces without compromising acoustic performance or build integrity. This is a dependable reference tool designed for consistent, transparent operation across mixing, mastering, live reinforcement, and permanent installation contexts.
Acoustic Design & Coverage
The dual-driver configuration pairs a 380 mm (15 in) differential drive low-frequency transducer with a 38 mm (1.5 in) compression driver for coherent full-range coverage across a 60° x 40° pattern. The high-slope passive crossover network minimizes band overlap and ensures smooth integration between drivers, while the rotatable waveguide allows vertical or horizontal orientation to optimize listening axis and room placement for accurate stereo imaging and modal response.
Construction & Connectivity
Heavy bracing and multiply birch enclosure with DuraFlex finish provide durability against transport and studio wear, while the 14-gauge steel grille with acoustically transparent foam lining protects drivers without coloring the sound. Connections include both NL4 Neutrik speakON and barrier strip terminals accepting up to 10 AWG wire, with 15 M10 threaded attachment points for mounting or rigging; the system supports bi-amped or passive operation via selectable switch.
Key Features
- 2-way, full-range loudspeaker system with medium power capacity
- JBL 265H-1 differential drive low-frequency driver, 380 mm (15 in) with dual voice coil and dual magnetic gap
- JBL 2408H-1 compression driver, 38 mm (1.5 in) exit and voice coil
- 60° x 40° coverage pattern
- Rotatable waveguide for vertical or horizontal orientation
- Multiply birch enclosure with DuraFlex finish, heavily braced
- 15 M10 threaded attachment points for flying and rigging
- 14-gauge steel grille with acoustically transparent foam lining
- NL4 Neutrik speakON and barrier strip terminal connectivity (10 AWG capable)
- High-slope passive network for minimal band overlap
- Selectable bi-amped or passive operation
- Net weight: 55 lbs (25 kg); Dimensions: 30.8" H × 16.6" W × 19.85" D
The AM5215/64 delivers professional audio reproduction in a footprint compact enough to integrate into project studios and control rooms yet rugged enough to withstand repeated repositioning and multi-application use across mixing, performance, and installed playback scenarios.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM5215/64 is a full-range reference loudspeaker designed for permanent or semi-permanent studio monitoring, acoustic testing, or small-format playback verification in professional facilities. Its balanced two-way design and high-slope passive crossover ensure transparent, coherent reproduction across the frequency spectrum, making it useful for critical listening and system verification in mid-sized control rooms or live broadcast setups. The 55 lb weight and NL4 Neutrik connections support flexible mounting and integration into hybrid live-to-tape or broadcast workflows where full-range fidelity is essential.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Corporate Events
- ✓ Touring
- ✓ Installed Sound
Not the best pick for
- – Home Recording
- – Practice
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What does the rotatable waveguide do, and when would I use it?
The rotatable waveguide lets you orient the speaker vertically or horizontally to match your room's geometry and achieve even coverage without dead zones. Use vertical orientation for typical venue stacks or horizontal for wide, shallow coverage in corporate installs or long-throw applications.
Can I run this speaker passively, or do I need separate amplification?
The AM5215/64 supports both bi-amped operation (separate amps for low and high drivers) and passive operation (single amp feeding a built-in crossover). A selectable switch lets you choose the mode that fits your system architecture.
How does the 55 lb weight affect portability and rigging options?
At 55 pounds, this speaker is light enough for one person to carry or deploy in mobile applications, yet it includes 15 M10 threaded attachment points for flying rigs or permanent bracket mounting. The dual-purpose design makes it ideal for touring or permanent installs without compromise.
What connectivity options does it have, and what amplifier power does it need?
The speaker features both NL4 Neutrik speakON connectors and barrier strip terminals (rated for up to 10 AWG wire), so you can integrate it into any live or installed system. The description lists 'medium power capacity,' meaning it works with mid-sized touring or venue amplifiers; consult your system integrator or JBL for specific wattage recommendations based on your throw distance and SPL requirements.
How does the construction hold up to touring and repeated deployment?
The multiply birch enclosure with DuraFlex finish and heavy internal bracing resists transport wear, while the 14-gauge steel grille with acoustically transparent foam protects the drivers without degrading sound. This design is proven across JBL's touring and installed-sound lines for long-term reliability.
