JBL AM5212/95 Two-way full range loudspeaker B-Stock
In stock
Only 1 left
- SKU
- AM5212-95-B
Description

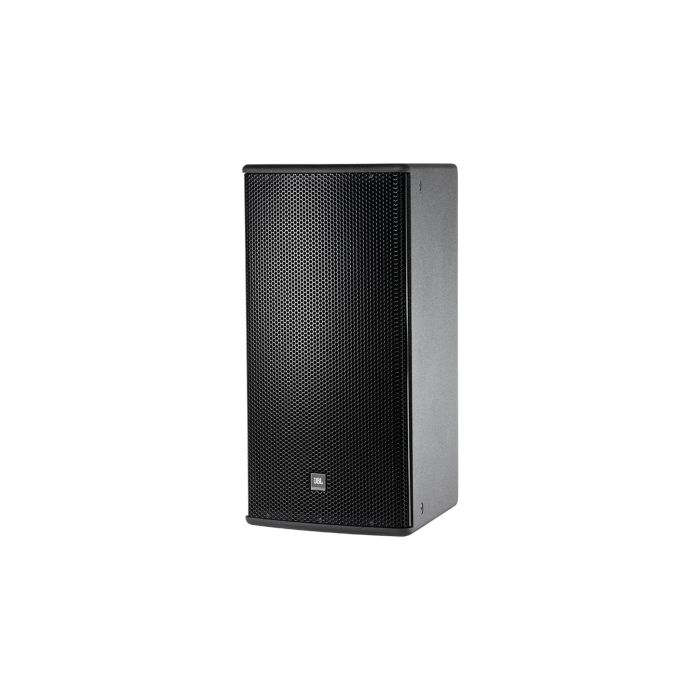

JBL AM5212/95 Two-way Full Range Loudspeaker
The JBL AM5212/95 is a compact yet powerful full-range speaker engineered for installed sound applications where consistent coverage and high output are essential. Its compact footprint and rotatable waveguide allow flexible deployment in spaces where traditional large-format systems won't fit, while maintaining the sonic authority expected from JBL's professional cinema lineage.
Audio Performance & Output Capability
This speaker delivers impressive peak output of 4000W with 1000W continuous power handling, reaching 132 dB SPL at 1 meter—sufficient for mid-sized venues and installed applications. The 45 Hz to 20 kHz frequency response covers the full audible spectrum with a carefully tuned 1.4 kHz passive crossover that integrates the low and high-frequency drivers seamlessly.
Design & Driver Configuration
The system pairs a 12-inch (300 mm) JBL 262H-1 differential drive low-frequency driver with dual voice coil and dual magnetic gap technology for accurate bass reproduction with a 1.5-inch (38 mm) exit, 1.5-inch (38 mm) voice-coil 2408H-1 compression driver for high-frequency clarity. The rotatable progressive transition waveguide accommodates both vertical and horizontal mounting orientations, adapting to the acoustics of any installation.
Key Features
- 12-inch (300 mm) JBL 262H-1 differential drive low-frequency driver with dual voice coil and dual magnetic gap
- 1.5-inch (38 mm) exit, 1.5-inch (38 mm) voice-coil 2408H-1 compression driver for high-frequency reproduction
- Frequency response of 45 Hz – 20 kHz
- Maximum SPL of 132 dB at 1 meter
- Power handling: 1000W continuous, 4000W peak
- 8-ohm impedance
- 90° x 50° coverage pattern
- Rotatable progressive transition waveguide for vertical or horizontal orientation
- Switchable bi-amp/passive configuration with 1.4 kHz passive crossover frequency
- NL4 Neutrik speakON and CE-compliant covered barrier strip terminals
- Dimensions: 26.4" x 18.6" x 15.7" (670 mm x 472 mm x 398 mm)
- Weight: 73.4 lbs (33.3 kg)
The AM5212/95 combines high output capability, flexible deployment options, and professional JBL engineering in a format suited to installed sound, live reinforcement, and fixed installations where space and acoustical constraints demand intelligent design.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The AM5212/95 is a professional full-range loudspeaker designed for installed and reinforcement applications, not studio monitoring or home recording. Its high output (132 dB SPL), full 45 Hz–20 kHz response, and seamless passive crossover make it suited to live venues and permanent installations rather than tracking, mixing, or mastering environments.
Who This Is For
Great for
- ✓ installed sound
- ✓ live reinforcement
- ✓ fixed installations
- ✓ mid-sized venues
Not the best pick for
- – portable mobile DJ
- – home listening
Skill level: Professional
Frequently Asked Questions
What does B-Stock mean for this speaker?
B-Stock indicates the unit is fully functional and meets all performance specifications, but may have minor cosmetic imperfections from handling or display. Sonic performance and reliability are not affected.
Is this speaker suitable for a home studio or recording environment?
No. The AM5212/95 is engineered for installed sound and live reinforcement in mid-sized venues. Home studio owners should use near-field studio monitors designed for mixing and tracking instead.
Can the waveguide be rotated to fit different mounting orientations?
Yes. The rotatable progressive transition waveguide supports both vertical and horizontal mounting, giving you flexibility to adapt the 90° x 50° coverage pattern to your installation's acoustics.
What is the power handling and SPL output?
The speaker handles 1000W continuous power and 4000W peak, delivering 132 dB SPL at 1 meter. This output is designed for mid-sized venues and installed applications requiring consistent high-volume coverage.
What are the woofer and tweeter specifications?
A 12-inch JBL 262H-1 differential-drive low-frequency driver with dual voice coil and magnetic gap pairs with a 1.5-inch exit 2408H-1 compression driver for high-frequency clarity, crossed over at 1.4 kHz.
