JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF B-Stock
In stock
Only 1 left
- SKU
- AM5212-64-B
Description

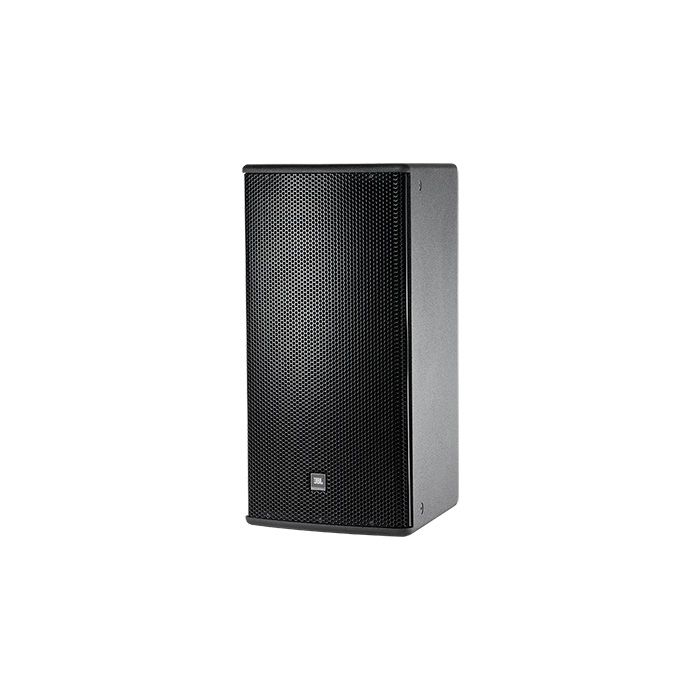

JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF
The AM5212/64 is a professional 2-way loudspeaker engineered for powerful, articulate sound that responds with impressive immediacy and clarity. The 12-inch woofer delivers punchy low-end presence with tight control, while the precisely tuned horn-loaded tweeter cuts through with crystalline highs, making this system feel responsive and alive This running live vocals, mixing in the studio, or pushing full-range music through a demanding venue. The balanced frequency response invites you to dial in your exact sonic vision without fighting the speaker, and the robust construction means you can drive this system hard without compromising definition or introducing listener fatigue.
Audio Performance & Coverage
This system achieves a frequency response of ±3 dB from 43 Hz to 18 kHz, delivering extended low-end reach and transparent highs across the full audible spectrum. The 60° × 40° rotatable waveguide provides controlled directivity and consistent coverage, while the 96 dB SPL sensitivity in passive mode means the speaker responds efficiently to moderate input levels, and its peak output reaches 131 dB SPL continuous average in bi-amp mode, making it suitable for live sound reinforcement and critical monitoring applications alike.
Design & Build Quality
Construction centers on a multiply birch cabinet heavily braced and finished in JBL's DuraFlex™ coating for durability and protection in touring and fixed-installation environments. The 262H-1 300 mm woofer features JBL Differential Drive® dual voice coil and dual magnetic gap technology for enhanced control and distortion reduction, while the 2408H-1 compression driver ensures articulate midrange and treble reproduction. At 45 lbs, the cabinet strikes a practical balance between portability and acoustic mass.
Key Features
- 2-way, full-range loudspeaker system with rotatable waveguide for vertical or horizontal orientation
- 262H-1 300 mm (12 in) low frequency driver with JBL Differential Drive® dual voice coil and dual magnetic gap
- 2408H-1 high frequency 38 mm compression driver with 38 mm voice coil exit
- Frequency response ±3 dB: 43 Hz – 18 kHz; extended range to 37 Hz (–10 dB)
- 60° × 40° coverage pattern with rotatable waveguide for flexible deployment
- System sensitivity: 96 dB SPL (1W @ 1m) in passive mode
- Long-term power rating (IEC): 300 W (1200 W peak) passive mode
- Maximum SPL: 121 dB continuous average (127 dB peak) in passive mode; 122 dB LF / 131 dB HF in bi-amp mode
- Switchable bi-amp and passive crossover modes at 1.6 kHz
- NL4 Neutrik speakON® and barrier strip connectivity
- Multiply birch cabinet with JBL DuraFlex™ finish and heavy internal bracing
- Dimensions: 28.06" H × 14.6" W × 18.1" D; net weight 45 lbs
The AM5212/64 rewards your attention with transparent, engaging sound that makes every detail matter—a dependable choice for sound engineers seeking honest monitoring, live sound professionals needing reliable output, or audio professionals who demand integrity in their speakers.
More Information
| Condition | Refurbished |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AM5212/64 is a professional passive loudspeaker designed for critical studio monitoring and full-range recording sessions, with a balanced frequency response (43 Hz–18 kHz ±3 dB) that reveals mix detail without coloration. The 12-inch woofer and compression driver combination delivers articulate midrange and extended low end, so you hear exactly what you've recorded without the speaker adding fatigue or masking problems. Ideal for mixing and tracking in professional and project studios where dependable, transparent monitoring makes the difference between a good take and a great one.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Touring
- ✓ Gigging
Not the best pick for
- – Portable casual use
- – Small bedroom monitoring
Skill level: Professional
Frequently Asked Questions
What does B-Stock mean for this speaker?
B-Stock means the AM5212/64 is fully functional and meets all performance specs, but may have minor cosmetic imperfections from handling or display. Audio quality and build integrity are identical to new.
Can I use this in both live sound and studio monitoring?
Yes. The AM5212/64 excels in both environments—it delivers 131 dB SPL peak output in bi-amp mode for live venues and full-range music reinforcement, and its balanced frequency response (±3 dB, 43 Hz–18 kHz) makes it equally reliable for critical studio mixing and monitoring.
What are the connectivity and power options?
The speaker accepts both passive and bi-amp input via NL4 Neutrik speakON and barrier strip connectors, with a switchable crossover at 1.6 kHz. Long-term passive power rating is 300 W (1200 W peak); bi-amp mode handles 122 dB LF and 131 dB HF maximum SPL.
How portable is a 45 lb cabinet for touring and venue work?
At 45 lbs, the AM5212/64 strikes a balance between portability and acoustic mass—manageable for one person to carry, but substantial enough to deliver the cabinet bracing and rigidity needed for consistent sound in touring and installation environments.
What coverage pattern does the rotatable waveguide provide?
The 60° × 40° rotatable waveguide gives you flexible deployment—you can orient it vertically or horizontally depending on venue layout and audience placement, ensuring consistent coverage without dead zones.
