JBL AM5212/26-WH Two-way full range loudspeaker (white)
Share
- Brand new in original box
- Full JBL manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- AM5212-26-WH
. Description

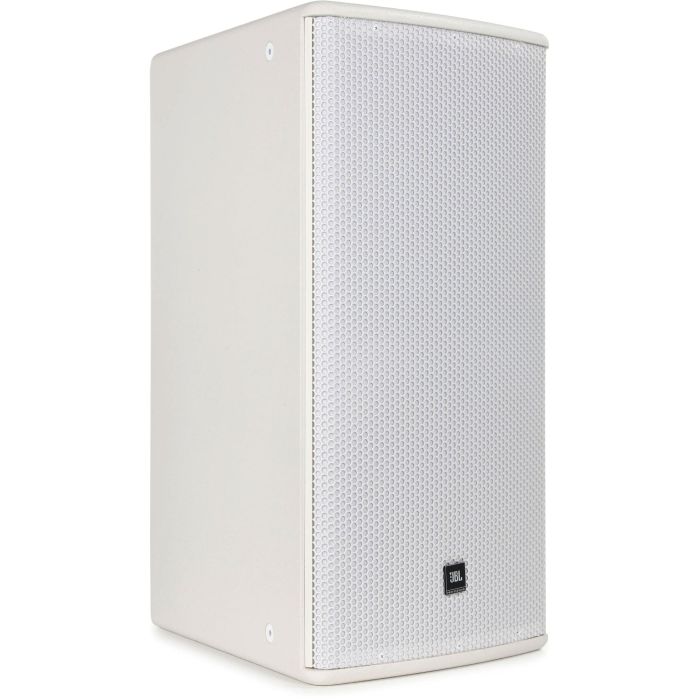

JBL AM5212/26-WH Two-way Full Range Loudspeaker
The AM5212/26-WH is a versatile two-way full-range speaker engineered for studio monitoring, small venue recording, and distributed audio production setups. Its compact footprint and rotatable waveguide adapt to control room layouts and mobile recording rigs, while the white DuraFlex finish integrates seamlessly into contemporary studio spaces. This system delivers consistent coverage and controlled directivity ideal for nearfield and mid-field mixing applications.
Acoustic Performance
The combination of a 12-inch differential drive low-frequency driver and 1.5-inch high-frequency compression driver produces balanced output across the audible spectrum with 96 dB-SPL sensitivity in passive mode and 122–129 dB-SPL continuous maximum output depending on operating mode. The 1.5 kHz crossover and PT Progressive Transition waveguide with passive networks ensure smooth frequency blending and natural off-axis response, critical for accurate monitoring across the mix suite.
Mixing & Production Flexibility
Dual operational modes—bi-amp and passive—allow integration into both amplified interface setups and powered mixing systems without modification. The rotatable waveguide accommodates vertical or horizontal mounting orientations, while the 120° x 60° coverage pattern and manageable 45 lb weight facilitate positioning in control rooms and enable quick repositioning for acoustic testing or multi-monitor mix configurations.
Key Features
- 12-inch low-frequency driver with JBL Differential Drive dual voice coil and dual magnetic gap (262H-1)
- 1.5-inch high-frequency compression driver (2408H-1)
- PT Progressive Transition waveguide with high-slope passive networks
- 120° x 60° coverage pattern
- Rotatable waveguide for vertical or horizontal orientation
- Nominal impedance: 8 Ohms
- Frequency response: 43 Hz – 18 kHz (±3 dB); range 37 Hz – 20 kHz (−10 dB)
- System sensitivity: 96 dB-SPL 1 watt @ 1 meter (passive mode)
- Maximum SPL: 122 dB continuous / 128 dB peak (LF); 129 dB continuous / 135 dB peak (HF) in bi-amp mode
- 1.5 kHz crossover frequency
- Long-term power rating: 300 W (1200 W peak) at 100 hrs IEC
- Dimensions: 713 x 371 x 458 mm; weight 45 lb (20.2 kg)
- DuraFlex finish in white
- Operates in both bi-amp and passive modes
The AM5212/26-WH combines proven JBL engineering with practical flexibility, delivering reliable full-range monitoring for studio production and location recording workflows.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM5212/26-WH is a compact two-way full-range speaker engineered for installed sound and medium-venue reinforcement; it is not designed for studio monitoring or close-field studio work. Engineers and producers using it as part of a distributed venue or installed system will benefit from its balanced response, controlled directivity, and flexible bi-amp/passive operation to integrate into existing playback chains. It is purpose-built for live and installed applications, not studio tracking or mixing.
Who This Is For
Great for
- ✓ live reinforcement
- ✓ installed sound
- ✓ medium venue PA
- ✓ distributed audio systems
Not the best pick for
- – home listening
- – studio monitoring
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What makes the AM5212/26-WH different from typical portable PA speakers?
This is a full-range installed and touring sound loudspeaker, not a portable monitor or studio speaker. It delivers 122–129 dB continuous SPL with a rotatable waveguide and dual operational modes (bi-amp and passive), making it flexible for both permanent venue installations and touring rigs. The 12-inch woofer and 1.5-inch compression driver with PT Progressive Transition waveguide ensure smooth crossover and natural off-axis response across medium-sized spaces.
Can I use the AM5212/26-WH in both powered and passive setups?
Yes. The speaker operates in two modes: bi-amp (powered from separate amp channels for low and high frequency) and passive (powered by a single amp channel). This dual-mode design lets you integrate it into amplified systems or standard powered rigs without modification.
What is the coverage pattern and how does it perform off-axis?
The AM5212/26-WH provides a 120° x 60° (horizontal x vertical) coverage pattern with natural off-axis response thanks to the PT Progressive Transition waveguide. The 1.5 kHz crossover and passive networks ensure smooth frequency blending across the listening area in medium-sized venues.
What are the key specs I need to know for system planning?
Sensitivity is 96 dB-SPL (1 watt @ 1 meter in passive mode); maximum SPL reaches 122 dB continuous and 128 dB peak (LF) or 129 dB continuous and 135 dB peak (HF) in bi-amp mode. The speaker is 8 Ohms nominal impedance, weighs 45 lb, and handles 300 W long-term (1200 W peak). Frequency response is 43 Hz – 18 kHz (±3 dB).
Is the rotatable waveguide useful for different venue layouts?
Yes. The waveguide can be oriented vertically or horizontally, allowing you to adapt the speaker's 120° x 60° coverage to different mounting positions—ceiling arrays, wall mounts, or ground stacks—without losing directivity control or frequency response. This flexibility simplifies system design for distributed audio and installed applications.
