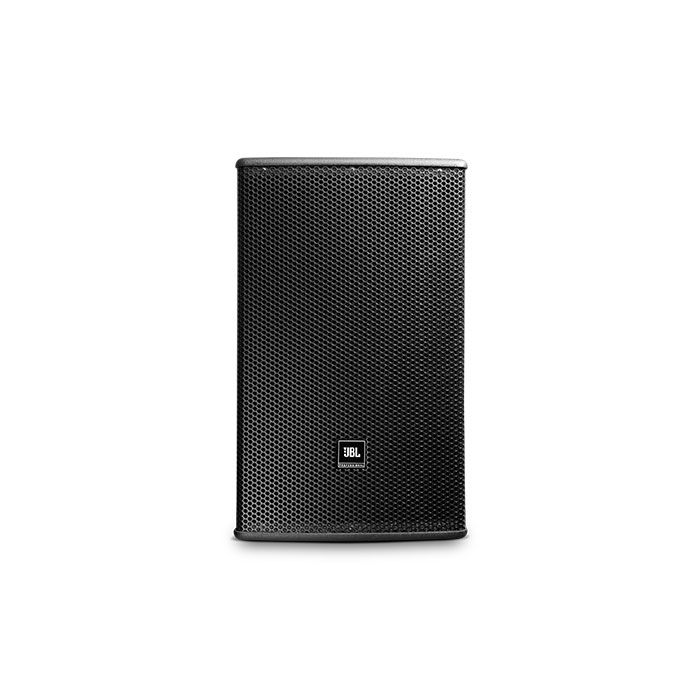

JBL AC566 Two-Way Full-Range Loudspeaker System with 1 x 15 LF
Description
JBL AC566 Two-Way Full-Range Loudspeaker System with 1 x 15 LF
The AC566 captures articulate highs and commanding lows across the full frequency spectrum, with a solid 15-inch low-frequency driver providing deep, resonant foundation and full-range response that translates accurately to tracking, mixing, and mastering sessions. Built for both intimate studio monitoring and full-scale tracking setups, this two-way system reproduces input with powerful, confident output and the clarity and punch that producers and engineers trust for critical listening and mixing decisions.
Audio Performance
The combination of a 384 mm (15 in) low-frequency driver and 25 mm (1 in) exit compression driver with 1.5 kHz crossover delivers a 60 Hz to 20 kHz frequency range and maximum output of 122 dB SPL (128 dB peak). The high-slope passive crossovers minimize band overlap and maintain well-controlled off-axis response, ensuring tight imaging and accurate frequency balance whether positioned for nearfield monitoring or mid-field tracking applications.
Construction & Flexibility
The 15 mm multi-ply hardwood plywood enclosure finished in textured paint provides robust durability for mobile recording rigs and permanent studio installations, while the powder-coated 1.5 mm perforated steel grille with acoustically transparent black foam backing protects components without compromising frequency response. Compact dimensions of 680 x 420 x 445 mm (26.7 x 16.5 x 17.5 in) and M10 threaded suspension points plus four threaded inserts enable flexible mounting configurations for fixed studio placement or temporary session setups.
Key Features
- One 384 mm (15 in) low-frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver
- 60° by 60° coverage in vertical and horizontal orientation
- 1.5 kHz crossover with high-slope passive design for minimized band overlap
- Frequency range of 60 Hz to 20 kHz
- Maximum SPL of 122 dB (128 dB peak)
- 350W AES standard power rating with 1400W peak for 2 hours
- 8 ohms nominal impedance with dual Neutrik NL4MP connectors and screw terminals
- 15 mm multi-ply hardwood plywood enclosure with textured paint finish
- Powder-coated 1.5 mm perforated steel grille with acoustically transparent black foam backing
- M10 threaded suspension points and four threaded inserts for MultiMount or similar attachment
- Compact dimensions: 680 mm x 420 mm x 445 mm (26.7 in x 16.5 in x 17.5 in)
The AC566 combines professional-grade components with thoughtful engineering to deliver consistent, articulate full-range reproduction for recording, mixing, and monitoring applications.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The JBL AC566 is a two-way full-range monitor and playback speaker that combines a 15-inch low-frequency driver with a 1-inch compression driver, delivering full-spectrum clarity from 60 Hz to 20 kHz. Its high-slope passive crossover minimizes band overlap and maintains articulate detail across the stereo field, making it well-suited for critical listening, mixing reference, and playback during studio sessions. The compact footprint, 122 dB SPL capability, and controlled frequency response let you hear exactly what you're recording without coloration or phase issues.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Gigging
Frequently Asked Questions
What is the frequency range and maximum output of the AC566?
The AC566 delivers 60 Hz to 20 kHz frequency response with a maximum SPL of 122 dB (128 dB peak). It uses a 350W AES power rating with 1400W peak capacity for 2 hours, making it suitable for medium to large venues and studio playback.
What are the connectivity and impedance specs?
The AC566 features 8 ohms nominal impedance with dual Neutrik NL4MP connectors and screw terminals for flexible wiring configurations. It accepts both professional XLR-style locking connectors and direct wire termination.
Can the AC566 be mounted or suspended in different ways?
Yes. The cabinet includes M10 threaded suspension points and four threaded inserts for MultiMount or similar attachment systems, allowing both fixed and temporary installations. Compact dimensions of 680 x 420 x 445 mm make it suitable for a range of mounting configurations.
How does the crossover design affect what I hear?
The 1.5 kHz crossover uses high-slope passive design to minimize band overlap between the 15-inch woofer and 1-inch compression driver. This maintains well-controlled off-axis response and clarity whether the speaker is positioned for direct or distributed coverage, so you hear consistent, articulate sound across the listening area.
What is the AC566 built to withstand?
The enclosure is constructed from 15 mm multi-ply hardwood plywood with textured paint finish, and the front grille is powder-coated 1.5 mm perforated steel with acoustically transparent black foam backing. This combination provides robust durability and protection for demanding live and studio use without compromising frequency response.
