JBL AC28/95 Compact 2-Way Loudspeaker with 2 x 8 LF
Share
In stock
- SKU
- AC28-95
. Description

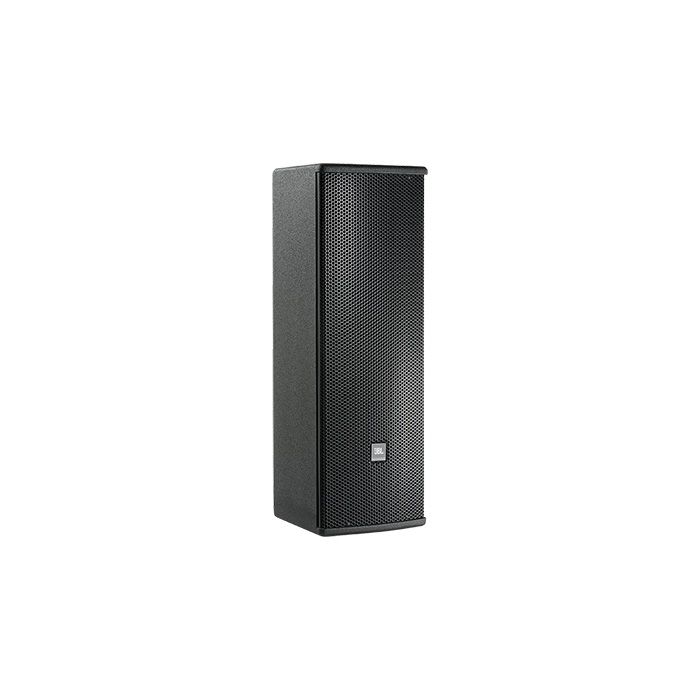

JBL AC28/95 Compact 2-Way Loudspeaker with 2 × 8 LF
The AC28/95 is a compact 2-way reference monitor engineered for studio control room applications, small-venue tracking sessions, and portable recording setups where accurate directivity and consistent output are essential. Its dual 8-inch woofer configuration delivers authoritative low-end response in a footprint small enough for flexible placement, while the compression driver high-frequency section ensures clarity across dialogue, music, and critical mix content.
Acoustic Performance for Mixing and Monitoring
This system achieves a 120 dB maximum SPL at 1 meter with 94 dB system sensitivity, delivering substantial monitoring headroom without demanding excessive amplifier power. The 90° × 50° coverage pattern provides controlled directional output ideal for near-field listening and confined studio spaces where coverage precision and reflection management matter.
Build Quality and Connectivity
Constructed from 12 mm and 15 mm exterior grade multi-ply hardwood plywood with Black DuraFlex™ finish, the enclosure is built to withstand the rigors of studio relocation and live tracking environments. Dual Neutrik NL4 plus screw terminal connectors accommodate both professional speakon and traditional wired approaches, while six M8 suspension points enable secure mounting and flexible positioning in any orientation.
Key Features
- 2 × JBL 228J 205 mm (8 in) woofers with 64 mm edge wound voice coils
- 1 × JBL 2408H-1 compression driver with 25 mm exit and 38 mm voice coil
- Passive crossover design
- Frequency Response ±3 dB: 65 Hz – 20 kHz
- Frequency Range (−10 dB): 53 Hz – 20 kHz
- Power Rating: 375W Continuous / 750W Program / 1500W Peak
- Coverage Pattern: 90° × 50°
- 8 Ohms nominal LF driver impedance
- Dimensions: 679.5 × 237.5 × 254.0 mm (26.8 × 9.4 × 10.0 in)
- Net Weight: 18.6 kg (40.9 lb)
- Six M8 suspension points (1 top, 3 bottom, 2 rear)
- Dual Neutrik NL4 plus screw terminal connectors
The AC28/95 combines professional acoustic engineering with straightforward mounting and connectivity, delivering consistent performance across home studios, portable recording rigs, and session work.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC28/95 is a professional-grade compact loudspeaker designed for installed systems, temporary reinforcement, and portable applications where precise coverage and controlled output matter. Its dual 8-inch woofer configuration and compression driver provide authoritative low-end and clear midrange, delivering neutral, articulate response suited to speech, music, and mixed-content applications. Select it for your installation or portable setup where durability, consistent SPL, and acoustic precision are non-negotiable.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Installed Sound
- ✓ Portable PA
- ✓ Event Reinforcement
Not the best pick for
- – Home Listening
- – Studio Monitoring
Skill level: Professional
Frequently Asked Questions
What kind of venues and applications is the AC28/95 built for?
The AC28/95 excels in installed sound systems, portable PA rigs, live event reinforcement, and touring applications. Its 90° × 50° coverage pattern is engineered for fixed installations and staged setups where directional control is essential, and its rugged hardwood construction with DuraFlex finish handles regular transport and venue demands.
How much SPL can this speaker deliver, and what amplifier power do I need?
The AC28/95 reaches 120 dB SPL at 1 meter with 94 dB system sensitivity. It handles 375W continuous, 750W program, and 1500W peak power, so a mid-sized professional amplifier (250–500W per channel into 8 ohms) will deliver full performance without excessive headroom requirements.
How is this speaker rigged and connected?
The AC28/95 features six M8 suspension points (one top, three bottom, two rear) for secure rigging in any orientation, and dual Neutrik NL4 plus screw terminal connectors support both professional Speakon cables and traditional wired connections for flexibility in any install.
What frequency range does it cover, and how does it handle speech versus music?
With a ±3 dB response of 65 Hz – 20 kHz and a −10 dB range down to 53 Hz, the AC28/95 delivers authoritative low end and neutral midrange clarity across both speech and music content. Its compression driver ensures articulate high-frequency output and consistent intelligibility in mixed-content applications.
How portable and durable is this speaker for touring?
At 18.6 kg (40.9 lb) and 679.5 × 237.5 × 254 mm, the AC28/95 balances compact size with road capability. Its 12–15 mm exterior-grade multi-ply hardwood plywood and DuraFlex finish are engineered to survive repeated transport, load-in/load-out, and professional touring schedules.
