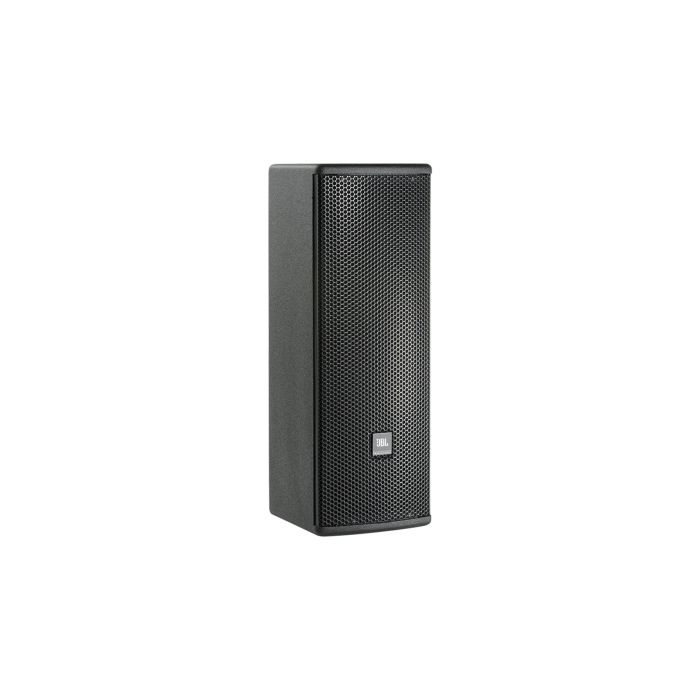

JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 LF
In stock
- SKU
- AC26
Description
JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 × 6.5 LF
The JBL AC26 delivers punchy, articulate sound in a remarkably compact footprint, making it an essential tool for studio monitoring, small-venue reinforcement, and portable recording setups. Dual 6.5-inch woofers provide warm, responsive low-end that translates accurately to mixes, while the integrated compression driver ensures crisp highs with clarity and definition. This ultra-compact two-way system captures and reproduces detail across genres and session types while maintaining the professional tonal character JBL is known for.
Recording & Monitoring Performance
The AC26 achieves a 92 dB SPL sensitivity rating at 1W/1m, paired with a 117 dB maximum SPL capability, delivering substantial output from modest amplifier power for accurate nearfield or mid-field monitoring. The 2.2 kHz crossover cleanly transitions between the dual low-frequency drivers and single compression driver, ensuring seamless integration across the 70 Hz – 18 kHz frequency response (±3 dB) with extended response down to 55 Hz at –10 dB for full-spectrum production work.
Enclosure & Portability
Constructed from 12 mm and 15 mm multi-ply hardwood plywood with a durable black DuraFlex finish, the enclosure is engineered for professional rigidity while remaining portable at 11 kg (24.3 lb). The 90° × 90° coverage pattern with Directivity Factor Q of 7 ensures consistent imaging and stereo imaging in control rooms and recording spaces, while IPx3 weather resistance and Mil-Std 810 compliance accommodate mobile sessions and multi-room studio setups.
Key Features
- 2 × JBL 226J 6.5-inch (165 mm) SFG drivers with 50 mm edge-wound voice coils
- 1 × JBL 2414H 25 mm compression driver with integrated PT-B99HF-1 waveguide
- System sensitivity: 92 dB SPL/1W/1m
- Maximum SPL: 117 dB (1 meter)
- Frequency response (±3 dB): 70 Hz – 18 kHz; extended to 55 Hz (–10 dB)
- 8 ohm nominal impedance with 350 W AES power rating (180 W continuous / 360 W program / 720 W peak)
- 2.2 kHz crossover point
- Dual Neutrik Speakon NL4 connectors in parallel plus barrier strip terminals (accepts up to 10 AWG wire)
- 90° × 90° coverage pattern with Q = 7 (500 Hz – 16 kHz average)
- IPx3 weather resistance and Mil-Std 810 environmental compliance
- Compact dimensions: 539.8 × 199.4 × 226.1 mm (21.3 × 7.8 × 8.9 inches)
- 12 mm and 15 mm multi-ply hardwood plywood enclosure with black DuraFlex finish
The JBL AC26 pairs professional-grade components, robust construction, and proven JBL acoustics into a genuinely portable package that captures and reproduces detail without compromise.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC26 is a compact two-way monitor or nearfield reference speaker with dual 6.5-inch drivers and integrated compression driver, offering 92 dB sensitivity and extended response down to 55 Hz. Home producers and engineers will value its articulate midrange and defined highs for accurate mixing in smaller control rooms, plus the ability to run it from modest amplifier power while maintaining clean transient response across instruments and vocals. Its barrier-strip and Speakon connectivity integrates into modular studio setups, and the durable build ensures dependable daily use in project studios.
Frequently Asked Questions
What is the frequency response and will it handle full-range mix content?
The AC26 covers 70 Hz to 18 kHz (±3 dB) with extended response down to 55 Hz at –10 dB, providing solid low-end presence for vocals, instruments, and mix buses. The dual 6.5-inch woofers deliver warm, responsive punch in the fundamental range, while the compression driver handles crisp highs and vocal clarity.
How much power does this speaker need and what amps will work with it?
The AC26 is rated for 350 W AES power (180 W continuous, 360 W program, 720 W peak) at 8 ohms nominal impedance. It achieves 92 dB SPL at just 1 W/1 m, meaning modest amplifiers can drive it efficiently; match your amp to the venue size and desired SPL headroom.
Is this speaker suitable for outdoor or touring use?
Yes—the AC26 features IPx3 weather resistance and Mil-Std 810 environmental compliance, making it reliable for challenging venues and weather. At 11 kg (24.3 lb), it is genuinely portable for touring, and the durable hardwood plywood enclosure with black DuraFlex finish withstands road and installation demands.
What connectors does it have and how do I wire multiple speakers?
The AC26 includes dual Neutrik Speakon NL4 connectors wired in parallel, plus barrier-strip terminals accepting up to 10 AWG wire for flexible installation and series/parallel linking of multiple units.
What is the coverage pattern and where should I aim this speaker?
The AC26 delivers a 90° × 90° coverage pattern with a Directivity Factor Q of 7 (averaged 500 Hz–16 kHz), ensuring consistent sound across audiences in mid-size rooms, small venues, and monitor positions without narrow lobing.
