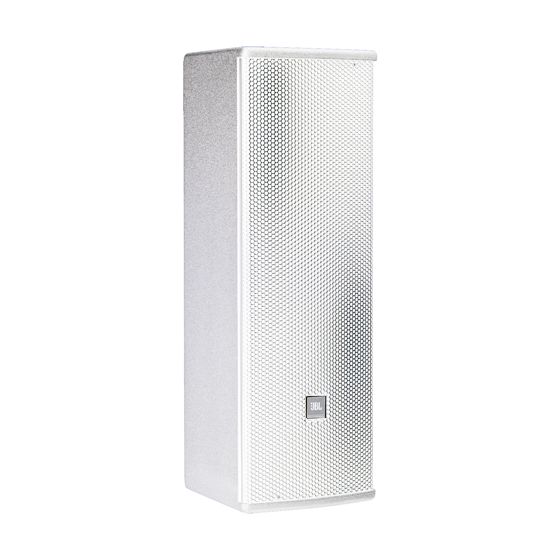

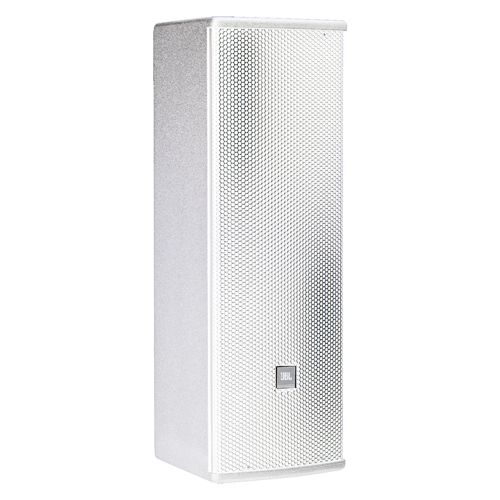

JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 LF White
In stock
- SKU
- AC26-WH
Description
JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 LF White
The AC26 is a remarkably compact and lightweight two-way monitor that punches well above its size class for home studio and mobile recording applications. Its portable 11 kg footprint and 539.8 x 199.4 x 226.1 mm dimensions make it practical for placement in tight control rooms, bedrooms, and project studios, while the robust multi-ply hardwood plywood construction and white finish integrate cleanly into any acoustic environment.
Sonic Character & Frequency Response
This speaker combines dual 165 mm low-frequency drivers with a 25 mm compression driver to deliver a 92 dB SPL sensitivity at 1W/1m and a maximum SPL of 117 dB at 1 meter. The 2.2 kHz crossover ensures smooth integration across the frequency spectrum, yielding articulate midrange definition and tight low-end control ideal for critical listening and mix referencing. The 90° horizontal and vertical coverage patterns provide consistent tonal balance across the sweet spot and off-axis positions.
Construction & Acoustic Design
Built from 12 mm and 15 mm exterior-grade multi-ply hardwood plywood with a white DuraFlex finish, the AC26 minimizes cabinet resonance and maintains structural integrity under sustained monitoring sessions. The powder-coated 16 gauge perforated steel grille with acoustically transparent foam backing protects the drivers while preserving driver clarity and preventing phase cancellation that would color mix decisions.
Key Features
- Frequency Range (-10 dB): 55 Hz – 20 kHz
- Frequency Response (+/-3 dB): 70 Hz – 18 kHz
- System Sensitivity: 92 dB SPL/1W/1m
- Rated Maximum SPL (1m): 117 dB
- Long-Term Power Rating: 180 W continuous / 360 W program / 720 W peak
- AES Standard Power Rating: 350 W
- System Nominal Impedance: 8 Ohms
- 2 x JBL 226J 165 mm (6.5 in) low-frequency drivers with 50 mm voice coils
- 1 x 2414H 25 mm (1 in) compression driver
- 2.2 kHz crossover frequency
- Neutrik Speakon NL4 connectors (dual, wired in parallel) plus barrier strip terminals
- 90° horizontal and vertical coverage; Mil-Std 810 and IPx3 environmental ratings
The AC26 delivers balanced midrange clarity and controlled low-end response in a package engineered for portable studio work and reliable day-to-day recording sessions.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC26 is a compact two-way reference speaker designed for small studio setups, room-limited spaces, and portable recording applications, delivering flat midrange clarity and controlled low end across a 70 Hz – 18 kHz response window. Its balanced 2.2 kHz crossover integration and even 90° coverage pattern make it practical for tracking rooms, edit bays, or mobile recording sessions where studio-grade tone matters but space is at a premium. Choose it when you need a durable, full-range speaker that captures and reproduces source material without coloration in a footprint that fits tight quarters.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Small venue PA
- ✓ Portable sound reinforcement
Not the best pick for
- – Studio monitoring
- – Home audio
Frequently Asked Questions
What are the power handling and impedance specs?
The AC26 handles 180 W continuous / 360 W program / 720 W peak, with an AES standard power rating of 350 W. It is wired at 8 ohms nominal impedance and includes dual Neutrik Speakon NL4 connectors (wired in parallel) plus barrier strip terminals.
How loud does this speaker get?
It delivers 92 dB SPL at 1W/1m sensitivity and reaches a maximum SPL of 117 dB at 1 meter, making it suitable for small venues, portable PA rigs, and portable sound reinforcement without distortion.
What size is it and how much does it weigh?
The AC26 measures 539.8 x 199.4 x 226.1 mm (roughly 21.3 x 7.8 x 8.9 inches) and weighs 11 kg (approximately 24 lbs), making it practical for installation in tight spaces and transport between venues.
What drivers does it use?
It features dual JBL 226J 165 mm (6.5 inch) low-frequency drivers with 50 mm voice coils and one 2414H 25 mm (1 inch) compression driver, crossed over at 2.2 kHz for smooth tonal integration.
Is it weather-resistant?
Yes—the AC26 is built from 12 mm and 15 mm exterior-grade multi-ply hardwood plywood with a white DuraFlex finish, and it carries Mil-Std 810 and IPx3 environmental ratings for durability in demanding installations.
