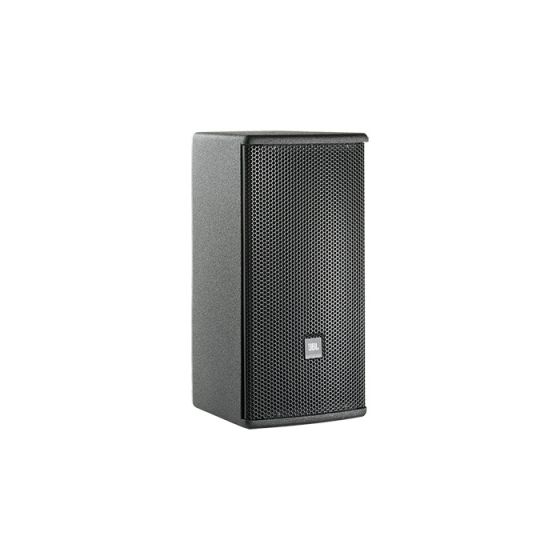

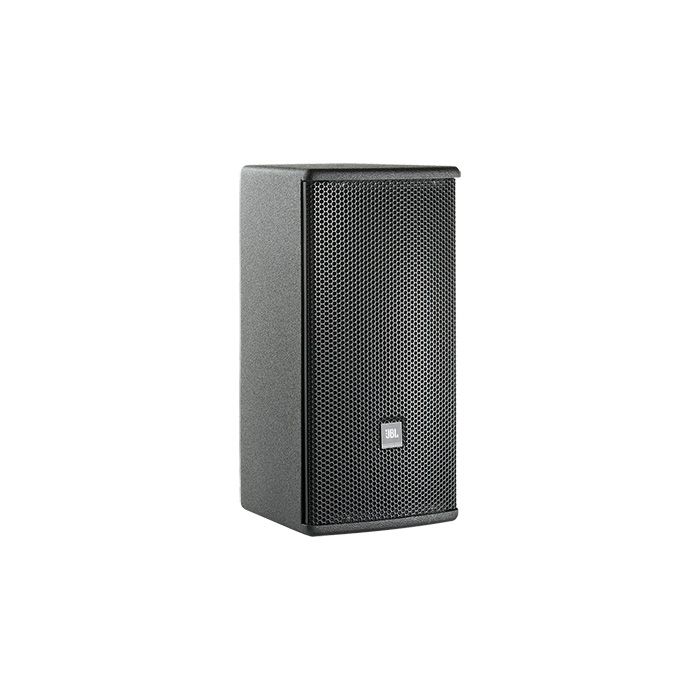

JBL AC18/95 Compact 2-Way Loudspeaker with 1 x 8 LF
Share
In stock
- SKU
- AC18-95
. Description
JBL AC18/95 Compact 2-Way Loudspeaker with 1 x 8 LF
The AC18/95 is a compact professional-grade loudspeaker engineered to deliver impressive output and clarity from a genuinely portable form factor. Its punchy 8-inch low-frequency driver paired with a rotatable compression driver makes this unit excellent for studio monitoring reference, small-room tracking, or as a secondary reference point in mixing. The hardwood enclosure and professional-grade components ensure this speaker performs reliably through demanding session work and studio installations without compromise.
Audio Performance & Recording Clarity
Maximum SPL reaches 117 dB, with 500W rated program power and 1000W peak handling delivering clean, directional output across a 63 Hz to 19 kHz frequency range (±3 dB). The directivity factor of 8 and directivity index of 9 dB ensure controlled coverage that minimizes room reflections and standing waves during tracking and overdubs, while the 375W AES power rating provides a realistic measure of sustained performance for extended session work.
Design & Build for Studio Use
Constructed with a multi-ply hardwood enclosure finished in JBL's textured DuraFlex coating, the speaker withstands the demands of active studio environments. The heavy-duty powder-coated steel grille with acoustically transparent foam backing protects drivers while maintaining sonic transparency, and the compact 18.5" H x 9.4" W x 10.0" D footprint at 28.2 lbs makes it easy to position for optimal monitoring or reposition between rooms and setups.
Key Features
- 1 x JBL 228H 8-inch (205 mm) SFG low-frequency driver with 64 mm (2.5 in) edge wound voice coil
- 1 inch exit compression driver with 90° x 50° rotatable PT (Progressive Transition) waveguide
- Frequency response (±3 dB): 63 Hz – 19 kHz
- Frequency range (−10 dB): 52 Hz – 20 kHz
- Maximum SPL: 117 dB
- Rated maximum program power: 500W; peak power handling: 1000W; 375W AES rating
- Directivity Factor (Q) of 8 and Directivity Index (DI) of 9 dB (average 500 Hz – 16 kHz)
- Multi-ply hardwood enclosure with JBL textured DuraFlex finish
- Heavy-duty powder-coated steel grille with acoustically transparent foam backing
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple mounting points for U-bracket, OmniMount type bracket, or stand mount accessories
- IP53 environmental rating per IEC 529; optional WRC or WRX upgrades available
The AC18/95 combines proven JBL engineering with a genuinely portable design, making it an excellent choice for producers and engineers who need reliable monitoring output and studio-grade clarity without excess weight or footprint.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The AC18/95 delivers studio-grade monitoring in a genuinely portable package—its flat 63 Hz–19 kHz response (±3 dB), controlled directivity, and 117 dB headroom let you hear your mixes with accuracy and confidence in home studios, project rooms, or as a reference check on location. The rotatable waveguide and tight directivity index mean you get professional reference-quality sound without room reflections muddying your mix decisions, making it ideal for producers and engineers who need honest, uncolored monitoring without a large footprint.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Small Venue PA
- ✓ Installation
- ✓ Touring
Not the best pick for
- – Home use
- – Bedroom practice
Skill level: Professional
Frequently Asked Questions
What makes the AC18/95 different from a standard PA or studio monitor speaker?
The AC18/95 is engineered as a compact pro loudspeaker—it combines a controlled directivity factor of 8 (and 9 dB directivity index) to minimize room reflections and feedback, which makes it equally suited to live reinforcement, installation work, and studio monitoring. Its 117 dB SPL and punchy 8-inch driver deliver louder, more controlled output than typical studio nearfields, while its flat ±3 dB response from 63 Hz–19 kHz lets you trust your mixes.
Is the AC18/95 portable enough for touring and one-off gigs?
Yes. At 28.2 lbs and just 18.5" H x 9.4" W x 10.0" D, it's genuinely portable for hand transport and vehicle load-in. The hardwood enclosure with DuraFlex finish and steel grille resists the wear of repeated setup, teardown, and transit, and dual Neutrik connectors plus screw terminals make field rigging straightforward.
Can I mount this speaker on a stand or bracket?
Yes. The AC18/95 includes multiple mounting points for U-bracket, OmniMount-type bracket, or standard speaker-stand mounts, giving you flexibility for stage placement, wall install, or monitor-wedge positioning.
What power amplifier or interface do I need to drive this speaker?
The AC18/95 is rated for 375W AES sustained power, 500W program, and 1000W peak handling. Any professional power amp or powered mixing console capable of 375–500W continuous output per channel will drive it reliably; check your amp's output impedance against the speaker's nominal impedance for safe matching.
What does the IP53 environmental rating mean, and can I use it outdoors?
IP53 indicates dust and splash resistance suitable for light outdoor use and dusty venues, though it is not fully weatherproof. For permanent outdoor or high-moisture installation, optional WRC or WRX upgrade treatments are available to improve durability.
