JBL AC18/26 Compact 2-Way Loudspeaker with 1 x 8 LF
Share
In stock
- SKU
- AC18-26
. Description

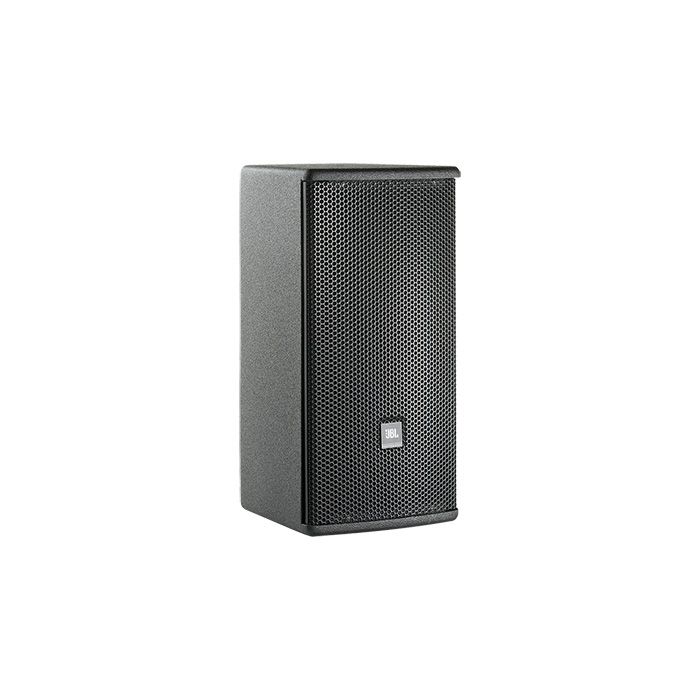

JBL AC18/26 Compact 2-Way Loudspeaker
The AC18/26 captures articulate, punchy output that translates cleanly into mixes and monitors, making it an excellent choice for home studios, small rooms, and project spaces where accuracy matters. Its compact footprint and 12.8 kg weight enable flexible placement and repositioning within tight recording environments without compromising acoustic performance. The passive design pairs a tight, controlled 8-inch low end with crisp, detailed highs—ideal for capturing vocals, tracking instruments, or adding supplemental monitoring coverage during sessions.
Audio Performance & Coverage
The 1 x 8" LF driver combined with a 1" HF compression driver and 120° x 60° field rotatable PT Waveguide delivers focused, directional sound with a Directivity Index of 8 dB across the midrange and treble. Frequency response spans 63 Hz – 19 kHz (±3 dB), with extended reach down to 52 Hz at -10 dB, ensuring both presence and low-end definition for tracking, mixing, and reference monitoring across a wide range of program material.
Connectivity & Build Quality
Dual Neutrik NL4 connectors plus screw terminal backing provide flexible wiring options for permanent studio installations or temporary session setups. Suspension points at six M8 mounting locations—one top, three bottom, two rear—enable secure wall mounting, stand positioning, or flexible rigging within control rooms and tracking spaces, while the black DuraFlex™ finish withstands the demands of active studio use and equipment moves.
Key Features
- 1 x 8" low-frequency driver
- 1" HF compression driver with field rotatable 120 x 60° Coverage PT Waveguide
- 8 ohm impedance
- 250W continuous / 500W program / 1000W peak power rating
- Frequency range: 52 Hz – 20 kHz (-10 dB)
- Frequency response: 63 Hz – 19 kHz (±3 dB)
- Directivity Factor (Q): 7; Directivity Index (DI): 8 dB
- Dual Neutrik NL4 connectors with screw terminal backup
- Six M8 suspension points for flexible mounting configurations
- Compact dimensions: 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
- 12.8 kg (28.2 lb) weight for portable transport
- Black DuraFlex™ finish for durability
The AC18/26 combines honest, transparent reproduction with the durability needed for real-world studio deployment, whether as a standalone monitor, fill speaker, or core component in a compact monitoring or tracking setup.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC18/26 is a compact, transparent 2-way studio monitor and recording tool that captures vocals, instruments, and playback with clarity across a 63 Hz–19 kHz response (±3 dB). Home producers and engineers value its focused directional sound and honest midrange character for mixing in smaller control rooms, as a secondary reference, or for session tracking where space and isolation matter. Its passive design, dual Neutrik connectors, and lightweight build make it flexible for studio layouts and multi-room setups.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Gigging
- ✓ Vocals
- ✓ Worship
Not the best pick for
- – Home Recording
- – Studio Sessions
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What size room or venue is the AC18/26 designed for?
The AC18/26 is optimized for intimate venues, mid-sized rooms, and control rooms where clarity and focused coverage take priority over sheer SPL output. Its compact footprint and 8-inch woofer work well for up to roughly 100–150 person capacity with supplemental fills or as a standalone monitor, but it is not intended as a main PA for large halls or outdoor events.
Is this a powered or passive speaker, and what amplification do I need?
The AC18/26 is a passive speaker with an 8-ohm impedance, requiring an external amplifier rated for 250W continuous (500W program / 1000W peak). You will need a mixer or amplified output from your mixing console or interface.
How does it mount or position in a rig or studio?
The speaker has six M8 suspension points—one top, three bottom, and two rear—allowing secure rigging to a stand, truss, or wall mount. Dual Neutrik NL4 connectors plus screw terminals give you flexible wiring options for both temporary and permanent installations.
What is the frequency response and coverage pattern?
Frequency response is 63 Hz–19 kHz (±3 dB), with extended reach down to 52 Hz at -10 dB. The 120° × 60° rotatable waveguide delivers a focused, directional pattern with an 8 dB Directivity Index, ensuring tight control over where the sound goes.
How portable is the AC18/26, and will it hold up to touring?
At 12.8 kg (28.2 lb) and compact dimensions of 469.9 × 237.5 × 254.0 mm, it moves easily between venues. The black DuraFlex finish resists scuffs, dings, and wear in touring and rental environments, making it a durable choice for road use.
