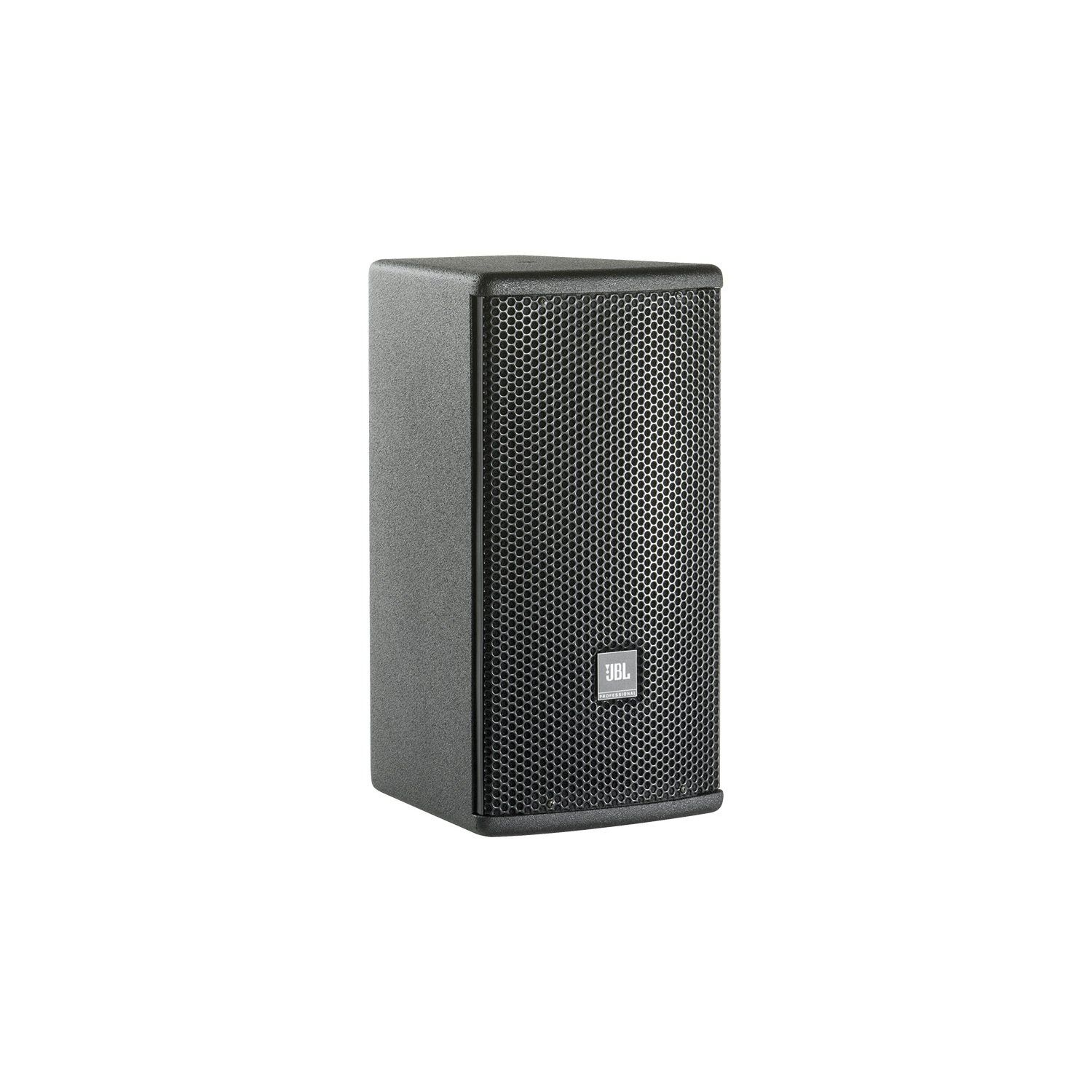

JBL AC16 Ultra Compact 2 Way Loudspeaker Black
Description
JBL AC16 Ultra Compact 2-Way Loudspeaker (Black)
The JBL AC16 is engineered for studio monitoring and compact recording spaces where a full-range, high-output reference is essential. Its ultra-compact enclosure houses a complete 2-way system without compromise, combining a 1" compression driver with a 6.5" low-frequency transducer to achieve balanced sound reproduction across a wide listening zone. Built with a multi-ply hardwood enclosure and durable DuraFlex™ finish, this speaker delivers reliable performance in demanding production environments, mobile rigs, and permanent studio installations.
Recording & Monitoring Performance
The AC16 covers a frequency range of 55 Hz–20 kHz (−10 dB) with a ±3 dB response from 65 Hz–18 kHz, ensuring accurate mid and high-frequency detail alongside extended low-end foundation for critical listening and mixing. Its 90° × 90° coverage pattern maintains consistent, phase-coherent output across the monitoring sweet spot, while the 160 W continuous / 320 W program / 640 W peak power rating provides dynamic headroom for transient-rich material and sustained playback without compression or distortion.
Compact Integration & Setup
The speaker's compact footprint (381.0 × 199.4 × 226.1 mm) and lightweight chassis at 7.2 kg (15.8 lb) integrate seamlessly into desktop rigs, isolation booths, and mobile recording setups. A 6.5" Symmetrical Field Geometry (SFG) transducer with copper-clad aluminum edge-wound 2" voice coil ensures precise cone control and extended excursion for clean low-frequency tracking, while five M8 suspension attachment points (one top, three bottom, one rear) enable quick mounting to stands, brackets, or isolation solutions.
Key Features
- 1" exit compression driver with 90° × 90° coverage
- 165 mm (6.5 in) LF transducer with SFG design
- Frequency range: 55 Hz – 20 kHz (−10 dB)
- Frequency response: 65 Hz – 18 kHz (±3 dB)
- Power rating: 160 W continuous / 320 W program / 640 W peak
- 16 ohms impedance
- Dual Neutrik NL4 connectors plus screw terminal
- Multi-ply hardwood enclosure with DuraFlex™ finish
- 5 × M8 suspension points for rigging and mounting
- Compact dimensions: 381.0 × 199.4 × 226.1 mm (15.0 × 7.8 × 8.9 in)
- Weight: 7.2 kg (15.8 lb)
The AC16 combines compact form factor with full-range monitoring authority, making it an ideal reference solution for producers and engineers working in space-constrained or mobile recording environments.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The JBL AC16 is an ultra-compact 2-way monitor or nearfield reference speaker suited to small studios, rehearsal spaces, and portable recording setups where footprint matters and balanced response is non-negotiable. Its 1" compression driver and 6.5" woofer deliver clear mid and high-frequency detail with solid low-end extension (65 Hz–18 kHz, ±3 dB), and at 7.2 kg it's lightweight enough to reposition between sessions or transport to live tracking locations. Best suited to live monitoring or supplemental monitoring rather than studio mastering, the AC16 excels when you need compact, dependable output without the bulk of larger systems.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Venue Installation
Not the best pick for
- – Home Listening
- – Studio Mastering
Frequently Asked Questions
What is the power handling and output of the AC16?
The AC16 is rated for 160 W continuous, 320 W program, and 640 W peak power, with 16 ohms impedance. It pairs dual Neutrik NL4 connectors and a screw terminal for flexible wiring in touring and installation setups.
How compact is this speaker and what are its rigging options?
Dimensions are 381 × 199.4 × 226.1 mm and weight is 7.2 kg (15.8 lb), making it one of the lightest full-range 2-way speakers available. Five M8 suspension points (one top, three bottom, one rear) accommodate optional brackets and stands for flexible mounting in tight venues and mobile applications.
What frequency response and coverage pattern does the AC16 deliver?
The AC16 covers 55 Hz–20 kHz (−10 dB) overall, with ±3 dB flatness from 65 Hz–18 kHz. A 90° × 90° coverage pattern from the 1" compression driver ensures consistent output across the listening or monitoring area without lobes or dead zones.
How does the AC16 compare to models like the EKX-12, K8.2, or DBR10?
All four are compact 2-way speakers designed for touring and venue use. The AC16 uses a 6.5" woofer versus 12" drivers in comparable models, trading absolute bass depth for even greater portability and ease of rigging—best for smaller rooms, mobile rigs, or as supplemental fill speakers in larger systems.
What materials and finishes protect the AC16 in touring use?
The speaker features a multi-ply hardwood enclosure with a durable DuraFlex finish designed to withstand touring, installations, and permanent deployments without cosmetic or structural failure under normal operating conditions.
