JBL AC15 Ultra Compact 2-Way Loudspeaker with 1 x 5.25 LF SINGLE UNIT
In stock
- SKU
- AC15-B
Description

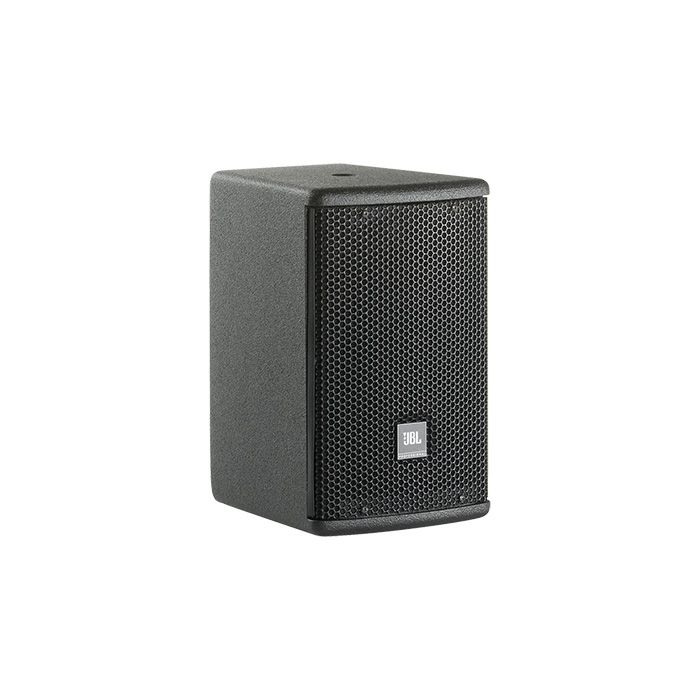

JBL AC15 Ultra Compact 2-Way Loudspeaker
The JBL AC15 delivers pristine clarity and punchy midrange response in a compact footprint that punches well above its size class. This 2-way system responds with remarkable immediacy and tonal balance, pairing a 5.25-inch woofer with crisp tweeter definition to give you honest, uncolored sound that translates across genres. The compact dimensions and lightweight construction make integration into existing rigs straightforward, while professional-grade sonics ensure reliable performance in venues, studios, and portable PA applications.
Audio Performance & Coverage
The JBL 2251 woofer (135 mm with 38 mm voice coil) and JBL 201J tweeter (25 mm dome) work together to deliver a frequency response of 90 Hz–18 kHz (±3 dB), with extended reach down to 80 Hz at –10 dB. A 90° × 90° coverage pattern and directivity index of 8 dB ensure consistent sound across the listening area without excessive throw or dead zones.
Build & Connectivity
The multi-ply hardwood enclosure with DuraFlex textured finish withstands road use and environmental stress, meeting Mil-Std 810 and IPx3 weather rating standards. Dual Neutrik Speakon NL4 connectors wired in parallel plus covered barrier strip terminals provide flexible wiring options, while four M8 suspension points (top, bottom, and rear) support secure mounting in any orientation.
Key Features
- 1 × JBL 2251, 135 mm (5.25 in) SFG woofer with 38 mm edge wound voice coil
- 1 × JBL 201J, 25 mm (1 in) voice coil dome tweeter
- Frequency Response (±3 dB): 90 Hz–18 kHz
- Extended Frequency Range (–10 dB): 80 Hz–20 kHz
- System Power Rating: 225 W AES; 150 W / 300 W / 600 W (Continuous/Program/Peak) IEC
- Impedance: 16 ohms
- Coverage Pattern: 90° × 90°; Directivity Index: 8 dB
- Dimensions: 241.3 × 150.3 × 177.8 mm (9.5 × 5.9 × 7.0 in)
- Weight: 4.7 kg (10.5 lb)
- Multi-ply hardwood enclosure with DuraFlex textured finish
- Dual Neutrik Speakon NL4 connectors plus covered barrier strip terminals
- Four M8 suspension points; Mil-Std 810 and IPx3 environmental rating
The AC15 combines professional-grade sonics with road-tested reliability in a format designed for operators who demand transparent playback without compromise.
More Information
| Condition | Refurbished |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC15 is a compact reference-grade 2-way loudspeaker that delivers honest, uncolored sound with crisp tweeter definition and punchy midrange clarity—ideal for home studios, session monitoring, and small-format mixing environments. Its pristine frequency response (90 Hz–18 kHz ±3 dB) and balanced 8 dB directivity index make it a transparent tool for recording and production work without coloration or phase anomalies. Choose it for compact studio setups that demand professional monitoring fidelity without taking up valuable floor space.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Portable PA
- ✓ Venue Installation
Not the best pick for
- – Large-scale touring
- – Outdoor festivals (as main system)
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What does B-Stock mean?
B-Stock means this unit is fully functional and new, with only minor cosmetic imperfections from handling or open-box testing. There are no audio performance or operational defects.
What size venue or coverage area is this speaker designed for?
The AC15 is engineered for small-to-medium venues, portable PA rigs, and studio applications. Its 90° × 90° coverage pattern and 8 dB directivity index ensure consistent sound without dead zones in confined spaces; it is not designed as a main system for large-scale touring or outdoor festivals.
Can I mount this speaker in different orientations, and what mounting options are included?
Yes, the AC15 features four M8 suspension points (top, bottom, and rear) that allow secure mounting in any orientation. You can also use the dual Neutrik Speakon NL4 connectors or covered barrier strip terminals for flexible wiring.
What frequency range and power handling does it offer?
The AC15 delivers 90 Hz–18 kHz (±3 dB), with extended reach to 80 Hz at –10 dB, and is rated for 225 W AES with continuous, program, and peak power ratings of 150 W / 300 W / 600 W respectively at 16 ohm impedance.
Is this speaker weather-sealed for outdoor use?
The AC15 carries an IPx3 weather rating and meets Mil-Std 810 environmental standards, making it suitable for light outdoor or semi-exposed venue use, though it is not designed as a primary outdoor festival system.
