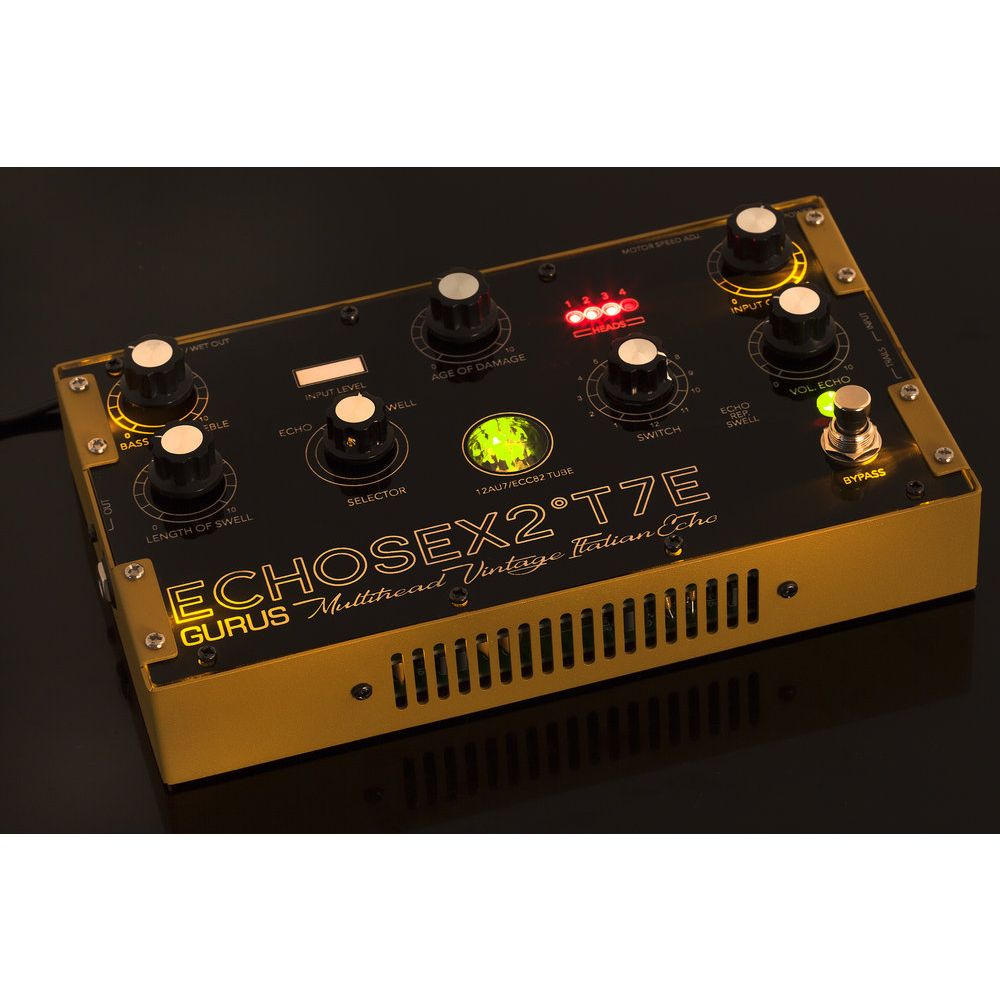

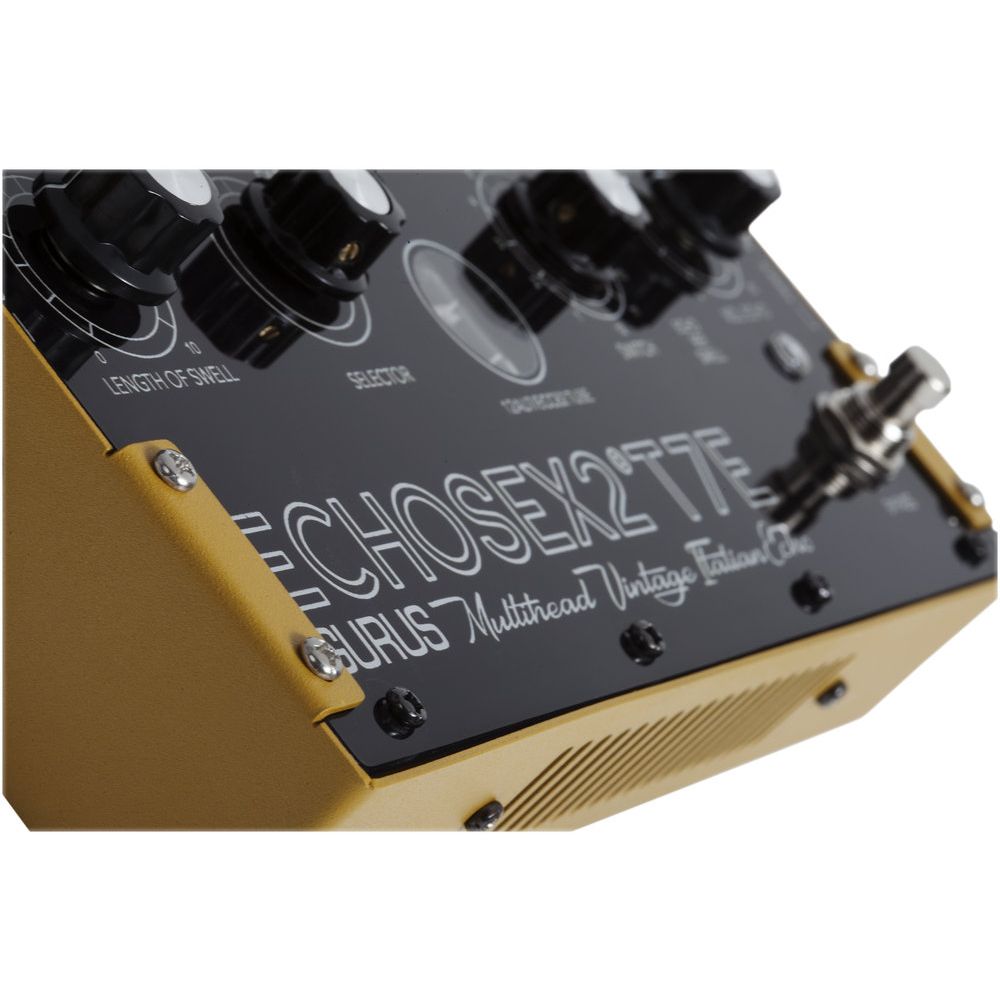

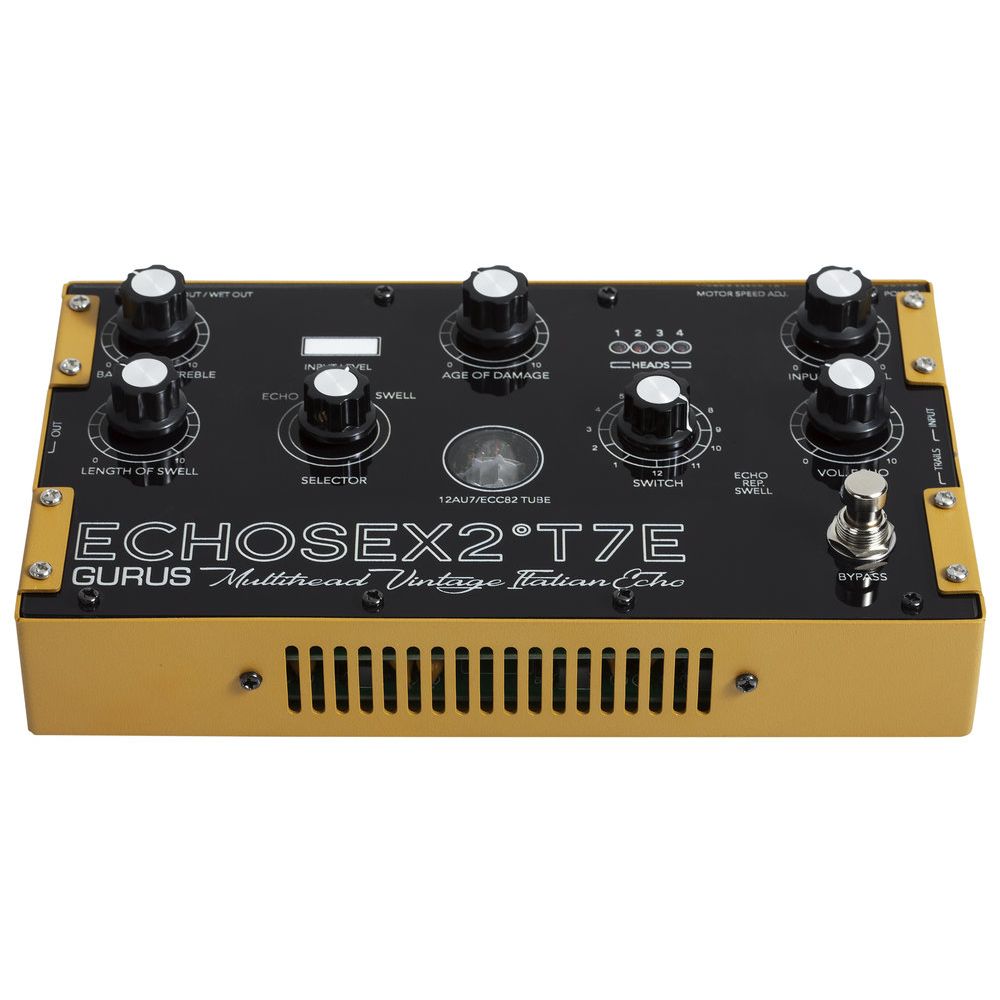

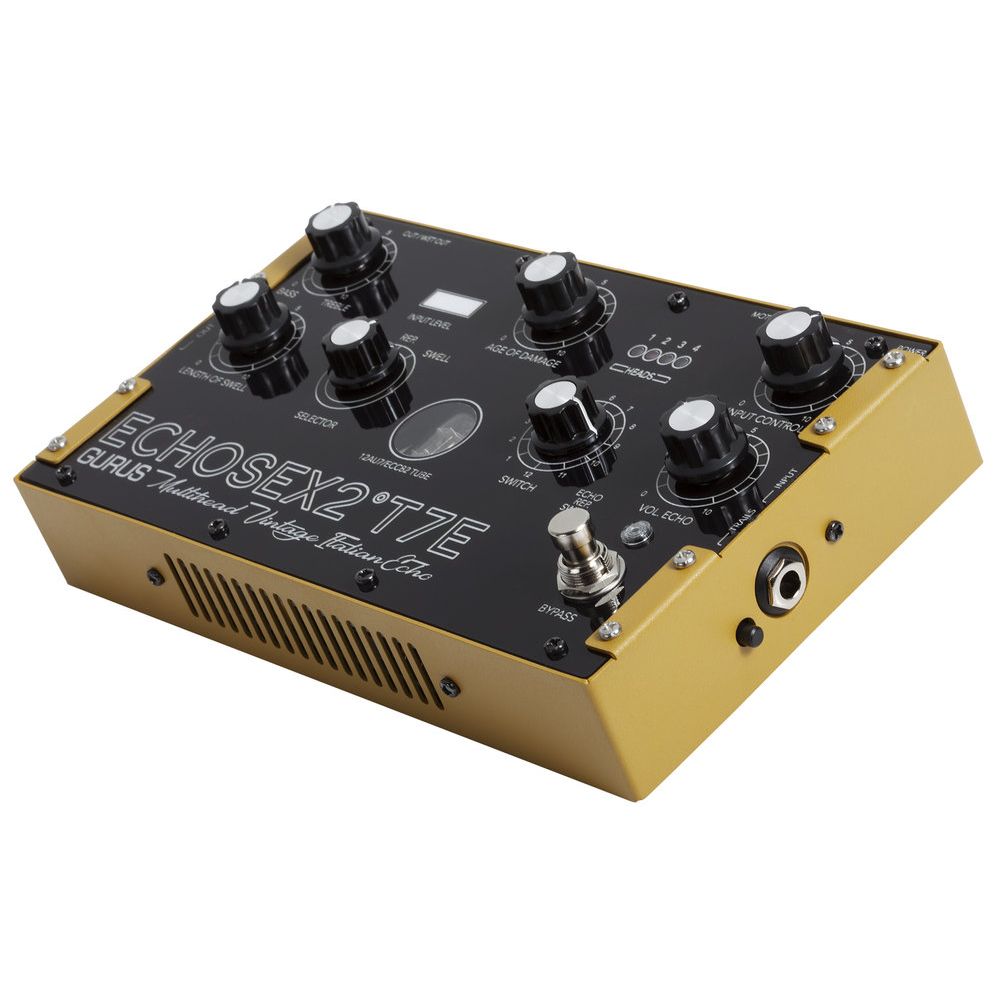

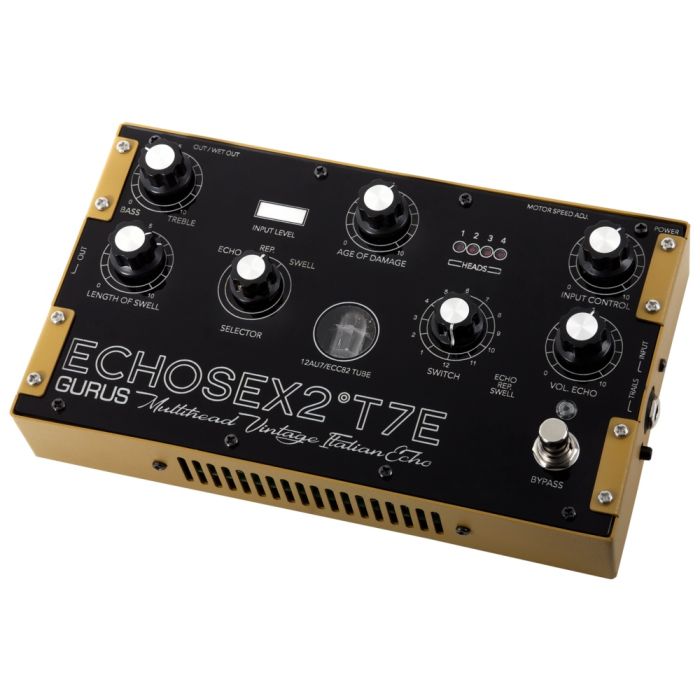

Gurus Echosex 2 T7E Real Binson Multihead Tube Driven Delay Pedal

Developed on the Gilmour sound middle of 80s, the Thunder Pulse Tone and Pre Eq work together to provide anything from the cold dirt of a heavy metal riff on one end, to the fat sound of an overdriven 80s guitar solo on the other. Gain and Volume on top of that allow for complete control over the quality of distortion added to the tone. Go for a beefy boosted overdrive, or a completely saturated singing tone that is sure to rouse even the toughest of audiences. Finally, a touch of mid boost is there for those moments when you need to do a great guitar solo without altering your overall volume. Characteristically bright and warm, this larger than life pedal is a great example of what can be achieved through classic, vintage analogue methodology.

• Controls: Drive, PreEQ, Volume, Bass,Middle,Treble, Bypass footswitch
• Power Supply: 12V DC Power Adapter
• Dimensions: 98(L) x 40/30(H:Top/Bottom) x 125(W) mm

Tech Specs

• Power In 9 to 12VDC (negative TIP)
• Consumption at 9Vdc Min 300mA Max 400mA
• Consumption at 12Vdc Min 400mA Max 500mA
• Input Sensitivity 1Vpp Max
• Input Impedance <1M Ohm
• Output Impedance < 47K Ohm (Unbalanced)
• DI OUT Impedance < 47K Ohm (Sim. Balanced)
• Preamp Linearity Response 7Hz. to 161Khz. @1db
• S/N ratio Preamp <90db
• S/N ratio Heads -90dbV
• Effect Mix Level Max. 50%
• WET DI Out Mix 100% WET

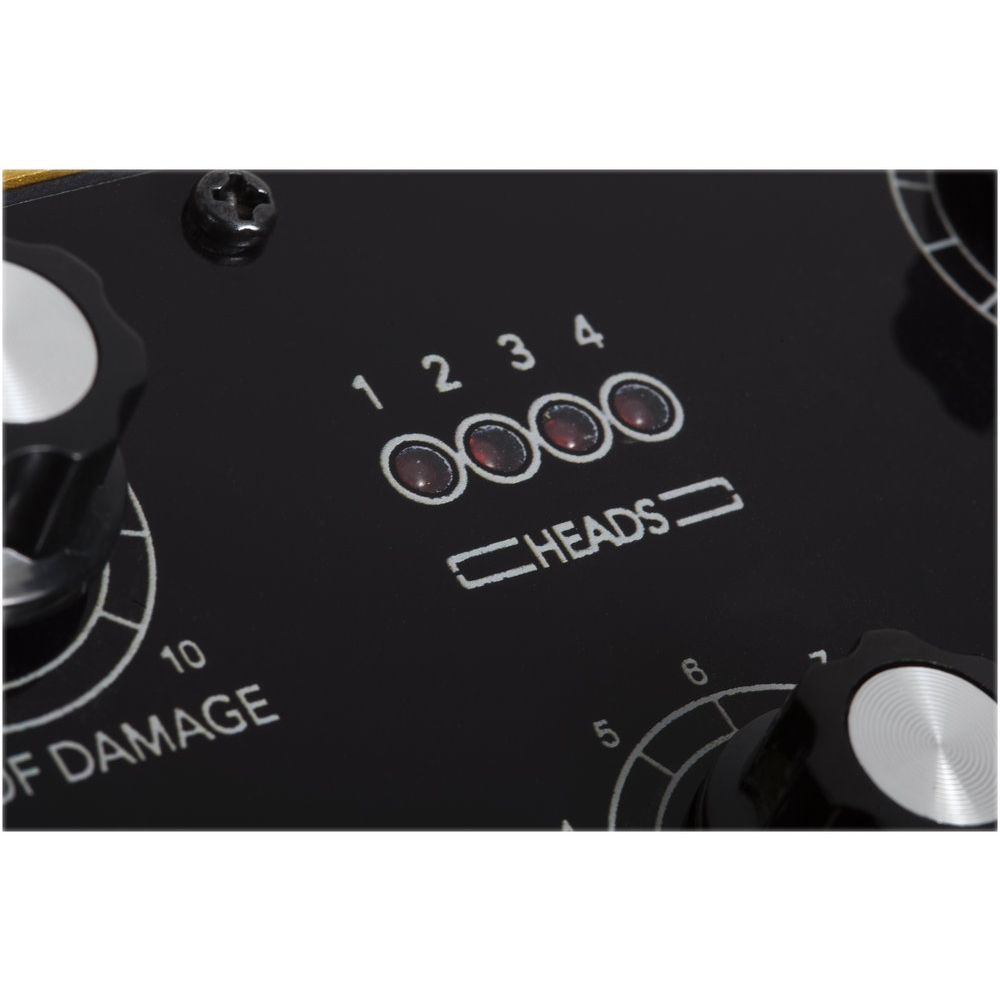

• Heads preset times (H1 87ms)(H2 174ms)(H3 260ms)(H4 348ms)
• Adj Motor speed control max 740ms
• Heads Distortion max 1%THD
• Tone Freq. Roll Off Filter 1Khz. @6db/oct.
• BYP switch Reed Relays for (stop/spillover option)

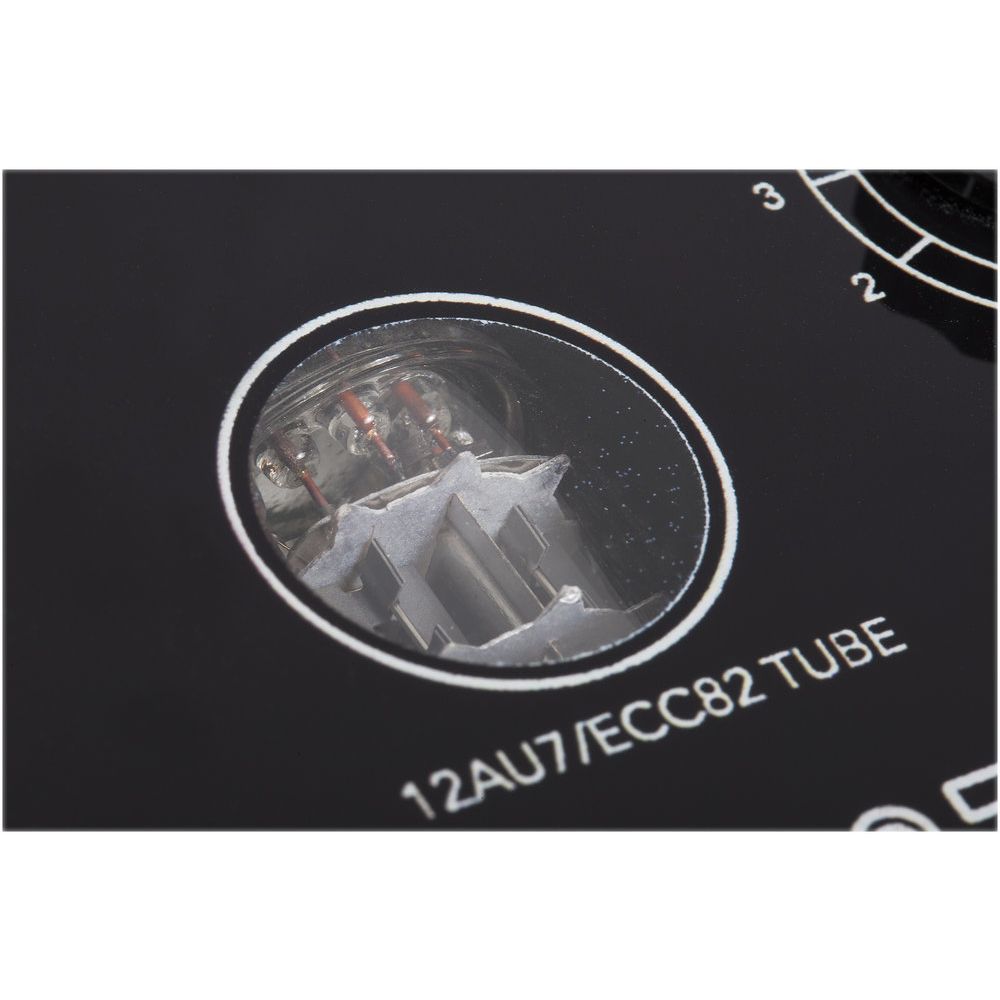

• Output Tube Buffer 12AU7B (Balanced Triode)
• Output Tube Buffer Efficiency >95%
• Estimated tube Life Up to 6000Hrs.
• Larghezza (Width) 220mm. (8,6”)
• Lunghezza (Lenght) 130mm. (5,1”)
• Altezza (Height) 50mm. (2”)
• Peso (Weight) 0,7Kg. (1,5lbs)
