What audio processor does the ZC6 work with?

The ZC6 connects exclusively to dbx ZonePRO processing devices via two RJ-45 connectors using standard CAT5 or CAT5E cable. It relies on the ZonePRO unit for all audio processing and zone assignment, so you must have a compatible ZonePRO device installed in your system.

How far can I run cables from the ZonePRO processor to the ZC6?

Cable runs can reach up to 1000 feet when using parallel wiring with the optional ZC-BOB breakout box and standard CAT5/CAT5E cabling. Shorter distances with direct RJ-45 connection are also supported.

Is programming complicated, or do I need special software?

The ZC6 uses DIP switches for device identification and zone assignment, keeping the wall controller itself simple and field-friendly. Full customization and volume control programming happens at the connected ZonePRO device, so all complex setup is centralized in the processor rather than at each wall panel.

What does the ZC6 physically look like, and will it fit in my installation?

The ZC6 measures 7 inches wide by 5.5 inches tall by 3.5 inches deep with a shallow profile and white finish, designed to mount flush on a wall without taking up much space. Its compact footprint integrates cleanly into studios, venues, and commercial installations where aesthetics and minimal visual impact matter.

Can I use one ZC6 to control multiple zones?

The ZC6 controls volume for connected ZonePRO devices through programmable push-button up/down controls. Zone assignment and the number of zones you can manage depend on your ZonePRO processor configuration and how you program the DIP switches on each controller.

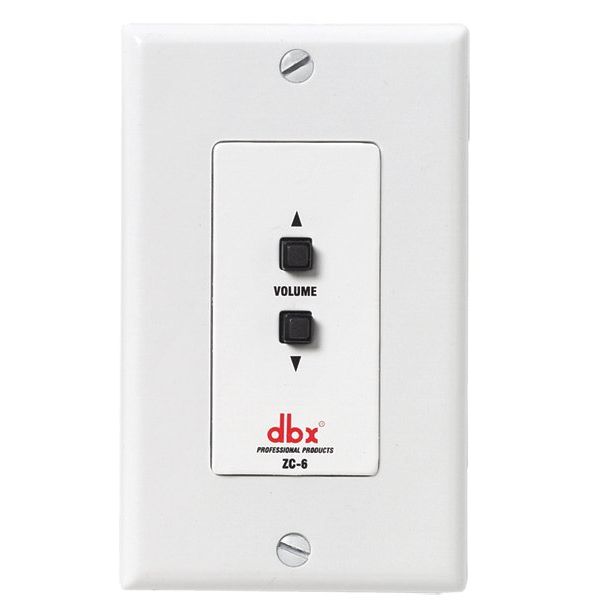

dbx ZC6 Wall-Mounted Zone Controller

The dbx ZC6 is a compact wall-mounted controller designed for multi-zone audio systems, offering straightforward push-button volume management with minimal footprint. Its clean white finish and shallow profile integrate seamlessly into studio and control room environments. This unit delivers professional-grade zone control at a fraction of retail pricing, making it an excellent value for expanding recording setups or managing multiple studio spaces.

System Integration & Connectivity

The ZC6 connects to ZonePRO processing devices via two RJ-45 connectors using standard CAT5 or CAT5E cable, supporting cable runs up to 1000 feet when using parallel wiring with the optional ZC-BOB breakout box. DIP switches enable device identification, allowing you to assign specific zone control functions without complex reconfiguration—essential for keeping studio workflows efficient during session setups.

Control & Programmability

Computer-programmable up/down push-button controls provide direct volume adjustment for connected ZonePRO devices, with full customization available through the connected processing unit. This architecture keeps the wall controller simple and reliable while preserving advanced programming flexibility at the system level, letting you adjust monitoring levels and zone balance during recording and mixing without breaking workflow.

Key Features

Programmable volume control for ZonePRO devices
Computer-programmable push-button up/down volume control
Two RJ-45 connectors for system connectivity
Compatible with CAT5 and CAT5E cabling rated VW-1 or higher
Maximum cable distance: 1000 feet with parallel wiring using ZC-BOB
DIP switches for device identification and assignment
Compact wall-mounted design: 7" x 5.5" x 3.5"
White finish
UL 60065, IEC 60065, EN 55013, E60065 safety certifications

The ZC6 delivers professional audio zone management with dbx's proven reliability, making it a dependable tool for home studios and multi-room recording setups requiring flexible monitoring and playback control.

Condition	New
Country of Manufacture	China
