What inputs and outputs does the VENU360 have?

The unit provides three analog line inputs plus two AES digital inputs on shared connectors, and six XLR line outputs. It also includes a dedicated RTA microphone input for system measurement and tuning.

Can I control this remotely during a show or installation?

Yes. Network-based control is available via iOS, Android, Mac, and Windows, allowing real-time adjustment and monitoring from anywhere in the venue or installation space.

What kind of room correction and crossover options does it offer?

The VENU360 includes a 31-Band Graphic EQ plus 12-Band Parametric EQ with narrow notch capabilities for precise room correction, and supports full-range through mono 6-way loudspeaker crossover configurations. Up to 1000 ms alignment delay per output channel enables phase-coherent multi-zone coverage.

How much latency does this introduce into my signal chain?

Latency is 2.57 ms at 48 kHz or 2.28 ms at 96 kHz, keeping analog and digital signals phase-coherent across your system.

What is the frequency response and dynamic range?

Frequency response is 20 Hz – 20 kHz (±0.5 dB). The 24-bit A/D converter delivers 117 dB A-weighted dynamic range and 114 dB unweighted, ensuring transparent signal capture.

Do I pay sales tax on this order?

Sales tax is collected only on orders shipped to California; orders shipped to any other US state are not charged sales tax at checkout when you buy direct from our website. At a typical 7% rate that is an estimated $90 less at checkout than the same listed price on a marketplace, which collects sales tax as the facilitator in most states. Buyers remain responsible for any use tax their state applies. Free US shipping and 30-day returns are included.

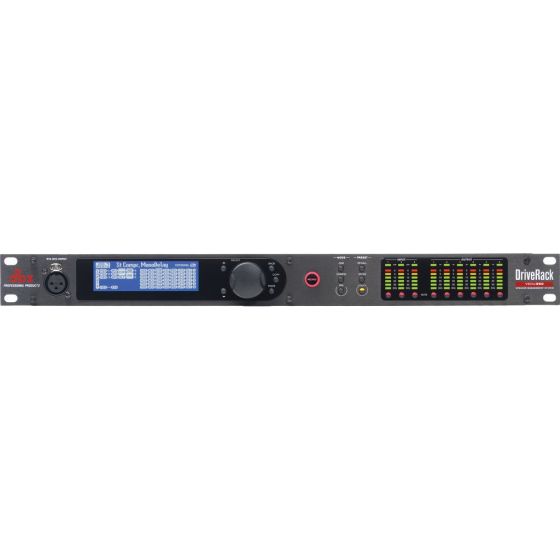

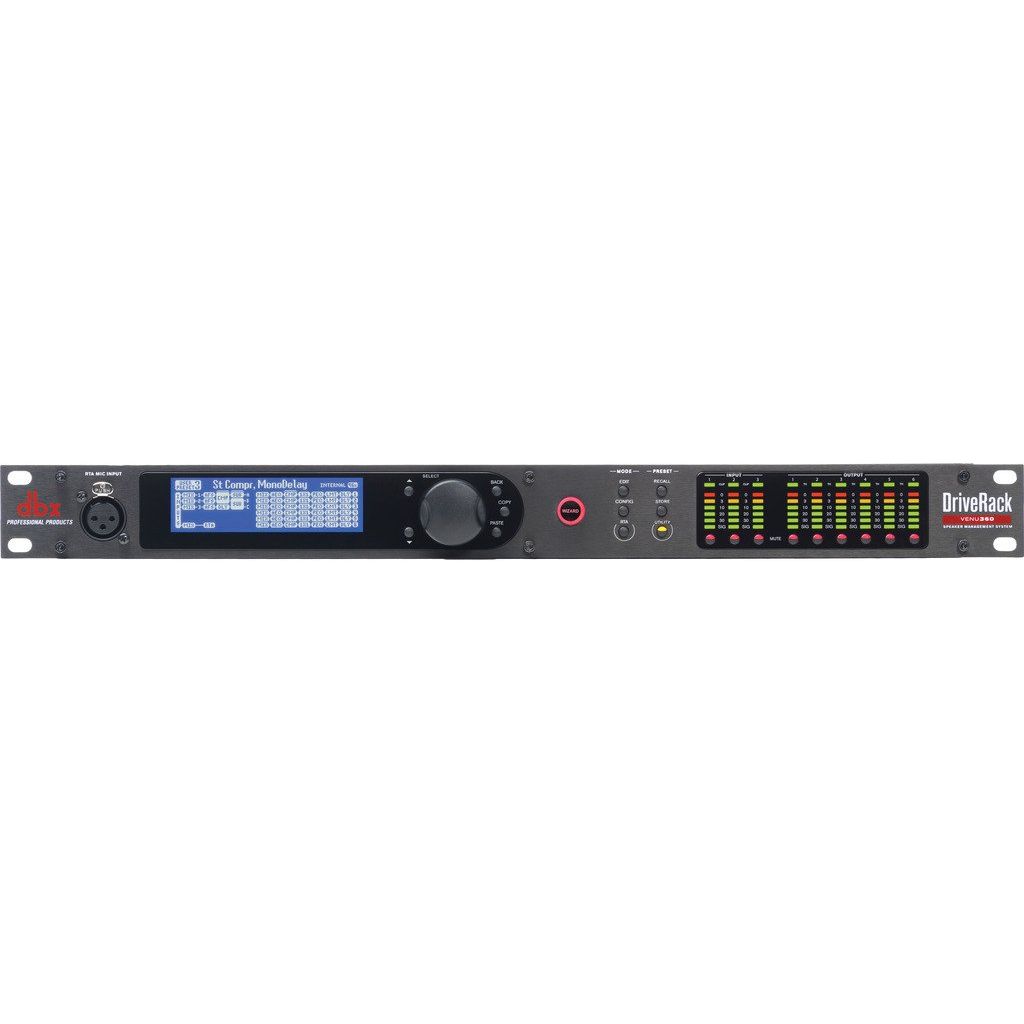

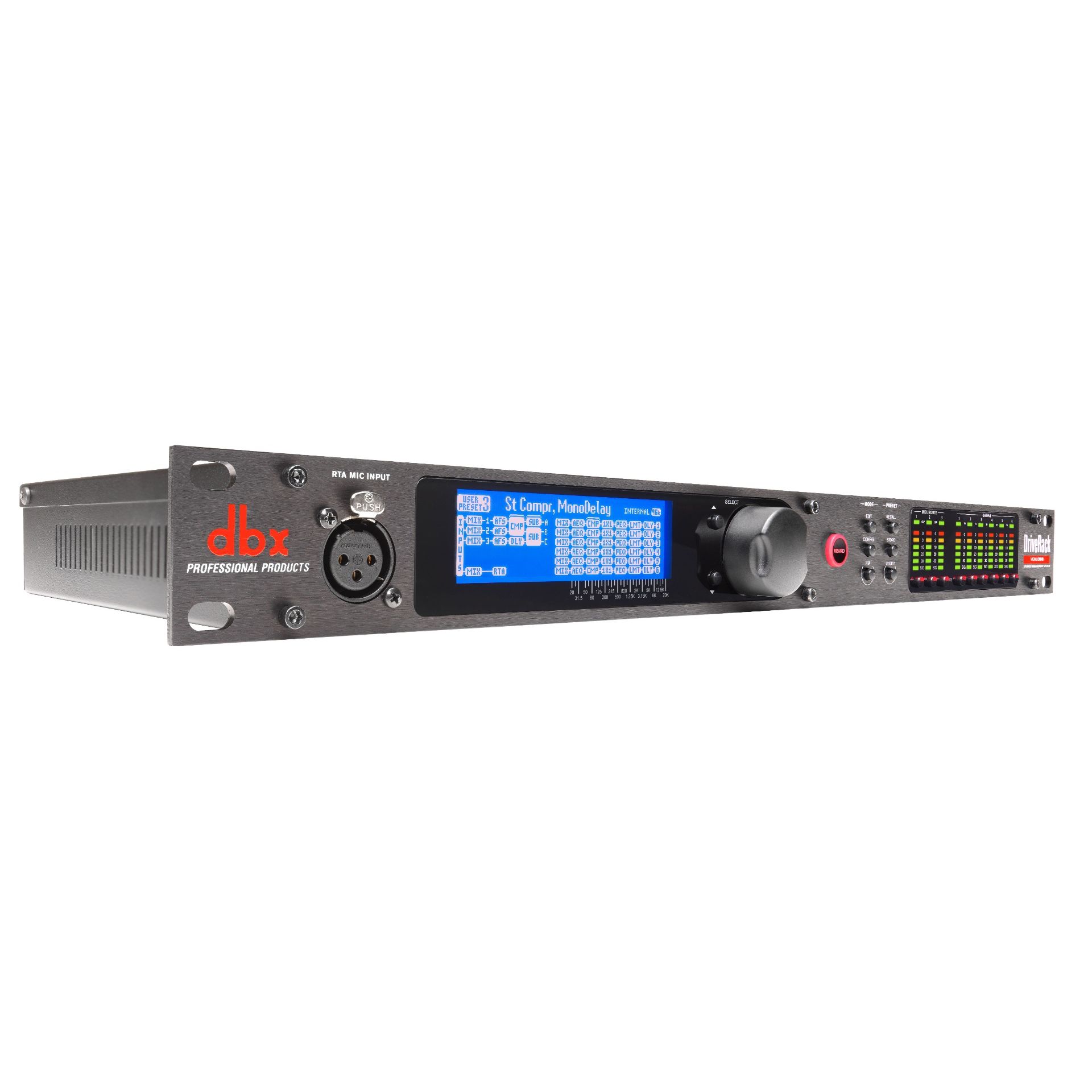

dbx DriveRack VENU360 Complete Loudspeaker Management System

The DriveRack VENU360 is a compact yet powerful loudspeaker management processor that brings studio-grade signal chain discipline to multi-speaker and multi-zone monitoring setups. Its rackmount form factor and intuitive control surface deliver professional system optimization without requiring extensive reconfiguration between sessions. This unit handles the critical work of crossover management, EQ, delay alignment, and RTA measurement in a single integrated platform—essential for tracking rooms, live rooms, and installations where accurate, phase-coherent speaker management directly impacts recording and mixing quality.

Audio Processing & Performance

32-bit floating-point processing at 48 kHz or 96 kHz sample rates ensures transparent signal handling with minimal artifacts. The 24-bit A/D converter with dbx Type IV™ Conversion System captures input with 117 dB A-weighted dynamic range, while 2.57 ms latency at 48 kHz (or 2.28 ms at 96 kHz) keeps analog and digital signal chains phase-coherent across your monitoring and recording outputs.

System Control & Connectivity

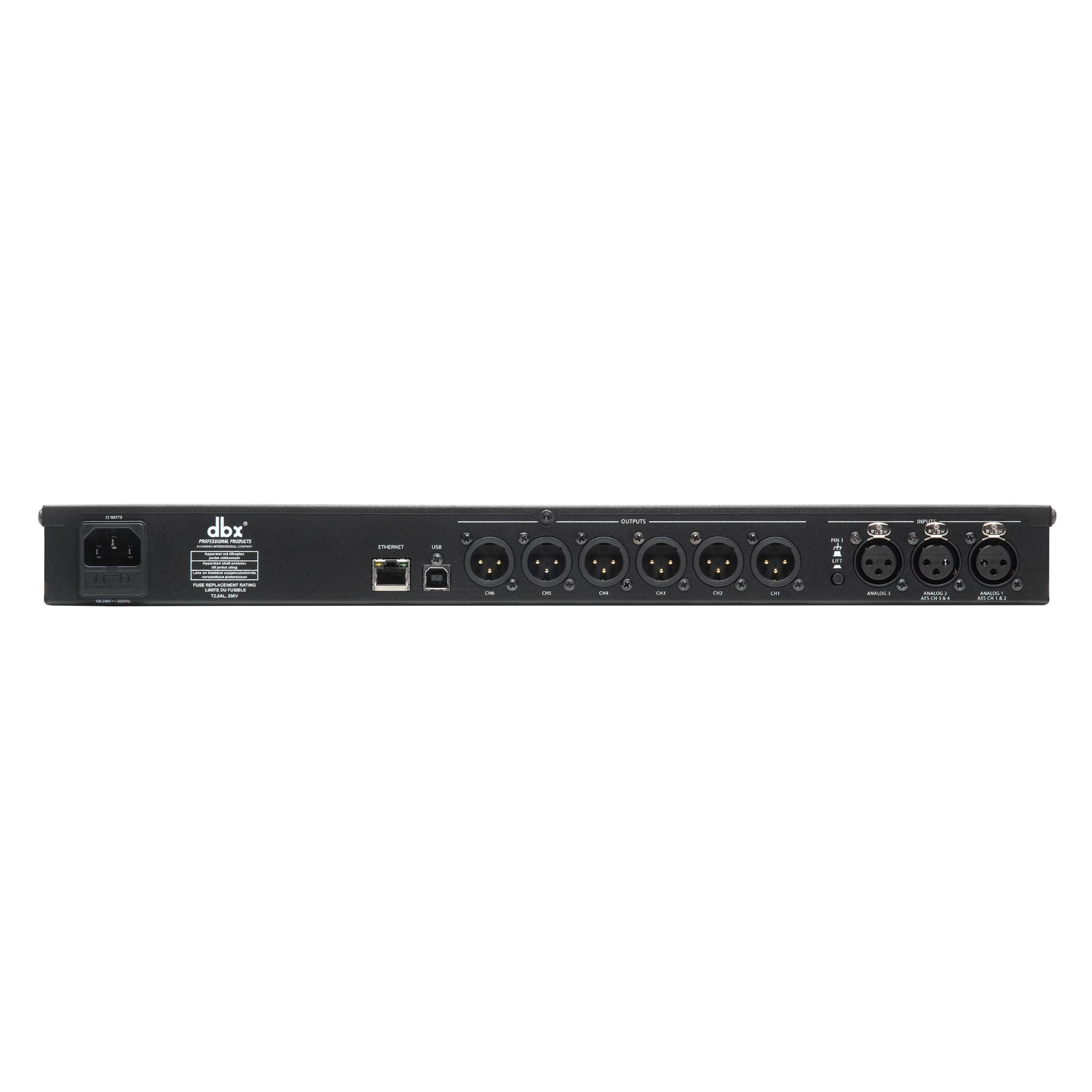

Network-based control via iOS, Android, Mac, and Windows allows real-time adjustment from the control room, tracking floor, or mix position without breaking the signal chain. The processor accepts three analog line inputs plus two AES digital inputs on shared connectors, routes audio through six XLR line outputs, and includes a dedicated RTA microphone input for rapid acoustic measurement and speaker tuning.

Key Features

19" rackmount format with 1.75" height and 8.0" depth for standard AV installations
Supports full-range through mono 6-way loudspeaker crossover configurations
31-Band Graphic EQ plus 12-Band Parametric EQ with narrow notch capabilities for precise room correction
Up to 1000 ms alignment delay per output channel for phase-coherent multi-zone coverage
Maximum input level +28 dBu; maximum output level +22 dBu
Frequency response 20 Hz – 20 kHz (±0.5 dB) with 114 dB unweighted A/D dynamic range
Low power consumption at 18 W with universal 100–240 VAC 50/60 Hz operation
RTA mic input for automated system measurement and optimization

The VENU360 combines studio-grade signal processing with proven loudspeaker management, making it essential for recording environments and control rooms requiring both acoustic flexibility and transparent, phase-aligned monitoring.

Condition	New
Country of Manufacture	China

Best suited for	Live Performance, Installed Systems, Touring, Multi-Zone Coverage
Tonal character	Transparent processing, phase-coherent, precise room correction, minimal latency, studio-grade signal handling
Less specialized for	Home Recording, Practice (it will do it; instruments voiced for that style do it more easily)
Skill level	Intermediate / Advanced / Professional
