Crown IT9000HD

Crown IT9000HD

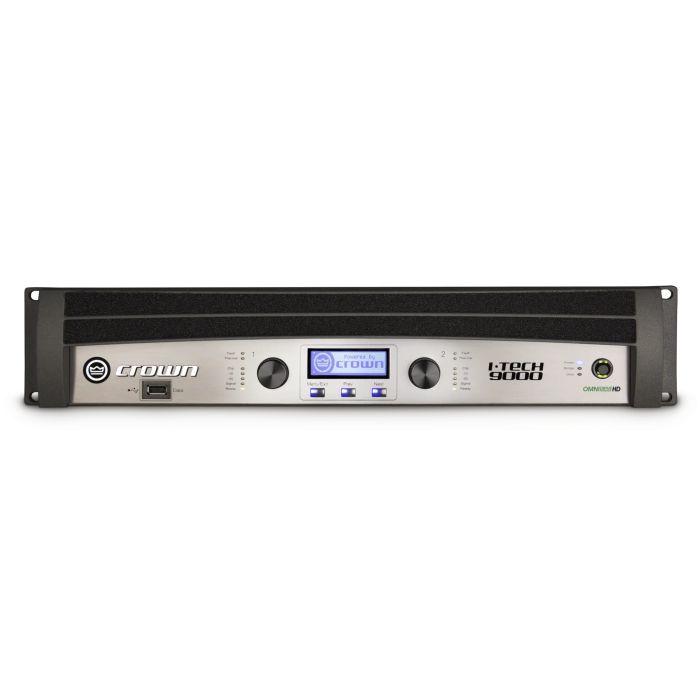

The Crown IT9000HD is a high-powered amplifier engineered for demanding studio and post-production monitoring applications. This unit delivers exceptional headroom and processing capability in a chassis built to maintain sonic integrity across extended sessions, making it the choice for control rooms, mastering suites, and multi-channel monitoring systems that demand reliability and precise audio reproduction.

Power & Amplification for Studio Monitoring

Rated at 3500 watts per channel at 4 ohms and 1500W per channel at 8 ohms, the IT9000HD provides ample driving force for active monitor systems and multi-channel studio setups. A damping factor exceeding 5000 (20 Hz to 100 Hz at 8 ohms) ensures tight, controlled low-end response with minimal speaker interaction, critical for accurate mix translation.

Audio Processing & Signal Chain

The integrated BSS OMNIDRIVEHD™ processing engine with Linear Phase FIR filters and LevelMAX™ limiters manages complex monitoring chains and protects equipment during peak transients. 24-bit 192 kHz Cirrus Logic A/D and D/A converters preserve audio fidelity throughout the signal path, while AES/EBU digital input (24-bit, 32–96 kHz with sample-rate conversion) and TCP/IP and HiQnet network connectivity over 100 Mb Ethernet enable flexible studio integration and remote gain management.

Key Features

• 3500 watts per channel at 4 ohms
• 1500 watts per channel at 8 ohms
• Frequency response ±0.25 dB (1 watt, 20 Hz–20 kHz)
• Signal-to-noise ratio greater than 112 dB
• Total harmonic distortion less than 0.1% at full rated power
• Damping factor greater than 5000 (20 Hz to 100 Hz at 8 ohms)
• BSS OMNIDRIVEHD™ processing with Linear Phase FIR filters and LevelMAX™ limiters
• 24-bit 192 kHz Cirrus Logic A/D and D/A converters
• AES/EBU digital input with onboard sample-rate converter (24-bit, 32–96 kHz)
• TCP/IP and HiQnet network control via 100 Mb Ethernet
• LCD control screen for settings, attenuation, muting, error monitoring, and DSP preset recall

The IT9000HD combines raw power, advanced digital processing, and networked control into a platform built to anchor professional monitoring systems with precision and confidence.
