Crown DCI2X600N DCI2X600 Network

Crown DCI2X600N DCI2X600 Network Power Amplifier

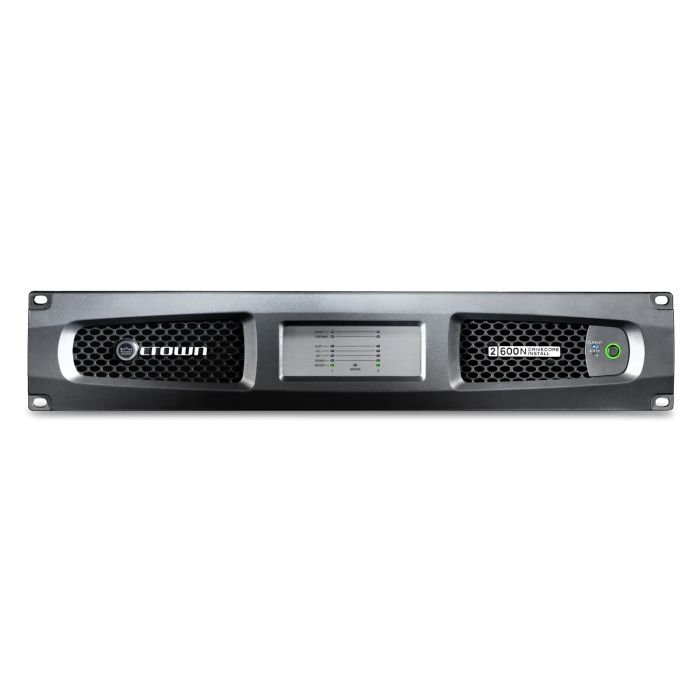

The Crown DCI2X600N is a compact, networked power amplifier engineered for studio facilities and production environments where remote monitoring, precise control, and intelligent signal processing are essential. Its 2 RU rackmount footprint and 18.8 lb weight integrate seamlessly into project studios and post-production suites, while the onboard DSP and HiQnet connectivity transform it into an intelligent, centrally managed component that responds to your session needs rather than a passive amplifier.

Power & Performance for Studio Workflows

Delivering 600W per channel across 2, 4, 8, or 16 ohm loads—as well as 70V and 100V distributed systems—the DCI2X600N scales to match small studio setups and larger mastering facilities alike. Thermal dissipation peaks at 549 BTU/hr, allowing sustained operation in confined equipment racks without active cooling requirements, protecting nearby outboard gear from heat stress during long tracking or mixing sessions.

Network Control & Built-In DSP Processing

Real-time monitoring and configuration happen over standard TCP/IP via HiQnet protocol, eliminating the need for dedicated control lines or physical access to the amplifier during critical sessions. The integrated DSP engine handles crossovers, LevelMAX limiting, parametric EQ, delay, matrix mixing, and speaker line monitoring—all configurable remotely and storable in presets for rapid recall across different studio configurations and projects.

Key Features

• 600W output per channel at 2, 4, 8, or 16 ohms
• 600W output per channel at 70V and 100V Vrms
• 2 RU rackmount form factor
• Weight: 18.8 lbs / 8.5 kg
• 15 LED indicators for Bridged Mode, Clip, Fault, Level, Signal, Standby, and Thermal status
• Thermal dissipation: 549 BTU/hr maximum
• BLU Link digital audio transport with RJ45 rear-panel connectors
• Balanced analog inputs
• Onboard DSP with LevelMAX limiters, EQ, delay, matrix mixer, and speaker line monitoring
• HiQnet protocol over TCP/IP for network monitoring and control
• Programmable GPIO ports
• EN 54-16 compliant for life safety applications

The DCI2X600N combines professional-grade amplification with studio-class network control, making it an ideal choice for producers, engineers, and facilities requiring both power density and intelligent remote management in a single compact chassis.
