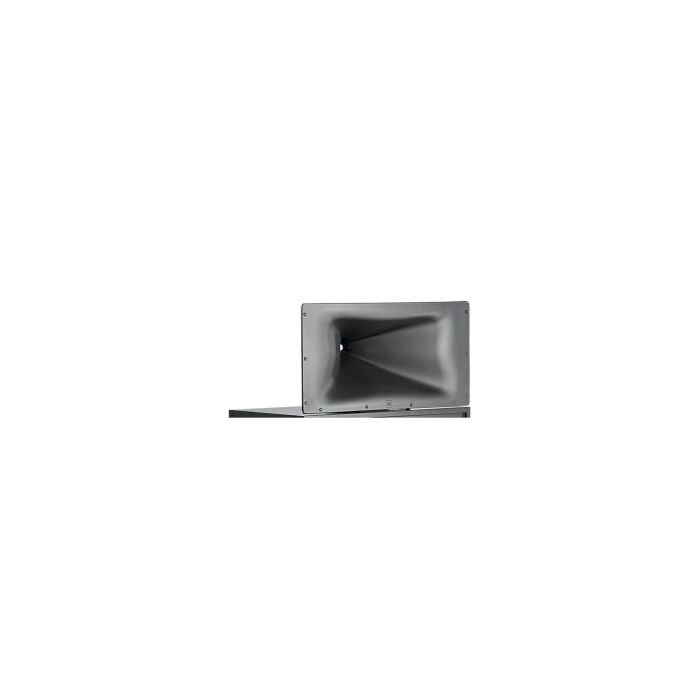

JBL 3722N-HF HF Horn Section Only – Cinema ScreenArray
The JBL 3722N-HF is the high-frequency horn component of JBL's professional cinema ScreenArray system, engineered for controlled directivity and consistent coverage in theatrical installations. This standalone top unit pairs a 2374 ScreenArray horn with a 2418H-1 compression driver to deliver pristine treble and midrange detail across the cinema frequency spectrum. The 3722N-HF requires the separate 3739 low-frequency section (dual 15-inch drivers) to function as a complete system.
Acoustic Performance
The horn section delivers 105 dB sensitivity with 8-ohm nominal impedance, integrating seamlessly into passive cinema arrays where the crossover network routes frequencies above 1300 Hz to the HF driver. The 2374 ScreenArray horn is purpose-built to minimize audience edge diffraction and maintain coherent soundfields across wide seating areas, making it the choice for commercial cinema environments where uniform coverage matters.
Components & Build
All internal components arrive pre-assembled: the compression driver, horn, passive crossover network, and adjustable mounting bracket are factory-integrated for immediate installation onto the low-frequency cabinet. The compact form factor and integrated bracket simplify rigging in retrofit or new-build cinema installations.
Key Features
- Pre-assembled 2374 ScreenArray high-frequency horn
- 2418H-1 high-frequency compression driver included
- Passive crossover network integrated
- 8-ohm nominal impedance
- 105 dB sensitivity (at rated voltage and distance)
- Crossover frequency: 1300 Hz
- Adjustable mounting bracket for cabinet integration
- Compact cabinet: 15 × 30 × 15 inches
- Cinema-grade ScreenArray directivity pattern
- Compatible with JBL 3739 low-frequency section (sold separately)
The 3722N-HF brings proven JBL cinema engineering to theaters requiring precise high-frequency response and controlled directivity in a modular, purpose-built package.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL 3722N-HF is a high-frequency horn section designed for cinema and theatrical mastering environments where pristine treble and controlled directivity are essential for mixing and monitoring. Studio professionals and post-production engineers value this component's 105 dB sensitivity and integrated passive crossover for accurate high-end reproduction during mixing sessions. This is the right choice if you're setting up a reference monitoring system that requires cinema-grade fidelity and the flexibility of a modular architecture.
Who This Is For
Great for
- ✓ cinema installations
- ✓ theatrical sound
- ✓ commercial venues
Not the best pick for
- – live band amplification
- – portable pa systems
- – home audio
Skill level: Professional
Frequently Asked Questions
What do I need to do to make this a complete system?
The 3722N-HF is the high-frequency section only; you must purchase the separate JBL 3739 low-frequency section (dual 15-inch drivers) to create a functioning complete ScreenArray cabinet. The two components integrate via the passive crossover network, which crosses over at 1300 Hz.
Is this suitable for live band sound or portable PA use?
No. The 3722N-HF is engineered specifically for fixed cinema installations and theatrical sound systems. It is not designed for live amplification or portable PA applications.
What compression driver and horn come with this unit?
The 3722N-HF includes the 2418H-1 compression driver paired with the 2374 ScreenArray horn, both pre-assembled and integrated into the cabinet with the passive crossover network and adjustable mounting bracket ready for installation.
What are the dimensions and how is it mounted?
The cabinet is 15 × 30 × 15 inches and ships with an adjustable mounting bracket pre-integrated for direct rigging onto the low-frequency cabinet in cinema retrofit or new-build installations.
What impedance and sensitivity should I expect?
The 3722N-HF delivers 105 dB sensitivity at rated voltage and distance, with 8-ohm nominal impedance, integrating into passive cinema arrays without requiring active amplification or processing of the crossover signal.
