What processors is the BLUCARD-IN compatible with?

The BLUCARD-IN is compatible with all Soundweb London BLU series processors, including the BLU-800, BLU-320, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16. Installation requires two Combicon connectors on your processor.

Can I use both microphones and line-level sources on the same card?

Yes. Each of the four channels accepts balanced and unbalanced audio sources and features configurable phantom power per channel, so you can mix mics and line sources on a single BLUCARD-IN card.

What is the audio specification and conversion quality?

The card features a 24-bit, 48kHz A/D converter with delta-sigma conversion technology for clean, low-noise digital capture. Input sensitivity ranges from 7–26 dBu with software-controlled analog gain adjustment in 6dB steps from 0dB to 48dB.

How is gain and level control managed?

Gain is adjusted via software in 6dB increments across a 0dB to 48dB range, providing precise level management for all four channels. A signal-present LED indicator offers visual feedback during setup and operation.

Is this card suitable for live sound and touring applications?

Yes. The BLUCARD-IN is designed for professional live performance and installed sound systems where reliable multi-channel audio acquisition and networked digital control are required.

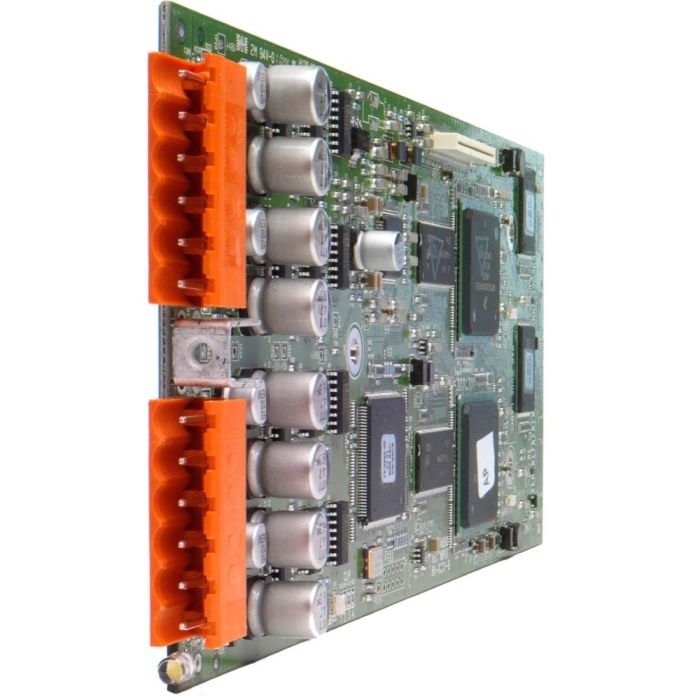

BSS BLUCARD-IN I/O Card

The BSS BLUCARD-IN is a professional analog input expansion card designed for integration into Soundweb London BLU series processors. This card delivers four channels of balanced mic/line input with comprehensive software control, making it essential for home studios and project facilities that need flexible multi-channel audio acquisition and routing within a networked digital audio infrastructure.

Audio Conversion & Recording Quality

The card features a 24-bit, 48kHz A/D converter with delta-sigma conversion technology, ensuring clean, transparent digital capture with input sensitivity ranging from 7–26 dBu. Each of the four channels accepts both balanced and unbalanced audio sources, with configurable phantom power available per channel for microphone tracking and overdub sessions.

Studio Integration & Workflow Control

Installation into compatible Soundweb London processors requires two Combicon connectors for secure integration. Software-controlled analog gain adjustment in 6dB steps from 0dB to 48dB enables precise level matching and gain staging across all four channels during tracking, while a "Signal present" LED indicator provides immediate visual feedback for monitoring input levels and signal integrity.

Key Features

4 analog input mic/line channels
Balanced and unbalanced input compatibility
Configurable phantom power per channel
24-bit, 48kHz A/D converter with delta-sigma conversion
Software-controlled analog gain in 6dB steps (0dB to 48dB)
Input sensitivity range: 7–26 dBu
Two Combicon connectors
Signal present LED indicator
Weight: 1.00 lbs
Compatible with BLU-800, BLU-320, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16

The BLUCARD-IN delivers transparent analog input conversion for any Soundweb London BLU system requiring expanded channel capacity to capture professional-grade recordings with versatile microphone and line-level source support.
