AMX UVC1-4K 4K HDMI to USB Capture
Share
- Brand new in original box
- Full AMX manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- AMX-UVC1-4K
. Description

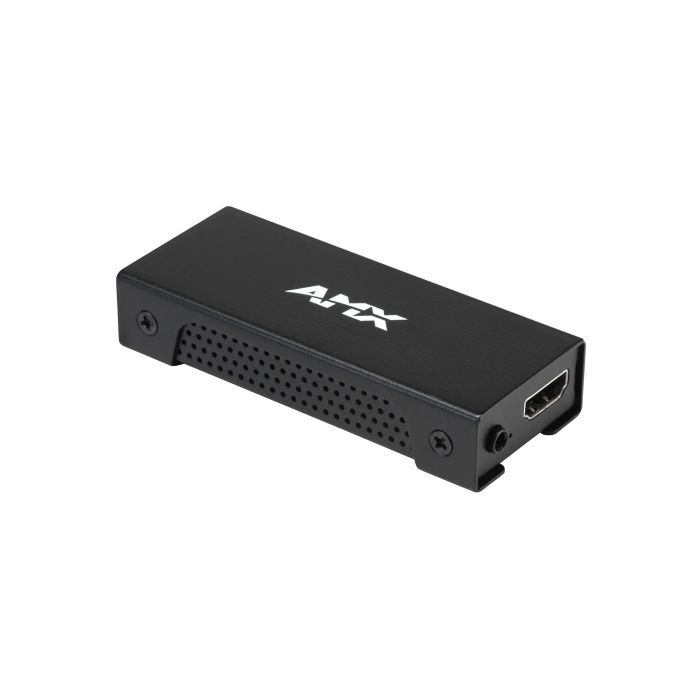

AMX UVC1-4K 4K HDMI to USB Capture
The AMX UVC1-4K is a compact, bus-powered capture device built for seamless integration into home studio and professional recording workflows. Its small footprint and straightforward connectivity make it an efficient solution for capturing high-resolution HDMI sources—from synths, drum machines, video playback, or external hardware—without requiring external power or complex driver installation.
Capture Specifications & Performance
This device accepts HDMI 2.0 video input supporting resolutions up to 4096×2160p@60 with 4:4:4 chroma, HDR, and 10-bit Deep Color, preserving full-quality source material for your sessions. Output over USB 3.0 delivers 3840×2160p@30fps in NV12 or I420 formats, or 1920×1080p@60fps in YUY2 or P010 formats, giving you flexible options for different recording, streaming, and production workflows.
Connectivity & Compatibility
The device features one HDMI Type A input, one 3.5mm TRS analog audio jack, and one USB Type C 3.0 socket, supporting both embedded HDMI audio and external analog stereo sources from your gear. Full UVC 1.1 compliance ensures plug-and-play operation on Windows and macOS systems without requiring proprietary software or drivers—critical for stable, zero-latency recording sessions.
Key Features
- HDMI 2.0 input supports up to 4096×2160p@60 4:4:4 with HDR and 10-bit Deep Color
- USB 3.0 output: 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010)
- One HDMI Type A input socket
- 3.5mm TRS analog stereo audio input jack
- USB Type C 3.0 connection
- UVC 1.1 compliant — no drivers required
- Accepts HDMI embedded audio and 3.5mm analog audio inputs
- Windows and macOS fully supported
- Compact dimensions: 0.66 x 1.43 x 3.44 inches
- Lightweight at 3.3 oz
- Operating temperature range: 32°F to 104°F
- Operating humidity: 10% to 90% RH (non-condensing)
The AMX UVC1-4K delivers professional-grade 4K video capture with universal DAW and software compatibility and minimal setup friction, making it a dependable tool for capturing, mixing, and producing content in home and professional studios.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Taiwan |
Reviews
At a Glance
The AMX UVC1-4K captures HDMI sources up to 4K resolution with full 4:4:4 chroma, HDR, and 10-bit color depth, then delivers them to your Mac or Windows DAW or recording software via USB 3.0 at 4K/30fps or 1080p/60fps. Home studios and producers can feed camera outputs, synthesizers with HDMI video, or external hardware directly into editing or streaming applications without proprietary software. Its compact size, zero-driver setup, and support for both embedded and external analog audio make it seamless for multitrack recording sessions, podcast production, and content workflows.
Who This Is For
Great for
- ✓ Live streaming
- ✓ Content production
- ✓ Broadcast
- ✓ Studio recording
Not the best pick for
- – Analog-only workflows
- – SDI-based installations
Skill level: Beginner · Intermediate · Advanced · Professional
Frequently Asked Questions
What video formats and frame rates does this capture at?
The UVC1-4K accepts HDMI 2.0 input up to 4096×2160p@60fps with HDR and 10-bit color. USB output delivers 3840×2160p@30fps (NV12 or I420 formats) or 1920×1080p@60fps (YUY2 or P010 formats), letting you choose based on your streaming or recording bitrate needs.
Do I need to install drivers or software?
No. The device is UVC 1.1 compliant and works as a plug-and-play USB camera on Windows and macOS without any proprietary drivers or software installation required.
How do I connect audio—can I use my mixer or interface output?
Yes. The UVC1-4K accepts HDMI-embedded audio or a 3.5mm TRS analog stereo input, so you can feed it directly from a camera's HDMI output or route a mixer, interface, or microphone preamp into the analog jack.
Does this require external power?
No, the device is fully bus-powered over USB 3.0, so you only need one USB Type C cable to your computer—ideal for portable setups and live streaming on the road.
How does this compare to the Elgato Cam Link 4K or Blackmagic UltraStudio Recorder 3G?
The AMX UVC1-4K offers true 4K input acceptance and UVC compliance with zero drivers, making it simpler than some alternatives. It's smaller and lighter than most dock-style capturers, and supports both HDMI and analog audio, giving you more flexibility than capture devices locked into one input format.
