AMX SDX-514M-DX Solecis 5x1 4K Muti-Format Digital Switcher with DXLin
Description

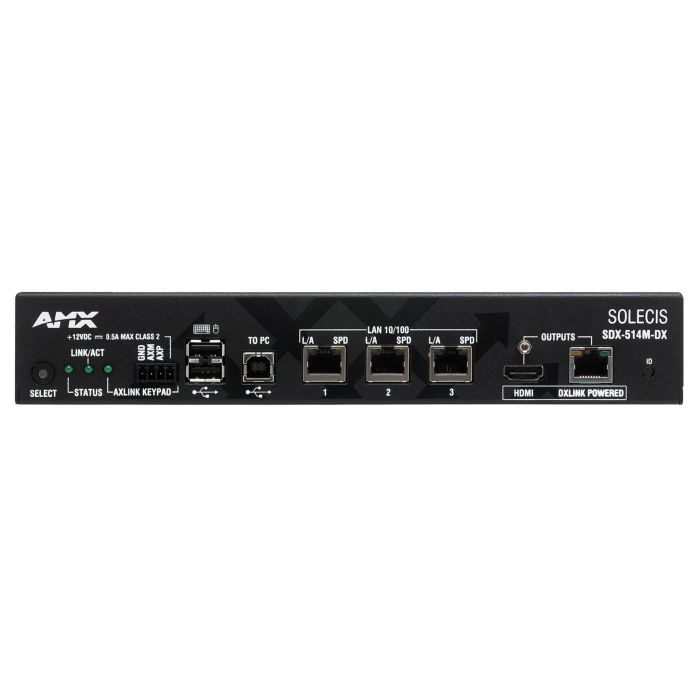

AMX SDX-514M-DX Solecis 5x1 4K Multi-Format Digital Switcher with DXLink Output
The AMX SDX-514M-DX is a professional-grade digital switcher designed for multi-room recording studios, post-production suites, and networked audio/video facilities where source routing and 4K distribution demand reliable, low-latency switching. Its compact footprint integrates seamlessly into mobile rigs and permanent studio setups, handling five independent inputs without workflow interruption.
Video & Audio Processing
This switcher manages five inputs—three HDMI and two VGA with embedded audio—and routes them through built-in scaling that supports full 4K60 4:4:4 resolution, as well as cinema 4096 x 2160p formats at 24/25/30 Hz and 4:2:0 at 60 Hz. Audio processing includes Dolby TrueHD support, ensuring lossless surround content passes through uncompressed during recording and monitoring sessions.
Studio Routing & Remote Integration
Dual outputs provide an HDMI feed and a DXLink mirroring output that transmits video and control over shielded Ethernet cabling up to 100 meters, enabling distributed monitoring across isolated recording rooms or breakout spaces without signal degradation. USB Type B connectivity integrates with DAW control surfaces and studio automation systems for centralized session management.
Key Features
- 3 HDMI inputs and 2 VGA inputs with embedded audio
- 1 HDMI output and 1 DXLink mirroring output
- Supports 4K60 4:4:4 video resolution
- Supports 3840 x 2160p @ 24/25/30 Hz
- Supports 4096 x 2160p @ 24/25/30 Hz (cinema format)
- Supports 3840 x 2160p @ 60 Hz, 4:2:0
- Supports 4096 x 2160p @ 60 Hz, 4:2:0
- Dolby TrueHD audio format support
- Built-in scaling for multi-format video standards
- DXLink transmission over shielded Ethernet up to 100 meters
- USB Type B control connectivity
- Compact dimensions: 5.50" W × 11.00" H × 11.00" D
- RoHS, FCC Class A, CE, UL-Listed, CSA Approved, IEC60950, UL94-V0 certified
The SDX-514M-DX delivers studio-grade switching and extended-distance signal distribution in a reliable, space-efficient package.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX SDX-514M-DX is a professional-grade 4K multi-format digital switcher engineered for AV and broadcast environments requiring reliable source switching and extended video distribution over standard Ethernet cabling. Its five independent inputs (three HDMI, two VGA with embedded audio) support full 4K60 4:4:4, cinema 4K formats, and Dolby TrueHD lossless audio, with built-in scaling to handle multiple video standards in a single workflow. This switcher is purpose-built for AV system integration and live broadcast; it is not designed for music production or audio-only studio work.
Who This Is For
Great for
- ✓ AV installation
- ✓ corporate conferencing
- ✓ broadcast
- ✓ live event production
- ✓ distributed video systems
Not the best pick for
- – music production
- – live sound reinforcement
- – home audio
Skill level: Professional
Frequently Asked Questions
What video formats and resolutions does the SDX-514M-DX support?
The switcher supports full 4K60 4:4:4 resolution, cinema 4K (4096 x 2160p) at 24/25/30 Hz, standard 4K (3840 x 2160p) at 24/25/30 Hz, and 4K at 60 Hz in 4:2:0 chroma subsampling. Built-in scaling allows it to handle multiple video standards across its five inputs.
How far can I transmit video using the DXLink output?
The DXLink mirroring output transmits video and control data over shielded Ethernet cabling up to 100 meters, eliminating the need for long HDMI runs in distributed AV systems and venue installations.
What inputs and outputs does this switcher have?
The SDX-514M-DX features three HDMI inputs and two VGA inputs with embedded audio, plus one HDMI output and one DXLink output. USB Type B connectivity allows control integration with larger automation platforms.
Does it support surround audio formats?
Yes, the switcher supports Dolby TrueHD, ensuring lossless surround audio passes through uncompressed alongside video.
What is the physical size and where can it be installed?
The SDX-514M-DX measures 5.50 inches wide by 11.00 inches high by 11.00 inches deep, making it compact enough for fixed installations, mobile event setups, and rack-mount environments where space efficiency is important.
