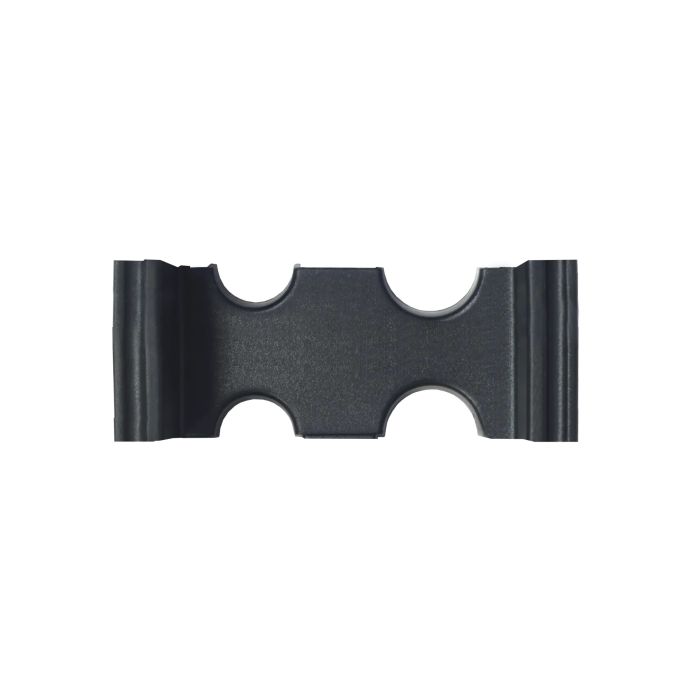

AMX HPX-CPTS100-W Cable Passthru Spacer module for Hydraport
Description
AMX HPX-CPTS100-W Cable Passthru Spacer Module for HydraPort
This passive spacer module integrates seamlessly into AMX HydraPort chassis systems, expanding cable management capacity without adding complexity or power draw. The HPX-CPTS100-W slides directly into a single HydraPort slot and works transparently with existing infrastructure, making it an essential component for studios and control rooms managing multiple cable runs in compact rack environments.
Cable Management & Integration
The module adds two circular openings to the standard two openings already present in HydraPort chassis, yielding a total of four pass-thru points for cable routing. The dual aperture sizes—11.5mm small and 14mm large diameter holes—accommodate various connector types and cable gauges, providing flexibility for mixed signal paths and multitrack setups without requiring adapter plates or secondary routing solutions.
System Compatibility & Design
Engineered as a passive spacer with zero power requirements, this module operates entirely through mechanical integration. It occupies one HydraPort Unit slot and maintains full compatibility with AMX HPX-600, HPX-900, and HPX-1200 chassis, ensuring drop-in installation across the current HydraPort product line.
Key Features
- Two additional circular cable pass-thru openings for expanded routing capacity
- Accommodates total of four cables when combined with existing HydraPort openings
- Small pass-thru hole size: 11.5mm diameter
- Large pass-thru hole size: 14mm diameter
- Utilizes one HydraPort Unit slot
- Compatible with AMX HPX-600 chassis
- Compatible with AMX HPX-900 chassis
- Compatible with AMX HPX-1200 chassis
- Passive spacer module—no power requirements
- Enables flexible multi-gauge cable management in professional installations
This straightforward yet essential component solves cable management constraints in HydraPort systems without introducing additional complexity or dependencies.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX HPX-CPTS100-W is a passive spacer module that expands cable routing in HydraPort chassis systems, adding two additional pass-thru openings to support four total cable runs with flexible aperture sizing. Studio and installation engineers use it to manage multiple signal chains and power cables in a single rack slot without introducing latency, power draw, or signal interference. It's a no-fuss mechanical solution for keeping your HDBaseT or digital audio infrastructure organized in a compact footprint.
Who This Is For
Great for
- ✓ Install Audio
- ✓ System Integration
- ✓ Rack Management
Skill level: Professional
Frequently Asked Questions
What HydraPort chassis models is this compatible with?
The HPX-CPTS100-W works with AMX HPX-600, HPX-900, and HPX-1200 chassis. It occupies one HydraPort Unit slot and installs as a direct drop-in without modifications.
How many cables can this module handle, and what sizes?
Combined with the two existing openings in the HydraPort chassis, this spacer adds two more pass-thru points for a total of four routing channels. The module includes both 11.5mm small and 14mm large diameter holes to accommodate different cable gauges and connector types.
Does this module require power or consume any power?
No. The HPX-CPTS100-W is a completely passive mechanical spacer with zero power requirements, making it ideal for installations where power budget or signal integrity is a concern.
What's the advantage of having dual aperture sizes?
The two different hole sizes (11.5mm and 14mm) let you route multiple cable gauges and connector families through a single module without needing adapter plates or secondary routing solutions, keeping your rack clean and reducing installation labor.
