AMX DVX-2255HD-SP 6x3 All-In-One Presentation Switcher with 8 Ohms amp
Share
Out of stock

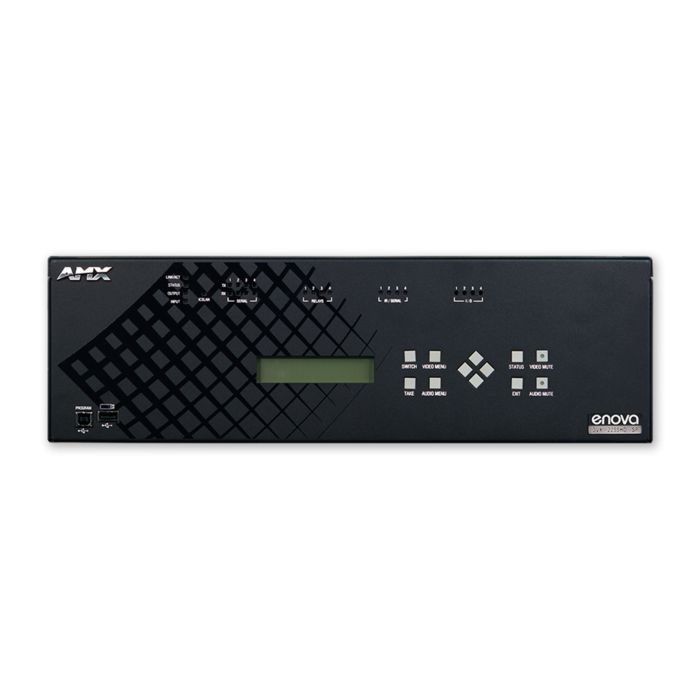

AMX DVX-2255HD-SP 6x3 All-In-One Presentation Switcher with 8 Ohms amplifier
$6,832 In stock
View the new one →
In stock now: similar gear
- SKU
- FG1906-12-B
Price when last in stock
Description
AMX DVX-2255HD-SP 6x3 All-In-One Presentation Switcher with 8 Ohms Amplifier — B-Stock
The DVX-2255HD-SP is a compact, 2RU rack-mount all-in-one platform designed for recording studios, post-production facilities, and live streaming setups that need integrated video matrix switching, embedded audio processing, and amplified speaker drive in a single chassis. This architecture eliminates the need to chain separate processors, audio interfaces, and amplifiers, streamlining session workflow and reducing cable clutter in the rack.
Video Switching & Signal Processing
The 6x3 HDMI matrix routes video from six inputs (2 DVI-I, 2 HDMI, 2 DXLink) to three outputs with real-time scaling and analog-to-digital conversion built in. A twisted pair transmitter extends signal reach over longer cable runs, essential when monitoring displays or reference video systems are positioned remotely from the main recording workstation.
Audio & Control Architecture
The integrated 2x25W 8-ohm stereo amplifier directly drives studio reference monitors or headphone amplifiers without requiring external amp modules, while onboard audio DSP handles mix monitoring, echo cancellation, feedback suppression, and parametric EQ for tracking and mixing sessions. A full NetLinx Studio programmable controller is embedded for session automation and workflow control; three RS-232 ports and one RS-485 port manage device integration, and Fast Ethernet (10/100 Mbit/s) supports network-based remote monitoring and control.
Key Features
- 6 inputs x 3 outputs HDMI matrix switching
- Input connectivity: 2 DVI-I, 2 HDMI, 2 DXLink, 4 audio inputs
- Integrated 2x25W stereo amplifier rated 8-ohm load
- Built-in audio DSP with microphone mixing, echo cancellation, feedback suppression, and EQ
- Integrated NetLinx controller with full programmable control engine
- Scaler and analog-to-digital signal converter
- DXLink twisted pair transmitter for extended signal distribution
- Fast Ethernet interface with RJ-45 LAN port (10/100 Mbit/s)
- Three RS-232 ports and one RS-485 port for device control
- 2RU rack-mount chassis (432 mm W × 356 mm D × 132 mm H, 8260 g)
This B-Stock unit delivers the full feature set of AMX's flagship compact integration platform at a reduced price, making it an excellent choice for home studios, project studios, and professional recording facilities that require video matrix routing, embedded audio amplification, and networked control in a single integrated box.
This specific B-Stock unit features minor cosmetic imperfections including light scuffs and blemishes on the exterior housing. These marks are purely superficial and have absolutely zero impact on the switching functionality, video processing, audio amplification, or overall performance of the presentation switcher. As a B-Stock item, this all-in-one presentation solution delivers premium AV integration capabilities at a significant discount while maintaining one-year manufacturer warranty coverage.
More Information
| Condition | Refurbished |
|---|---|
| Country of Manufacture | Mexico |
Reviews
About this B-Stock unit
| Condition | Factory B-Stock direct from the manufacturer: open box, show or demo unit, or a minor cosmetic blemish. Fully tested. |
|---|---|
| Warranty | One-year manufacturer warranty |
| Ships from | The manufacturer's US warehouse, about 2 business days handling, tracking emailed when it leaves |
| Price vs new | $1,366 under the new unit ($6,832) |
Prefer a brand-new one? AMX DVX-2255HD-SP 6x3 All-In-One Presentation Switcher with 8 Ohms amplifier is in the catalog at $6,832.
At a Glance
The AMX DVX-2255HD-SP combines presentation-grade video switching with embedded audio processing and amplification, making it suitable for studio-based AV production, training-video recording, and webinar infrastructure where clean embedded audio DSP, parametric EQ, and speaker amplification support reliable multi-source capture and playback. Its built-in microphone mixing, echo cancellation, and feedback suppression streamline recording sessions that blend multiple inputs, while the integrated NetLinx controller enables automation of source selection and audio processing workflows. This B-Stock unit offers full-feature AV integration at a reduced price point with no impact on performance.
Who This Is For
| Best suited for | Conference room AV, Corporate presentations, Educational installations, Live event control, Rental operations |
|---|---|
| Tonal character | Integrated amplification, audio dsp-processed, feedback suppressed, parametric eq-shaped, compact 2x25w output |
| Less specialized for | Live music recording, Studio instrument tracking, Mobile DJ setups (it will do it; instruments voiced for that style do it more easily) |
| Skill level | Professional |
Frequently Asked Questions
What does B-Stock mean for this unit?
This factory B-Stock unit is fully functional, may show minor cosmetic marks, and comes with a one-year manufacturer warranty. The unit has minor cosmetic imperfections such as light scuffs and blemishes on the exterior housing that are purely superficial and do not affect switching, video processing, amplification, or performance.
Can this switcher drive passive speakers directly?
Yes. The integrated 2x25W stereo amplifier is rated for 8-ohm loads and can drive passive speakers without requiring an external amplifier module, simplifying installation and reducing rack space.
What audio processing is included?
The onboard audio DSP handles microphone mixing, echo cancellation, feedback suppression, and parametric EQ, allowing you to process and blend multiple audio sources within the switcher itself.
How many video inputs and outputs does it have?
The 6x3 HDMI matrix provides 6 video inputs (2 DVI-I, 2 HDMI, 2 DXLink) and 3 outputs with real-time scaling and analog-to-digital conversion. A DXLink twisted pair transmitter extends signal reach over longer cable runs.
Can this switcher control other devices in the system?
Yes. The embedded NetLinx programmable controller supports full system automation via three RS-232 ports and one RS-485 port for device control, plus a Fast Ethernet (10/100 Mbit/s) LAN interface for network integration.
