AMX DGX-AIE Enova DGX Audio Insert / Extract Board
Description

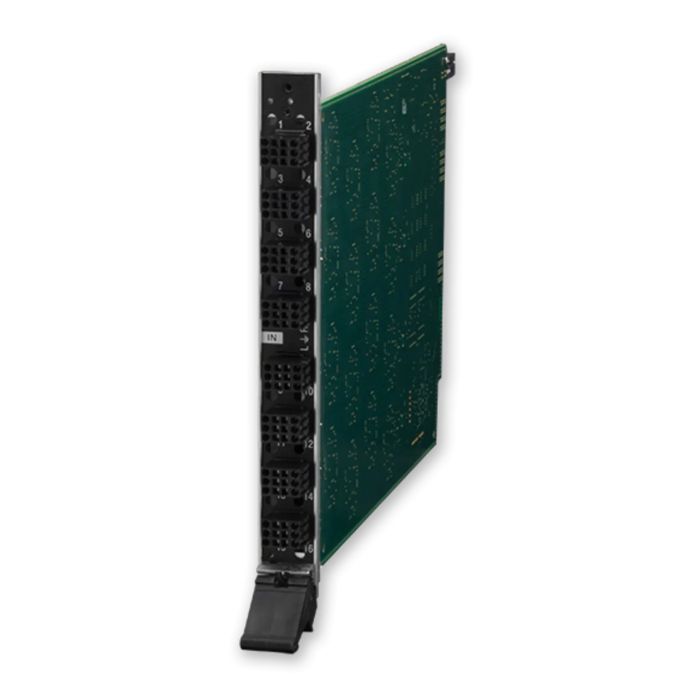

AMX DGX-AIE Enova DGX Audio Insert / Extract Board
The DGX-AIE is a professional-grade audio interface card engineered for capturing and routing analog stereo audio within Enova DGX digital media systems. This compact, modular board installs directly into compatible Enova DGX enclosures to deliver transparent audio insertion and extraction in studio-integrated AV setups, control rooms, and networked production environments where pristine audio routing is essential.
Audio Performance & Sonic Transparency
The board captures and extracts audio with exceptional clarity—less than 0.04% THD+N distortion and a signal-to-noise ratio exceeding 95 dB—preserving the integrity of every source during recording and playback. Audio connectivity uses 8 pluggable dual three-position terminal blocks (28–18 AWG rated) for both input and output, routing up to 16 channels of analog stereo audio per enclosure while supporting 2-channel L-PCM audio extraction for direct recording and mastering workflows.
Studio Integration & System Flexibility
The DGX-AIE operates at 24-bit, 48 kHz sample rate, meeting professional production standards for recording and mixing applications. Insert or extract access to the first 16 video input or output positions enables flexible session routing. Full compatibility with the Enova DGX 8, 16, 32, and 64 allows seamless integration across scaled studio and control room configurations.
Key Features
- Analog stereo audio support up to 16 channels per enclosure
- 24-bit, 48 kHz ADC for audio insertion and DAC for audio extraction
- Extracted audio THD+N less than 0.04%
- Signal-to-noise ratio greater than 95 dB
- Line-level analog stereo audio input and output
- 8 pluggable dual three-position terminal blocks (28–18 AWG)
- Compatible with Enova DGX 8, 16, 32, and 64 enclosures
- 2-channel L-PCM audio extraction support
- Access to first 16 video input or output positions
- Modular installation within Enova DGX chassis
The DGX-AIE delivers professional audio integration for recording and production workflows requiring low-distortion, high-resolution analog audio routing in compact, networked studio environments.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX-AIE provides transparent audio insertion and extraction at 24-bit/48 kHz within Enova DGX systems, ideal for recording studios and broadcast facilities that need to integrate analog audio sources into networked digital workflows. Studio owners and engineers will appreciate the ultra-low distortion (under 0.04% THD+N) and high signal-to-noise ratio (over 95 dB), ensuring clean, artifact-free audio capture and routing. Choose it when your studio infrastructure relies on AMX DGX digital matrix switching and you need professional-grade analog I/O without sonic degradation.
Who This Is For
Great for
- ✓ live sound installation
- ✓ conference/presentation systems
- ✓ fixed AV integration
- ✓ broadcast facilities
Not the best pick for
- – mobile/touring setups
- – consumer home audio
Skill level: Professional
Frequently Asked Questions
What audio formats and sample rates does the DGX-AIE support?
The board operates at 24-bit, 48 kHz for both analog-to-digital insertion (ADC) and digital-to-analog extraction (DAC), supporting 2-channel L-PCM audio extraction and up to 16 channels of analog stereo audio per enclosure.
Which Enova DGX enclosures is this card compatible with?
The DGX-AIE is fully compatible with Enova DGX 8, 16, 32, and 64 enclosures and provides insert or extract access to the first 16 video input or output positions.
What are the audio performance specifications?
Extracted audio delivers less than 0.04% THD+N and a signal-to-noise ratio exceeding 95 dB, ensuring high-fidelity, low-distortion performance suitable for critical listening and professional broadcast applications.
How does the DGX-AIE connect to analog audio sources and destinations?
The board features 8 pluggable dual three-position terminal blocks (rated 28–18 AWG) that provide line-level analog stereo input and output, allowing straightforward wiring of analog audio into and out of the Enova DGX system.
Is this card suitable for mobile or touring sound systems?
No; the DGX-AIE is designed specifically for fixed installations, command centers, conference systems, and integrated AV environments, not for mobile or touring setups.
