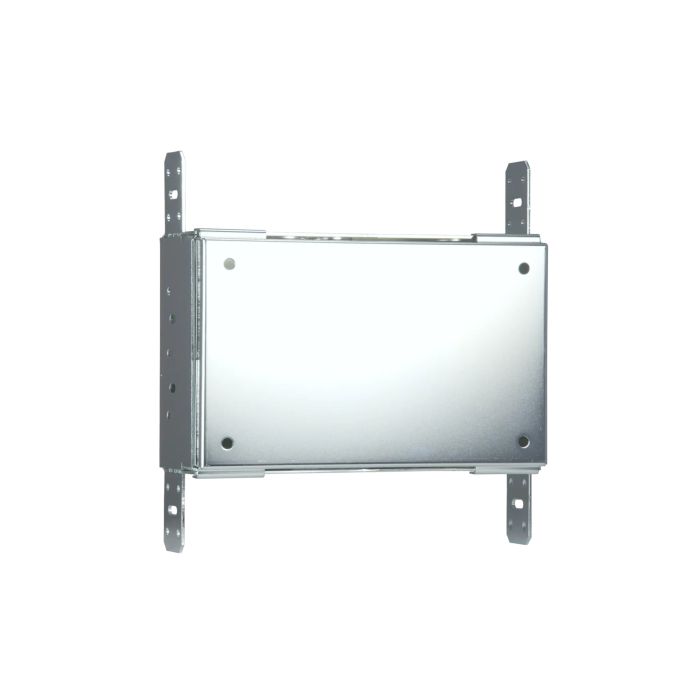

AMX CB-MXSA-07 Rough-in Box for 7" Touch Panels
Description
AMX CB-MXSA-07 Rough-in Box for 7" Touch Panels
The AMX CB-MXSA-07 is a professional-grade rough-in box engineered for flush-mount installation of control panels in new construction and retrofit applications. This enclosure provides a clean, integrated mounting solution that sits seamlessly within wall cavities, delivering the polished appearance expected in modern AV installations.
Installation & Compatibility
Designed for direct stud mounting during rough-in phases, this box accommodates AMX Modero X and S Series 7" wall mount touch panels and the AMX Acendo Book scheduling panel. The included wall box, cover, and mounting screws provide everything needed for standard drywall integration, with a minimum clearance requirement of 0.50 inches between the box and outer wall surface to ensure proper panel seating.
Dimensions & Physical Specifications
The enclosure measures 2.38" × 6.81" × 4.32" (6.05 cm × 17.30 cm × 10.97 cm) with cover installed, fitting cleanly into standard wall framing without requiring oversized cavities. This compact footprint maintains clean sightlines while housing the necessary wiring and infrastructure for professional control panel deployment.
Key Features
- Includes wall box, cover plate, and mounting hardware
- Compatible with AMX Modero X Series 7" touch panels
- Compatible with AMX Modero S Series 7" touch panels
- Compatible with AMX Acendo Book scheduling panel
- Designed for direct mounting to wall studs during rough-in phase
- Minimum 0.50" clearance requirement between box and outer wall surface
- Overall dimensions: 2.38" W × 6.81" H × 4.32" D with cover
- Professional-grade construction for commercial AV installations
The CB-MXSA-07 delivers reliable infrastructure for seamless touch panel integration in architectural control systems, backed by AMX's reputation for dependable AV infrastructure components.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX CB-MXSA-07 is a professional rough-in enclosure for flush-mounting 7" AMX touch control panels into walls, providing the hidden infrastructure that keeps studio control systems and monitoring setups looking clean and purpose-built. Home-studio owners and recording engineers use this for integrating control interfaces into custom studio builds or retrofit projects where appearance and cable management matter. Choose it for its compact footprint, complete hardware kit, and proven compatibility with AMX's industry-standard touch panels—a reliable, invisible foundation for studio automation and monitoring.
Frequently Asked Questions
What panels does the CB-MXSA-07 work with?
The box is compatible with AMX Modero X Series 7" touch panels, AMX Modero S Series 7" touch panels, and the AMX Acendo Book scheduling panel. It is designed specifically for these 7-inch control interfaces.
What's included in the box?
The kit includes the wall-mounted rough-in box, a cover plate, and all necessary mounting screws for stud installation. No additional hardware is required for standard drywall integration.
How much space do I need in the wall cavity?
The enclosure measures 2.38" W × 6.81" H × 4.32" D with cover installed and fits into standard wall framing without requiring oversized cavities. Maintain a minimum of 0.50 inches clearance between the box and the outer wall surface to ensure proper panel seating.
Is this suitable for new construction and retrofits?
Yes, the CB-MXSA-07 is engineered for both new construction rough-in phases and retrofit applications, with direct stud mounting designed for professional AV installations.
