What frequency range does the WMS470 operate on, and will it work in my venue?

The system operates on 570.1–600.5 MHz carrier frequency with 30.5 MHz switching bandwidth and space-diversity receiver architecture to minimize dropouts across typical venue RF environments. Confirm your local frequency allocations with your audio team or venue technical staff before purchase, as wireless allocations vary by region.

How long does the battery last per set?

The HT470 transmitter runs 14 hours on a single AA-size lithium battery, so a typical 2–3 hour performance night requires no battery swap. The system includes one spare AA battery and universal power supply in the box.

What capsule is on the microphone, and how does it handle feedback on loud stages?

The HT470 handheld transmitter uses a dynamic D5 vocal capsule engineered for consistent rejection of ambient stage noise while maintaining clarity across the full vocal range. Dynamic capsules naturally reduce feedback and feedback risk compared to condenser designs on loud stages.

What outputs does the receiver have, and how do I connect it to my mixer?

The SR470 receiver provides both microphone-level and line-level outputs, so you can route the signal directly to a compact mixer or full-scale FOH console depending on your setup. Dual outputs give you routing flexibility without external converters.

What comes in the box?

The complete set includes SR470 space-diversity receiver, HT470 handheld transmitter with D5 capsule, stand adapter, rack mount kit, universal power supply with multi-region adapters, one AA lithium battery, and two antennas.

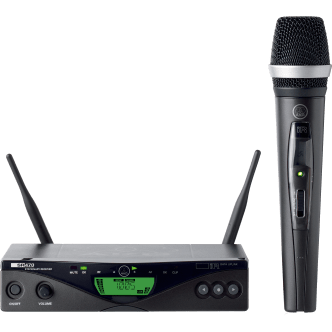

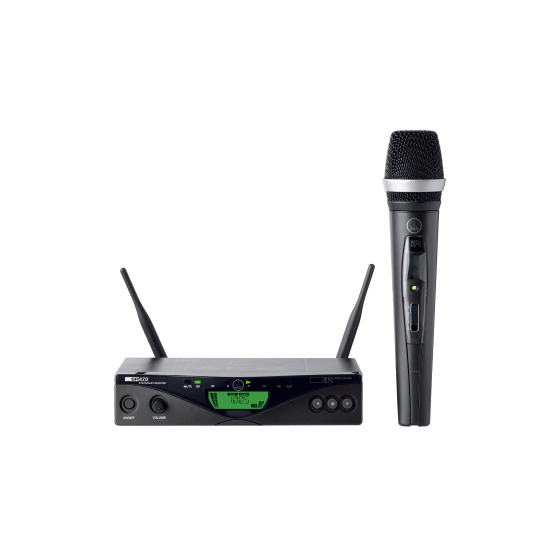

AKG WMS470 D5 VOCAL SET BD8 - Professional Wireless Microphone System

The AKG WMS470 D5 is a reliable wireless vocal system engineered for studio sessions, remote recording, and multi-room production setups. The HT470 handheld transmitter equipped with its dynamic D5 capsule captures vocal performances with consistent proximity presence and rejection of ambient room noise, maintaining clarity and definition across the full vocal range. This is a dependable rig built for tracking takes, overdubs, and vocal comping without dropouts or signal compromise.

Wireless Performance & Stability

Operating in the 570.1–600.5 MHz carrier frequency range with 30.5 MHz switching bandwidth, the system maintains stable RF performance across studio and control room environments. The SR470 space diversity receiver architecture minimizes dropouts and dead zones, a critical feature for capturing uninterrupted vocal performances during tracking sessions and keeping takes usable.

Audio Quality & Integration

The system delivers 120 dB-A signal-to-noise ratio with 35–20,000 Hz audio bandwidth, capturing the full range of vocal articulation, detail, and nuance for mixing and post-production. Dual output options—microphone level and line level from the receiver—route seamlessly into audio interfaces, mixing consoles, and recording software, whether building a compact home-studio setup or integrating into a larger production environment.

Key Features

SR470 space diversity receiver with microphone and line level outputs
HT470 handheld transmitter with dynamic D5 vocal capsule
Carrier frequency range: 570.1–600.5 MHz
30.5 MHz switching bandwidth
FM frequency modulation
120 dB-A signal-to-noise ratio
Audio bandwidth: 35–20,000 Hz
14 hours operation per single AA-size lithium battery
Includes SR470 receiver, HT470 transmitter, stand adapter, rack mount kit, universal power supply with multi-region adapters, AA battery, and 2 antennas

Complete with receiver, transmitter, mounting hardware, power supply, and spare battery, the WMS470 D5 delivers professional wireless vocal capture ready for immediate studio deployment.
